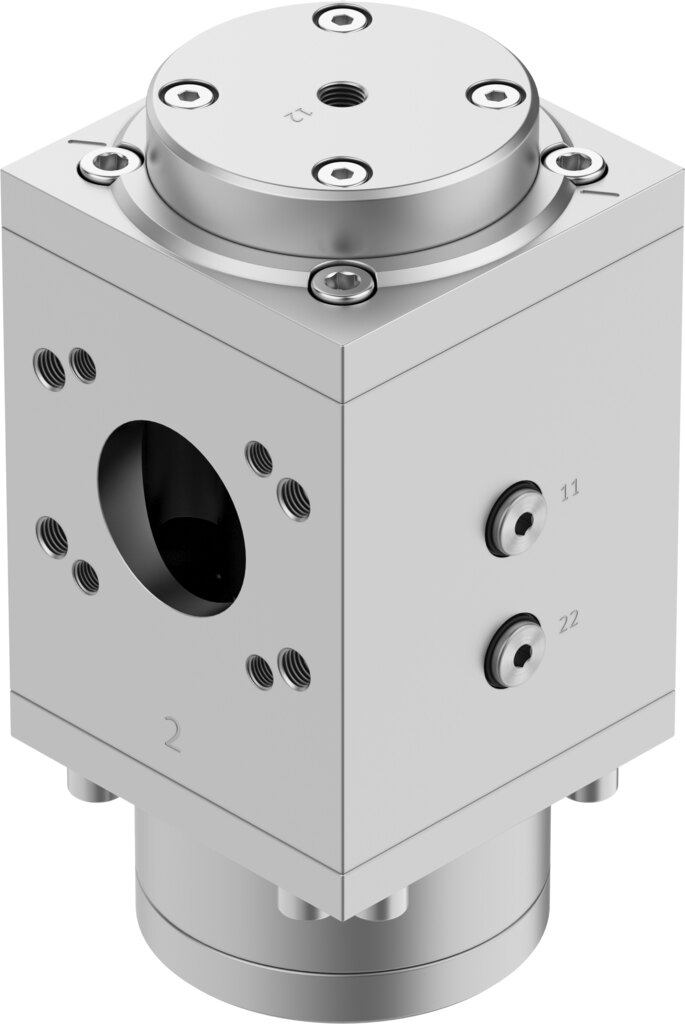

On-off valve for the compressed air supply, G1/2, 3/2-way, up to 42 bar PVEL-P-124-HP7 - Festo 1629205
The PVEL-P-124-HP7 on-off valve supplies the system with compressed air or exhausts it as required. Datasheet values: port G1/2, operating pressure 0 to 42 bar, valve function 3/2-way, single solenoid, closed and housing made of wrought aluminium alloy.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PVEL-P-124-HP7 on-off valve supplies the system with compressed air or exhausts it as required. Decisive for selection: port G1/2 and operating pressure 0 to 42 bar.
Benefits
- Rated for an operating pressure of 0 to 42 bar
- Port thread G1/2
- Valve function 3/2-way, single solenoid, closed
- Suitable for ambient temperatures of 5 to 50 °C
- PWIS conformity VDMA24364 zone III
- CRC 2: designed for moderate corrosion stress
Application
It is installed in the service unit upstream of the consumers. The PVEL-P-124-HP7 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases.
Technical data
| Type | PVEL-P-124-HP7 |
|---|---|
| Festo part number | 1629205 |
| Series | L |
| Nominal size DN | 54 |
| Design | piston spool |
| Actuation type | pneumatic |
| Sealing principle | soft |
| Exhaust function | not throttleable |
| Reset method | mechanical spring |
| Pilot type | direct |
| Valve function | 3/2-way, single solenoid, closed |
| Operating pressure | 0 to 42 bar |
| Pilot pressure | 9 to 42 bar |
| Overlap | negative overlap |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | lubricated operation possible (then required for further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| Note on materials | RoHS-compliant |
| PWIS conformity | VDMA24364 zone III |
| Medium temperature | 5 to 50 °C |
| Ambient temperature | 5 to 50 °C |
| CE marking (see declaration of conformity) | in accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Food suitability | see supplementary material information |
| Mounting position | any |
| Product weight | 7250 g |
| Pneumatic port 3 | G1/2 |
| Pilot air port 12 | G1/4 |
| Pilot air supply | external |
| Piston spool material | wrought aluminium alloy |
| Housing material | wrought aluminium alloy |
| Weight | 7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PVEL-P-124-HP7 |
| EAN | 4052568263638 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/2 |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Betriebsdruck max [bar] | 42 |
| Temperature (max.) | 50 |
