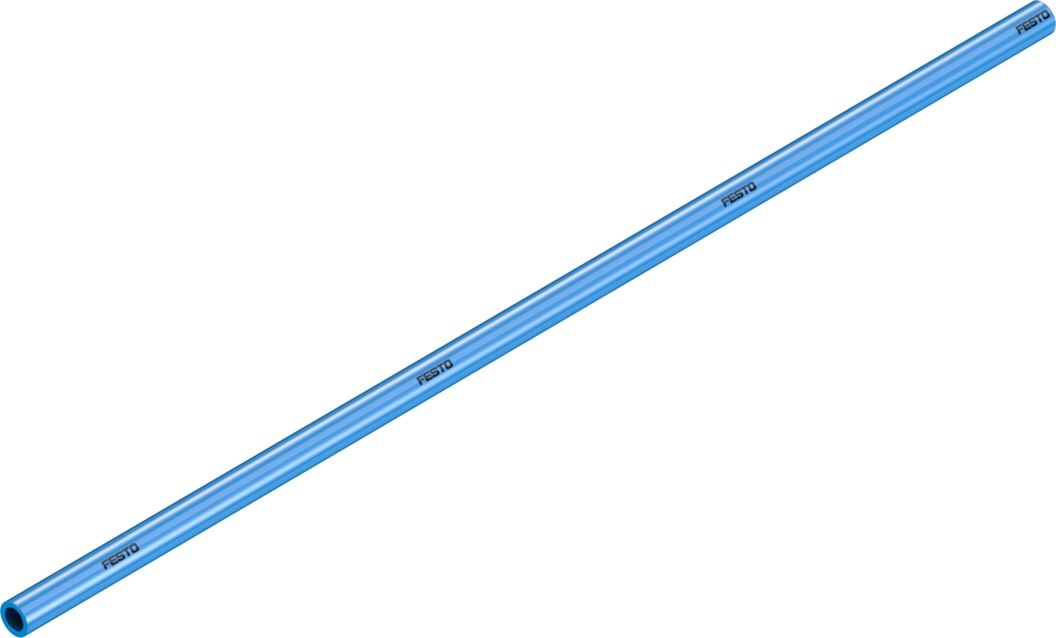

Plastic tubing PUN-V0-6X2-BL-C - Festo 561702
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Outside diameter | 6 mm |
|---|---|
| Flow-relevant bending radius | 24 mm |
| Inside diameter | 2 mm |
| Min. bending radius | 7 mm |
| Tubing characteristics | Suitable for energy chains |
| Operating pressure complete temperature range | -0.95 ... 16 bar |
| Temperature-dependent operating pressure | -0.95 ... 30 bar |
| Note on operating pressure | For applications with welding spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C, Water: max. 0.6 MPa at max. 50°C |
| Approval | German Technical Control Board (TÜV) |
| Certificate issuing authority | B 013277 0527 00 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Fire test material | UL94 V-0 (3mm), UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 ... 60 °C |
| Note on ambient temperature | For unpressurised use up to 90 °C |
| Product weight according to length | 0.032 kg/m |
| Pneumatic connection | For push-in connector O.D. 6 mm, For barbed fitting inside diameter of 2 mm |
| Colour | Blue |
| Note to colour | Deviates from the standard colour due to flame protection |
| Shore hardness | D 54 +/-3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.034 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-V0-6X2-BL-C |
| EAN | 4052568056407 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
