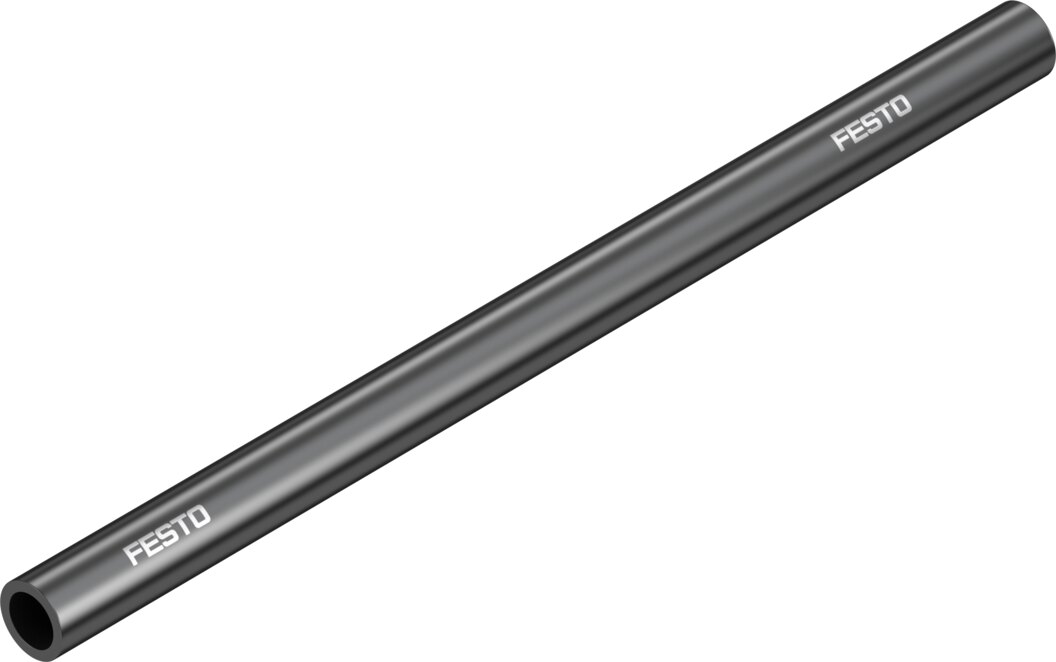

Plastic tubing PUN-V0-14X2-SW-C - Festo 570351
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Outside diameter | 14 mm |
|---|---|
| Flow-relevant bending radius | 70 mm |
| Inside diameter | 9.8 mm |
| Min. bending radius | 45 mm |
| Tubing characteristics | Suitable for energy chains |
| Operating pressure complete temperature range | -0.95 ... 6 bar |
| Temperature-dependent operating pressure | -0.95 ... 9 bar |
| Note on operating pressure | Water: max. 0.6 MPa at max. 50°C |
| Approval | German Technical Control Board (TÜV) |
| Certificate issuing authority | B 013277 0527 00 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Fire test material | UL94 V-0 (3mm), UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 ... 60 °C |
| Note on ambient temperature | For unpressurised use up to 90 °C |
| Product weight according to length | 0.096 kg/m |
| Pneumatic connection | For push-in connector outer diameter of 14 mm |
| Colour | Black |
| Note to colour | Deviates from the standard colour due to flame protection |
| Shore hardness | D 54 +/-3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.115 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-V0-14X2-SW-C |
| EAN | 4052568058166 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
