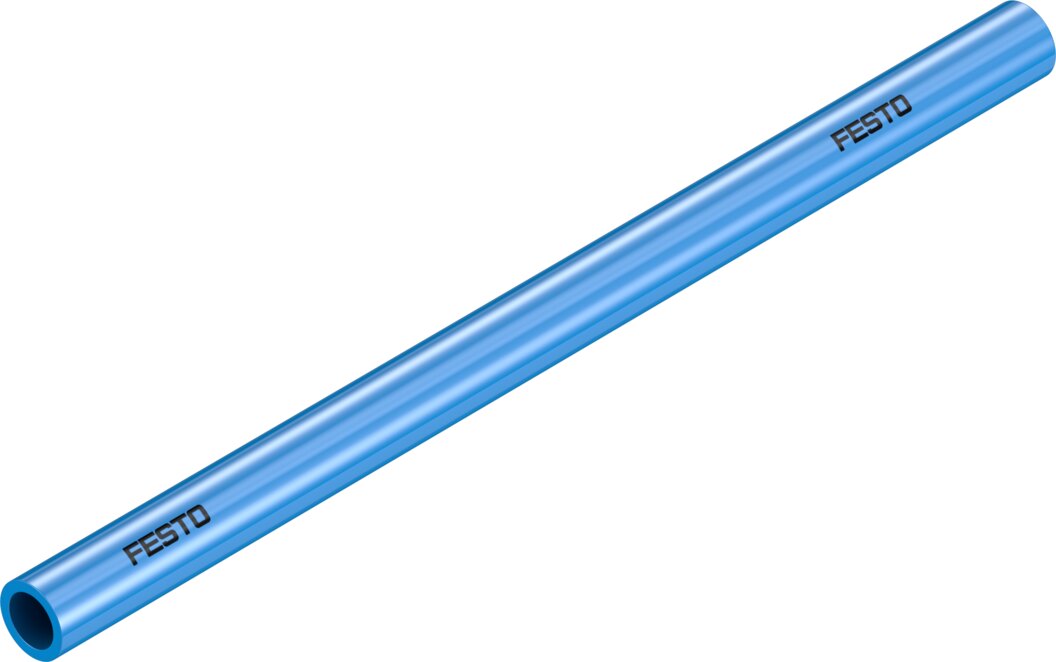

Plastic tubing PU 14 x 9.8 mm UL94 V-0/V-2 blue PUN-V0-14X2-BL-C - Festo 570352

Festo ✓ Original product Brand new

Pneumatic tubing PUN-V0-14X2-BL-C in polyurethane, OD 14 mm, ID 9.8 mm. Operating pressure -0.95 to 9 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 45 mm and ambient -35 to 60 °C. Fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm).

Net
€11.29
excl. VAT
Item FES-570352
Manufacturer no. PUN-V0-14X2-BL-C
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 14 mm outside diameter, the PUN-V0-14X2-BL-C fits standard push-in fittings of this size. Connection: for push-in connector outer diameter of 14 mm.

Benefits

  • Operating pressure -0.95 to 9 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 45 mm, flow-relevant 70 mm
  • Suitable for energy chains, Shore hardness D 54 ± 3
  • Material fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm)
  • Ambient temperature -35 to 60 °C

Applications

Operating medium compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-V0-14X2-BL-C
Festo part number570352
Outside diameter14 mm
Flow-relevant bending radius70 mm
Inside diameter9.8 mm
Minimum bending radius45 mm
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 9 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 V-0 (3mm), UL94 V-2 (0.75mm)
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-35 to 60 °C
Note on ambient temperatureFor unpressurised use up to 90 °C
Product weight according to length0.096 kg/m
Pneumatic connectionFor push-in connector outer diameter of 14 mm
ColourBlue
Note to colourDeviates from the standard colour due to flame protection
Shore hardnessD 54 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.12 kg
ManufacturerFesto
Hersteller-NrPUN-V0-14X2-BL-C
EAN4052568058173
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbeblau
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]14
Schlauchdurchmesser (außen x innen) [mm]14 x 9,8
Schlauchdurchmesser (innen) [mm]9,8
min. Biegeradius [mm]45
Betriebsdruck max [bar]9
Temperaturbereich-35-60 °C
