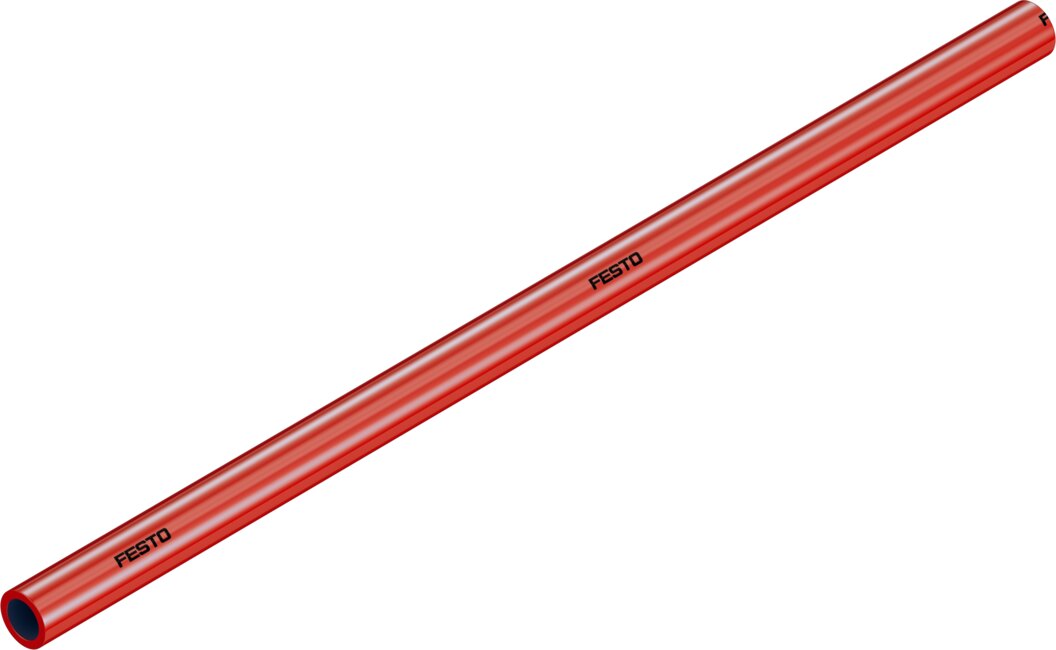

Plastic tubing PU 10 x 7 mm UL94 V-0/V-2 red PUN-V0-10X1,5-RT - Festo 525452

Festo ✓ Original product Brand new

Plastic tubing with 10 mm outside and 7 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 7 bar across the full temperature range, bending radius from 20 mm and ambient -35 to 60 °C. Fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm).

Net
€6.95
excl. VAT
Item FES-525452
Manufacturer no. PUN-V0-10X1,5-RT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The plastic tubing PUN-V0-10X1,5-RT carries compressed air and water between valves, cylinders and service units.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 7 bar across the full temperature range
  • Minimum bending radius 20 mm, flow-relevant 54 mm
  • Suitable for energy chains, Shore hardness D 54 ± 3
  • Material fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm)
  • Ambient temperature -35 to 60 °C

Applications

Medium: compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-V0-10X1,5-RT
Festo part number525452
Outside diameter10 mm
Flow-relevant bending radius54 mm
Inside diameter7 mm
Minimum bending radius20 mm
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 7 bar
Temperature-dependent operating pressure-0.95 to 10 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 V-0 (3mm), UL94 V-2 (0.75mm)
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-35 to 60 °C
Note on ambient temperatureFor unpressurised use up to 90 °C
Product weight according to length0.051 kg/m
ColourRed
Note to colourDeviates from the standard colour due to flame protection
Shore hardnessD 54 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.06 kg
ManufacturerFesto
Hersteller-NrPUN-V0-10X1,5-RT
EAN4052568046101
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farberot
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]10
Schlauchdurchmesser (außen x innen) [mm]10 x 7
Schlauchdurchmesser (innen) [mm]7
min. Biegeradius [mm]20
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
