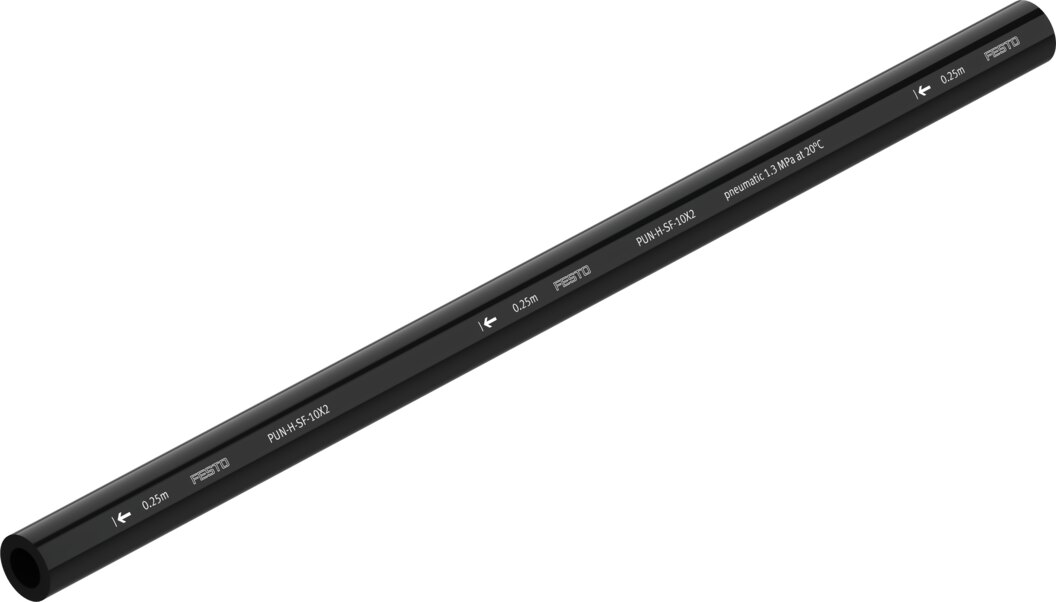

Plastic tubing PU 10 x 6 mm ether-based black PUN-H-SF-10X2-SW - Festo 8167905

Festo ✓ Original product Brand new

Plastic tubing with 10 mm outside and 6 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 13 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 15 mm and ambient -35 to 80 °C. Suitable for energy chains.

Net
€3.94
excl. VAT
Item FES-8167905
Manufacturer no. PUN-H-SF-10X2-SW
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The PUN-H-SF-10X2-SW is a plastic tubing in polyurethane with 10 mm outside diameter.

Benefits

  • Operating pressure -0.95 to 13 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 15 mm, flow-relevant 38 mm
  • Suitable for energy chains, Shore hardness D 54 ± 3
  • Material fire behaviour UL94 HB
  • Ambient temperature -35 to 80 °C

Applications

Permitted media: compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-H-SF-10X2-SW
Festo part number8167905
Outside diameter10 mm
Flow-relevant bending radius38 mm
Inside diameter6 mm
Minimum bending radius15 mm
Instructions on useTPE-U, ether-based
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 13 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with foodSee supplementary material information
Ambient temperature-35 to 80 °C
Product weight according to length0.061 kg/m
ColourBlack
Shore hardnessD 54 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.06 kg
ManufacturerFesto
Hersteller-NrPUN-H-SF-10X2-SW
EAN4052568623524
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbeschwarz
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]10
Schlauchdurchmesser (außen x innen) [mm]10 x 6
Schlauchdurchmesser (innen) [mm]6
min. Biegeradius [mm]15
Betriebsdruck max [bar]13
