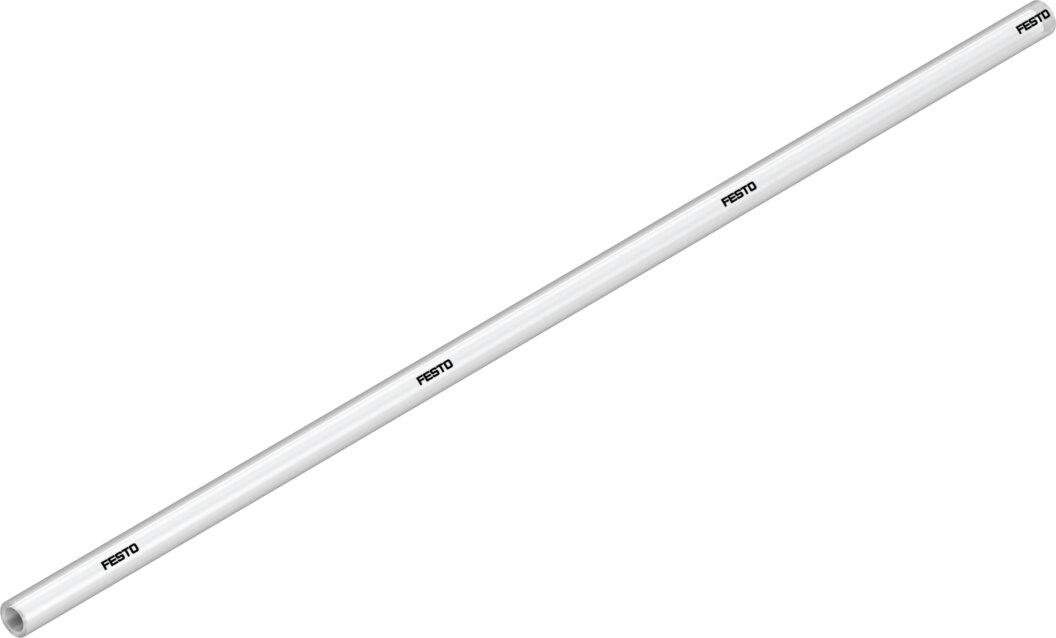

Plastic tubing PU 6 x 4 mm ether-based natural PUN-H-6X1-NT - Festo 197377

Festo ✓ Original product Brand new

Polyurethane tubing 6 x 4 mm for push-in fittings with 6 mm outside diameter. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 10 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€1.01
excl. VAT
Item FES-197377
Manufacturer no. PUN-H-6X1-NT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The plastic tubing PUN-H-6X1-NT carries compressed air and water between valves, cylinders and service units.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 10 mm, flow-relevant 26 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Material fire behaviour UL94 HB
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

Permitted media: compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-H-6X1-NT
Festo part number197377
Outside diameter6 mm
Flow-relevant bending radius26 mm
Inside diameter4 mm
Minimum bending radius10 mm
Instructions on useTPE-U, ether-based
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 10 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with foodSee supplementary material information
Ambient temperature-35 to 60 °C
Product weight according to length0.0183 kg/m
ColourNatural
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.023 kg
ManufacturerFesto
Hersteller-NrPUN-H-6X1-NT
EAN4052568045067
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbenatur
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]6
Schlauchdurchmesser (außen x innen) [mm]6 x 4
Schlauchdurchmesser (innen) [mm]4
min. Biegeradius [mm]10
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
