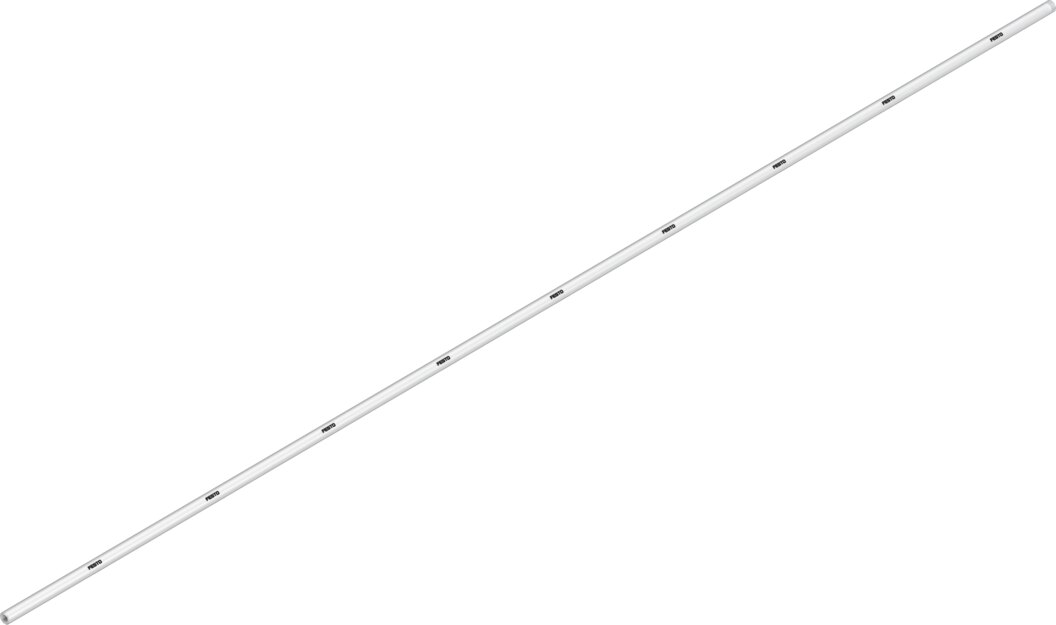

Plastic tubing PU 2 x 1.2 mm ether-based natural PUN-H-2X0,4-NT - Festo 133038
Polyurethane tubing 2 x 1.2 mm for push-in fittings with 2 mm outside diameter. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 5 mm and ambient -35 to 60 °C. Suitable for energy chains.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Plastic tubing in polyurethane for compressed air distribution, OD 2 mm, ID 1.2 mm.
Benefits
- Operating pressure -0.95 to 10 bar (temperature-dependent)
- -0.95 to 6 bar across the full temperature range
- Minimum bending radius 5 mm, flow-relevant 8 mm
- Suitable for energy chains, Shore hardness D 52 ± 3
- Ambient temperature -35 to 60 °C
Applications
Operating medium compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.
Technical data
| Feature | Value |
|---|---|
| Type | PUN-H-2X0,4-NT |
| Festo part number | 133038 |
| Outside diameter | 2 mm |
| Flow-relevant bending radius | 8 mm |
| Inside diameter | 1.2 mm |
| Minimum bending radius | 5 mm |
| Instructions on use | TPE-U, ether-based |
| Tubing characteristics | suitable for energy chains |
| Operating pressure complete temperature range | -0.95 to 6 bar |
| Temperature-dependent operating pressure | -0.95 to 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -35 to 60 °C |
| Product weight according to length | 0.0024 kg/m |
| Colour | Natural |
| Shore hardness | D 52 ± 3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.003 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-H-2X0,4-NT |
| EAN | 4052568029210 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Farbe | natur |
| Material | Polyurethan |
| Medium | Compressed air |
| Schlauchdurchmesser (außen) [mm] | 2 |
| Schlauchdurchmesser (außen x innen) [mm] | 2 x 1,2 |
| Schlauchdurchmesser (innen) [mm] | 1,2 |
| min. Biegeradius [mm] | 5 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -35-60 °C |
