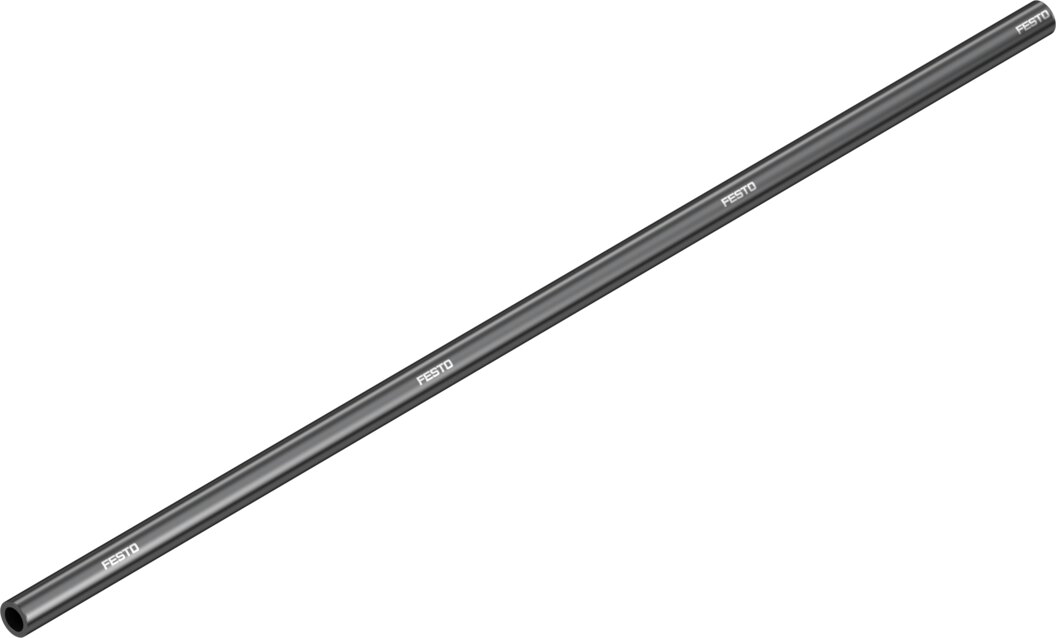

Plastic tubing PU 6 x 4 mm surface resistance 0.01 to 10 MOhm black PUN-CM-6-SW - Festo 188883

Festo ✓ Original product Brand new

Pneumatic tubing PUN-CM-6-SW in polyurethane, OD 6 mm, ID 4 mm. Operating pressure -0.95 to 10 bar, bending radius from 14 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€3.62
excl. VAT
Item FES-188883
Manufacturer no. PUN-CM-6-SW
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The PUN-CM-6-SW is a plastic tubing in polyurethane with 6 mm outside diameter.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • Minimum bending radius 14 mm, flow-relevant 28 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Surface resistance 0.01 to 10 MOhm
  • Ambient temperature -35 to 60 °C

Applications

Permitted media: compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-CM-6-SW
Festo part number188883
Outside diameter6 mm
Flow-relevant bending radius28 mm
Inside diameter4 mm
Minimum bending radius14 mm
Tubing characteristicssuitable for energy chains
Temperature-dependent operating pressure-0.95 to 10 bar
Surface resistance0.01 to 10 MOhm
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-35 to 60 °C
Product weight according to length0.02125 kg/m
ColourBlack
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.023 kg
ManufacturerFesto
Hersteller-NrPUN-CM-6-SW
EAN4052568041502
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbeschwarz
MaterialPolyurethan
MediumCompressed air
Schlauchdurchmesser (außen) [mm]6
Schlauchdurchmesser (außen x innen) [mm]6 x 4
Schlauchdurchmesser (innen) [mm]4
min. Biegeradius [mm]14
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
