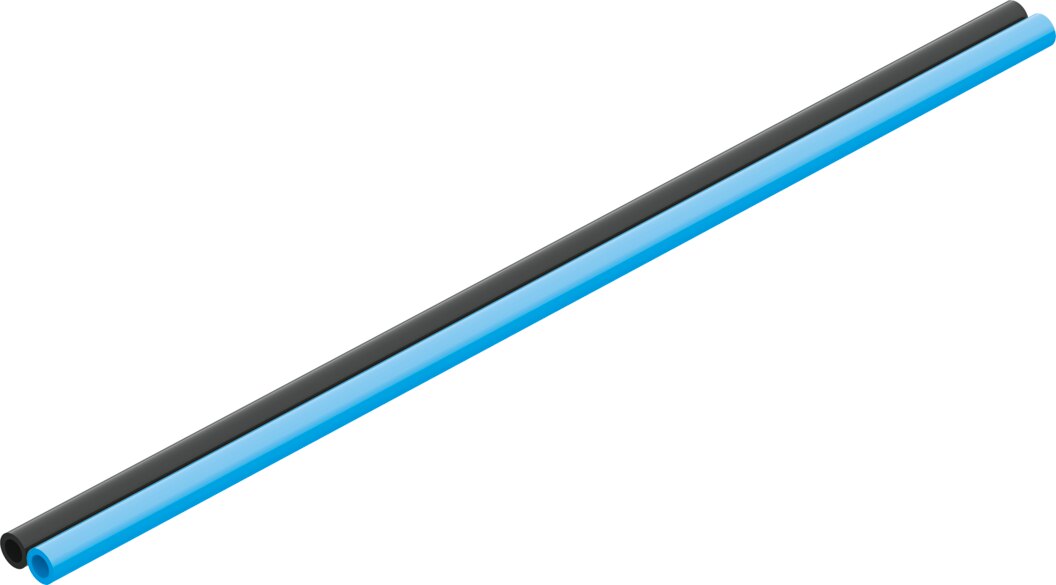

DUO plastic tubing PU 6 x 4 mm blue/black PUN-6X1-DUO-BS - Festo 159675
DUO plastic tubing with 6 mm outside and 4 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 7 bar across the full temperature range, bending radius from 16 mm and ambient -35 to 60 °C. Suitable for energy chains.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The duo plastic tubing PUN-6X1-DUO-BS carries compressed air between valves, cylinders and service units.
Benefits
- Operating pressure -0.95 to 10 bar (temperature-dependent)
- -0.95 to 7 bar across the full temperature range
- Minimum bending radius 16 mm, flow-relevant 26.5 mm
- Suitable for energy chains, Shore hardness D 52 ± 3
- Material fire behaviour UL94 HB
- Ambient temperature -35 to 60 °C
Applications
Operating medium compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.
Technical data
| Feature | Value |
|---|---|
| Type | PUN-6X1-DUO-BS |
| Festo part number | 159675 |
| Outside diameter | 6 mm |
| Flow-relevant bending radius | 26.5 mm |
| Inside diameter | 4 mm |
| Minimum bending radius | 16 mm |
| Tubing characteristics | suitable for energy chains |
| Operating pressure complete temperature range | -0.95 to 7 bar |
| Temperature-dependent operating pressure | -0.95 to 10 bar |
| Approval | TÜV |
| Certificate issuing authority | B 013277 0527 00 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Fire test material | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 to 60 °C |
| Product weight according to length | 0.0384 kg/m |
| Colour | Blue/black |
| Shore hardness | D 52 ± 3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.045 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-6X1-DUO-BS |
| EAN | 4052568035440 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Farbe | blau/schwarz |
| Material | Polyurethan |
| Medium | Compressed air |
| Schlauchdurchmesser (außen) [mm] | 6 |
| Schlauchdurchmesser (außen x innen) [mm] | 6 x 4 |
| Schlauchdurchmesser (innen) [mm] | 4 |
| min. Biegeradius [mm] | 16 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -35-60 °C |
