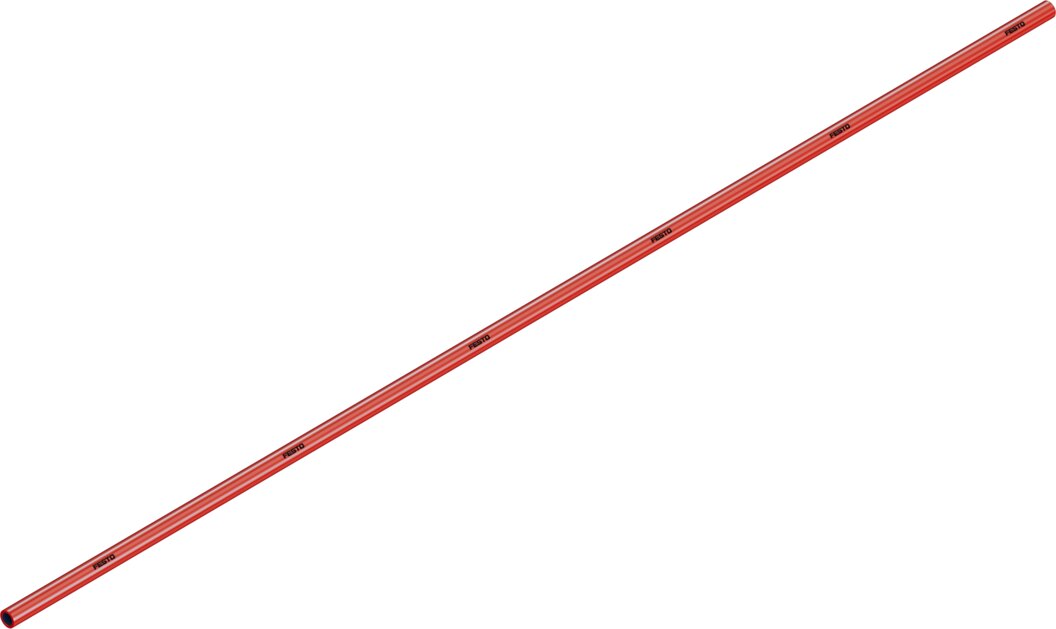

Plastic tubing PU 3 x 2.1 mm red PUN-3X0,5-RT - Festo 178409

Festo ✓ Original product Brand new

Polyurethane tubing 3 x 2.1 mm for push-in fittings with 3 mm outside diameter. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 7 bar across the full temperature range, bending radius from 9 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€0.77
excl. VAT
Item FES-178409
Manufacturer no. PUN-3X0,5-RT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Plastic tubing in polyurethane for compressed air distribution, OD 3 mm, ID 2.1 mm. Connection: for push-in connector outside diameter of 3 mm, For barbed fitting inside diameter of 2 mm.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 7 bar across the full temperature range
  • Minimum bending radius 9 mm, flow-relevant 12 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Material fire behaviour UL94 HB
  • Ambient temperature -35 to 60 °C

Applications

Operating medium compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-3X0,5-RT
Festo part number178409
Outside diameter3 mm
Flow-relevant bending radius12 mm
Inside diameter2.1 mm
Minimum bending radius9 mm
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 7 bar
Temperature-dependent operating pressure-0.95 to 10 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-35 to 60 °C
Product weight according to length0.0044 kg/m
Pneumatic connectionFor push-in connector outside diameter of 3 mm, For barbed fitting inside diameter of 2 mm
ColourRed
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.007 kg
ManufacturerFesto
Hersteller-NrPUN-3X0,5-RT
EAN4052568038755
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farberot
MaterialPolyurethan
MediumCompressed air
Schlauchdurchmesser (außen) [mm]3
Schlauchdurchmesser (außen x innen) [mm]3 x 2,1
Schlauchdurchmesser (innen) [mm]2,1
min. Biegeradius [mm]9
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
