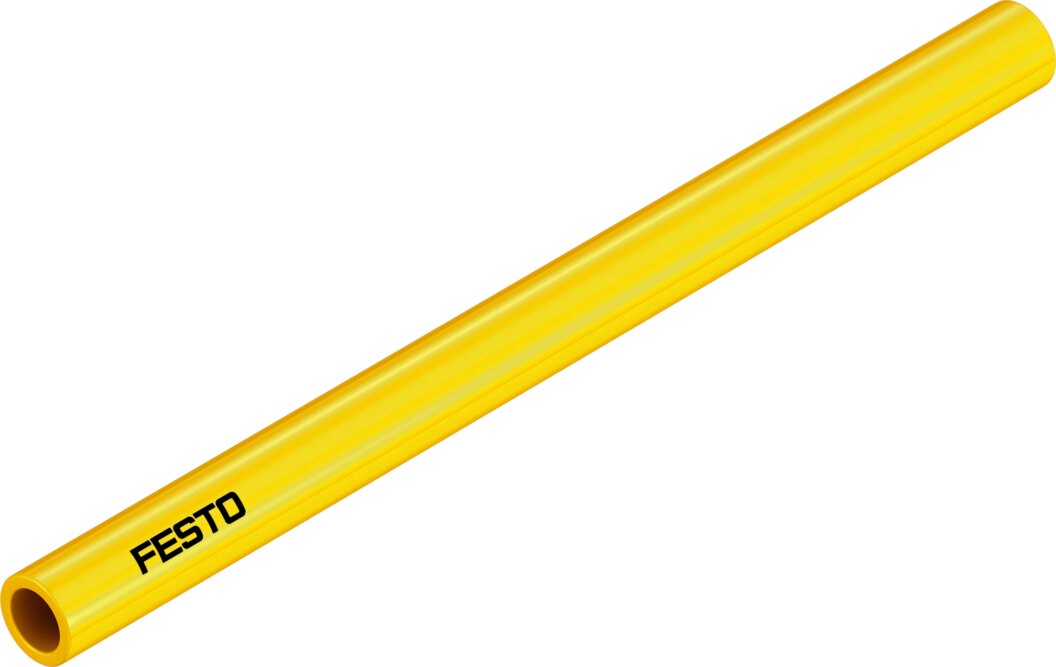

Plastic tubing PU 16 x 11 mm yellow PUN-16X2,5-GE - Festo 178422

Festo ✓ Original product Brand new

Plastic tubing with 16 mm outside and 11 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 7 bar across the full temperature range, bending radius from 45 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€6.79
excl. VAT
Item FES-178422
Manufacturer no. PUN-16X2,5-GE
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The plastic tubing PUN-16X2,5-GE carries compressed air between valves, cylinders and service units.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 7 bar across the full temperature range
  • Minimum bending radius 45 mm, flow-relevant 88 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Material fire behaviour UL94 HB
  • Ambient temperature -35 to 60 °C

Applications

Operating medium compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-16X2,5-GE
Festo part number178422
Outside diameter16 mm
Flow-relevant bending radius88 mm
Inside diameter11 mm
Minimum bending radius45 mm
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 7 bar
Temperature-dependent operating pressure-0.95 to 10 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-35 to 60 °C
Product weight according to length0.1294 kg/m
ColourYellow
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.155 kg
ManufacturerFesto
Hersteller-NrPUN-16X2,5-GE
EAN4052568038885
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbegelb
MaterialPolyurethan
MediumCompressed air
Schlauchdurchmesser (außen) [mm]16
Schlauchdurchmesser (außen x innen) [mm]16 x 11
Schlauchdurchmesser (innen) [mm]11
min. Biegeradius [mm]45
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
