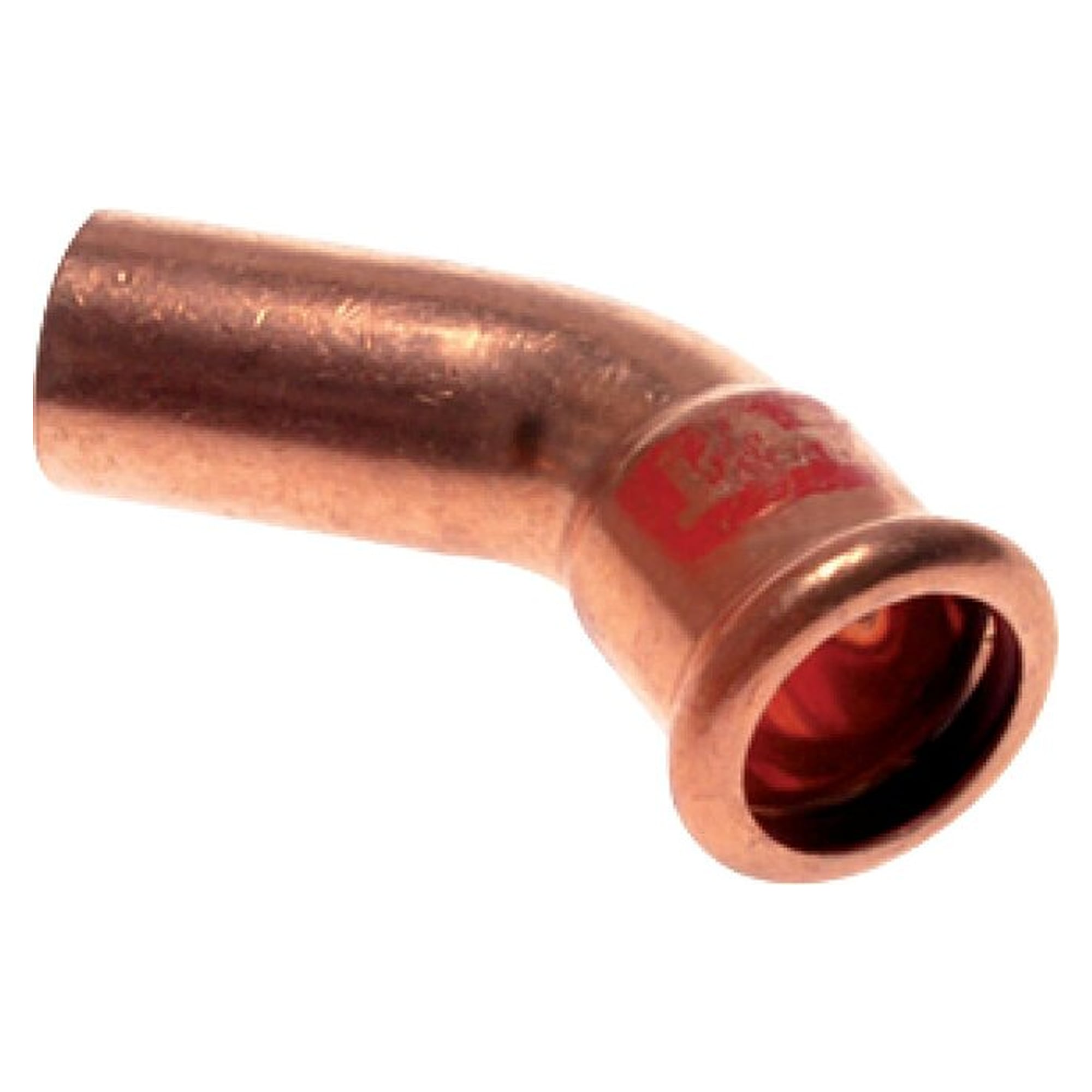

45 degree press fitting bend, tube 54 mm, nipple 54 mm, copper and copper alloy

This 45 degree press fitting bend joins a tube of 54 mm outside diameter and a nipple of 54 mm diameter in one part. The material is copper and copper alloy, the size is fixed at tube diameter 54 mm. The 45 degree design continues the line at an angle and avoids tight bends.

Benefits

• With tube diameter 54 mm the size is fixed, so no reworking of the line is required
• The change of direction by 45 degrees saves installation length ahead of the port
• The installation dimensions a of 70 mm and z of 27 mm are stated
• The press joint is made in a single operation without an open flame
• The size 54 is clearly assigned and stays available for reordering

Technical data

Applications

Compressed air networks in workshop and hall, water and cooling circuits, cooling and heating water lines, thermal solar systems with glycol mixture.

Standards and conformity

The fitting is intended for commercial copper tube to EN 1057. Pressing is done with jaws of the SA, M and V press profiles.
