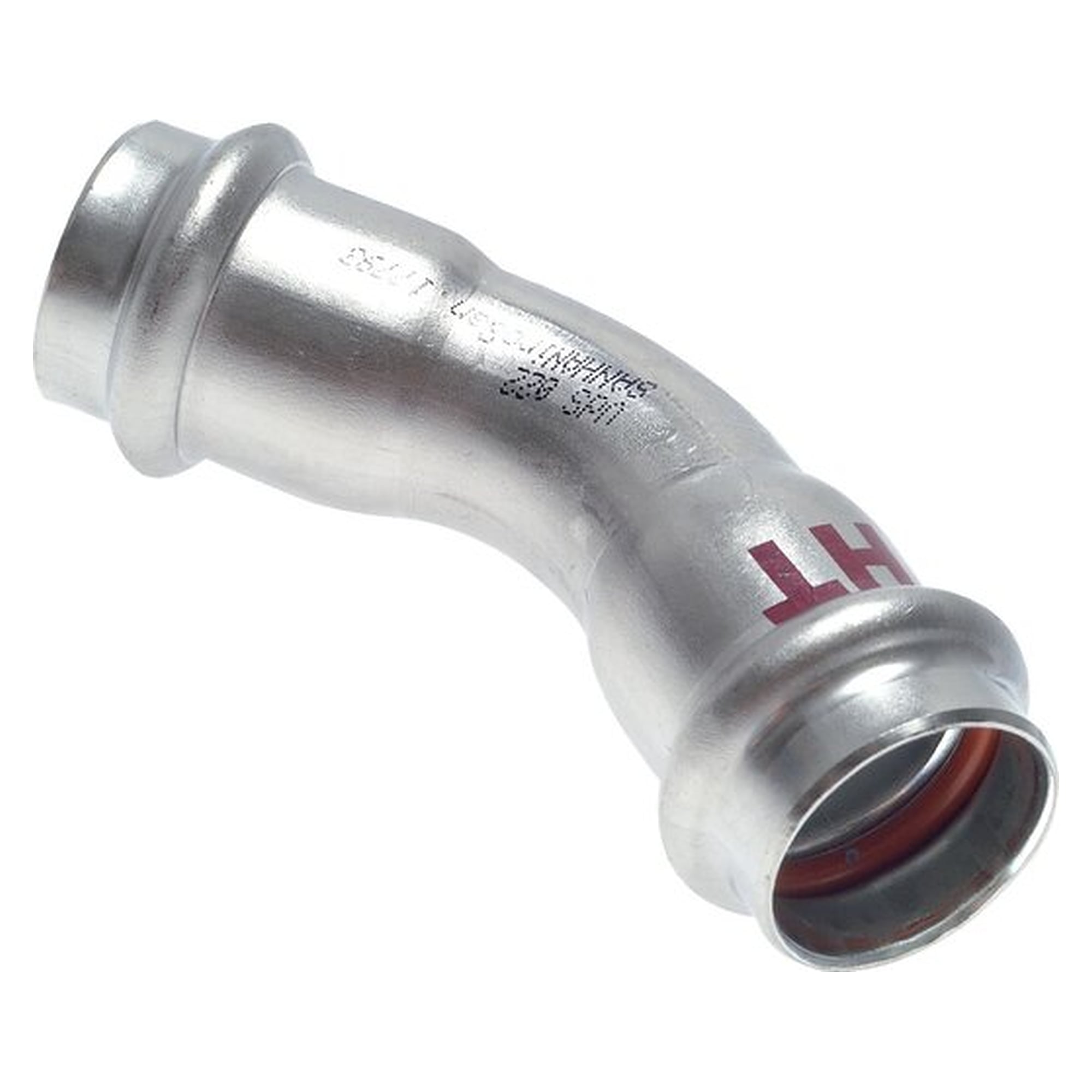

45 degree press fitting bend, pipe 28 mm, stainless steel 1.4404

This 45 degree press fitting bend is designed for a pipe of 28 mm outside diameter and the continuing line. The part is pressed permanently with the jaw in a single operation. The material is stainless steel 1.4404, the size is fixed at pipe diameter 28 mm. The 45 degree design continues the line at an angle and avoids tight bends.

Benefits

• The change of direction by 45 degrees saves installation length ahead of the port
• The installation dimensions a of 53 mm and z of 24 mm are stated
• The press joint is made in a single operation without an open flame
• The size 28 is clearly assigned and stays available for reordering
• With pipe diameter 28 mm the size is fixed, so no reworking of the line is required

Technical data

Applications

Water and cooling circuits, cooling and heating water lines, thermal solar systems with glycol mixture, refurbishment of existing pipe networks.

Standards and conformity

Pressing is done with jaws of the SA, M and V press profiles.
