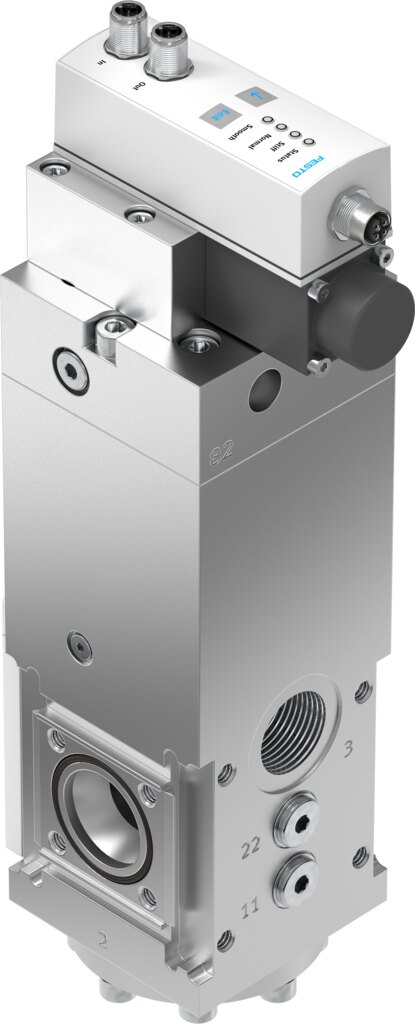

Electrical pressure regulator 0.5 to 20 bar, G1, setpoint 4-20 mA PREL-90-HP3-A4-A-20CFX-S1-2 - Festo 1709130
Using an analogue 4 - 20 mA signal, the electrical pressure regulator PREL-90-HP3-A4-A-20CFX-S1-2 sets the output pressure within 0.5 to 20 bar. Supply pressure compensation keeps the output stable. Nominal width DN 24.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The electrical pressure regulator PREL-90-HP3-A4-A-20CFX-S1-2 controls the output pressure within 0.5 to 20 bar according to an analogue setpoint of 4 - 20 mA. Also of note: PWIS (LABS) conformity to VDMA24364 zone III and corrosion resistance class CRC 2.
Benefits
- Supply pressure compensation keeps the output stable.
- Nominal width DN 24.
- Secondary exhaust relieves excess output pressure.
- Electrical connection plug connector, M12, 5-pin, A-coded.
- Operating pressure 0 to 50 bar.
Applications
Used when the pressure is to be set by the controller, for example for changing contact pressures or recipes. G1 connection. Permitted medium for the PREL-90-HP3-A4-A-20CFX-S1-2: compressed air to ISO 8573-1:2010 [7:4:4], inert gases.
Technical data
| Type | PREL-90-HP3-A4-A-20CFX-S1-2 |
|---|---|
| Festo part number | 1709130 |
| Size | 90 |
| Nominal width DN | 24 |
| Series | L |
| Mounting position | Vertical |
| Type of actuation | Electrical |
| Design | Electrically adjustable pressure regulator |
| Regulator function | Constant output pressure, with supply pressure compensation, with secondary exhaust |
| Operating pressure | 0 to 50 bar |
| Pressure regulation range | 0.5 to 20 bar |
| Nominal operating voltage DC | 24 V |
| Signal range, analogue output | 4 - 20 mA |
| Signal range, analogue input | 4 - 20 mA |
| Setpoint/actual values | Current type 4-20 mA |
| Approval | Special Equipment Type Test Certification |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS (LABS) conformity | VDMA24364-Zone III |
| Storage temperature | -10 to 60 °C |
| Food suitability | See extended material information |
| Medium temperature | 5 to 50 °C |
| Ambient temperature | 5 to 50 °C |
| Product weight | 6100 g |
| Electrical connection IN | Plug connector, M12, 5-pin, A-coded |
| Electrical connection OUT | Plug connector, M12, 5-pin, A-coded |
| Mounting type | On service unit, with accessories |
| Pneumatic connection, port 1 | G1 |
| Pneumatic connection, port 11 | G1/4 |
| Pneumatic connection, port 2 | G1 |
| Pneumatic connection, port 22 | G1/4 |
| Pneumatic connection, port 3 | G1 |
| Pneumatic connection, port 82 | G3/8 |
| Note on materials | RoHS compliant |
| Bottom cover material | Anodised aluminium |
| Spring material | Spring steel |
| Housing material | Anodised aluminium |
| Weight | 6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PREL-90-HP3-A4-A-20CFX-S1-2 |
| EAN | 4052568263942 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1 |
| Nominal size DN [mm] | 24 |
| Control range max. [bar] | 20 |
| Medium | Compressed air, neutral gases |
| Actuation type | Electrical |
| Druckregelbereich [bar] | 0,5 bis 20 |
| Medientemperatur [°C] | 5 bis 50 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 50 |
| Pneumatic connection | G1 |
| Temperature (max.) | 50 |
