Proportional pressure regulator SYNTRONIC, size 1, without port bushings, 0.2 to 10 bar, with display, set point 0 to 10 V - Riegler 146623
The proportional pressure regulator SYNTRONIC controls pressure electronically and precisely to a given set point within 0.2 to 10 bar. Flow rate 2800 Nl/min at Δp 1 bar, temperature 0 to 50 °C, inlet pressure up to 11 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Pressure to set point: the proportional pressure regulator SYNTRONIC works in a closed loop over 0.2 to 10 bar. Inlet pressure up to 11 bar, flow rate 2800 Nl/min at Δp 1 bar, temperature 0 to 50 °C, size 1. Double rolling diaphragms give a wide valve opening: flow rate up to 2800 Nl/min at Δp 1 bar.
Key benefits
- The set point (0 - 10 V DC) arrives via a cable with M12x1 connector
- Precision pressure sensor and two mini solenoid valves hold the set point, repeatability < ±0.2 % (full scale)
- Integrated check valve relieves fully when the inlet pressure drops to zero, so it also works between valve and cylinder
- Port bushings easy to change, as on the SYNTESI series
- Display with LEDs and diagnostics, readout in bar
- Flow rate 2800 Nl/min at Δp 1 bar
Applications
- Set point controlled pressure from a controller or PLC
- Processes that change pressure during operation
- Installation between valve and cylinder
Technical data
| Size | 1 |
|---|---|
| Inlet pressure min. | pressure to be regulated +1 bar |
| Inlet pressure max. | 11 bar |
| Temperature range | 0 to 50 °C |
| Housing | technopolymer |
| Seal material | NBR |
| Diaphragm | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range | 0.2 to 10 bar |

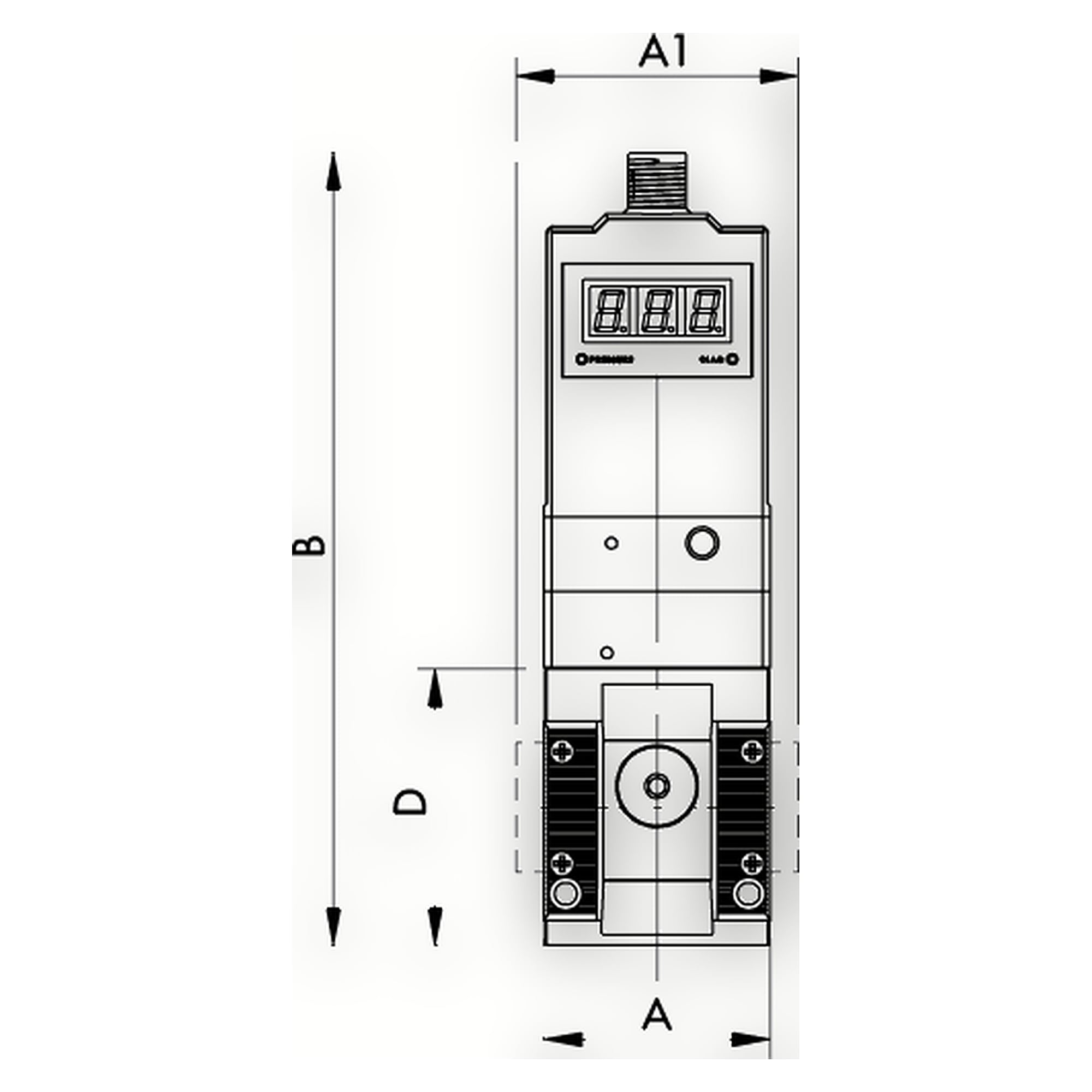

| Dimension A | 42.0 mm |
| Dimension B | 147.5 mm |
| Dimension D | 51.5 mm |
| Series | SYNTESI |
| Medium | filtered, unlubricated compressed air, max. particle size 10 μm, free of condensate |
| Inlet port | without socket |
| Outlet port | without socket |
| Front and back port thread | G 1/8 |
| Flow rate | 2800 Nl/min at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
| Flow rate | 2200 Nl/min at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Input signal | 0 - 10 V DC |
| Analogue output | 0 - 10 V DC |
| Operating voltage | 10.8 to 31.2 V DC |
| Current consumption | max. 220 mA at 12 V DC |
| Display | with |
| Degree of protection | IP 65 |
| Hysteresis | < ±0.4 % (full scale) |
| Repeatability | < ±0.2 % (full scale) |
| Sensitivity/dead band | 0.1 bar |
| Display accuracy | < ±0.1 % (full scale) |
| Display units | bar |
| Display resolution min. | 0.01 bar |
| Analogue output resolution | < ±0.1 % (full scale) |
| Temperature dependence | max. 2 mbar / °C |
| Type (Riegler) | 5610G100 |
| Article number (Riegler) | 146623 |
| Weight | 0.38 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | 5610G100 |
| EAN | 4047322783064 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Material | Technopolymer |
| Size BG | 1 |
| Control range max. [bar] | 10 |
| Housing material | Technopolymer |
| Inlet pressure max. [bar] | 11 |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
