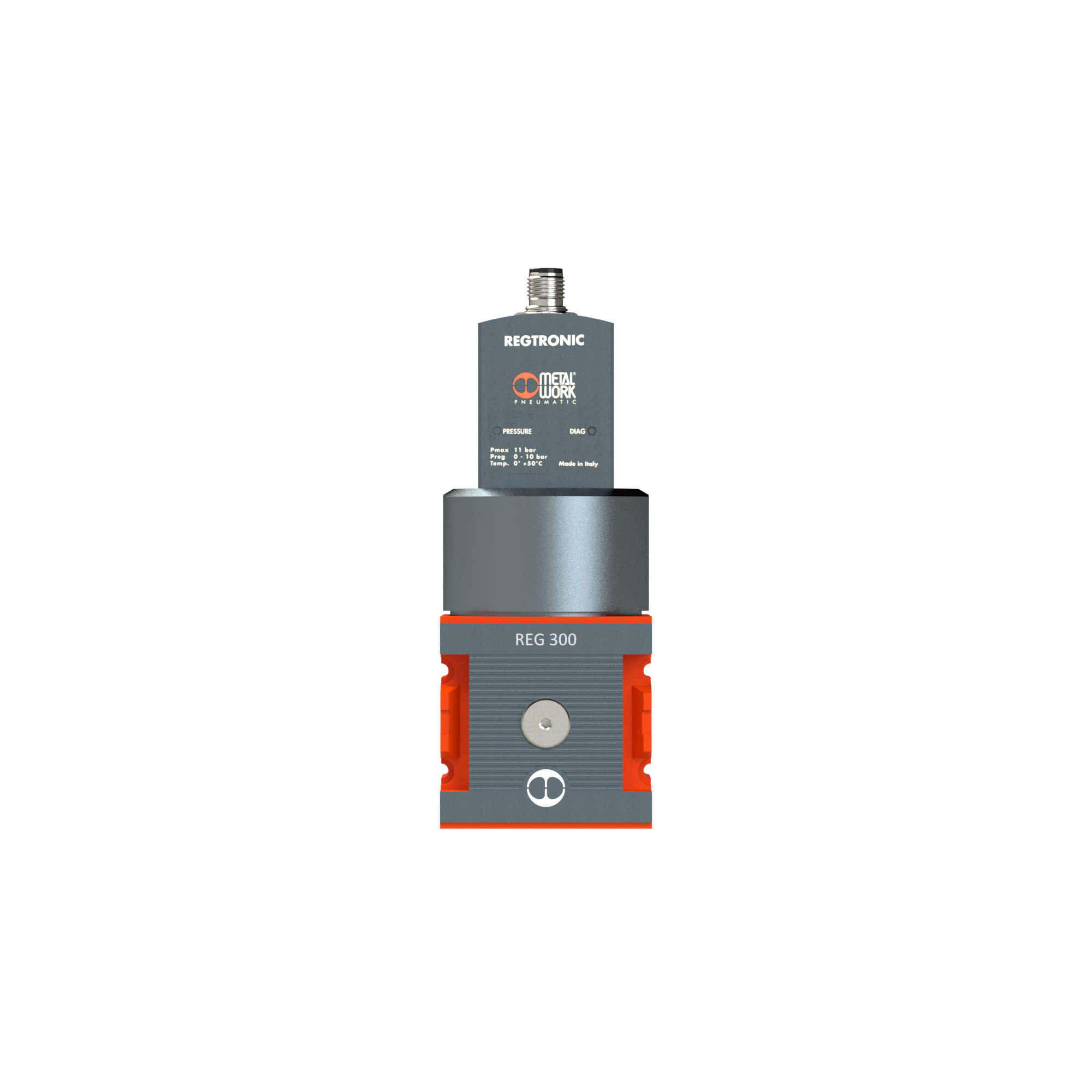

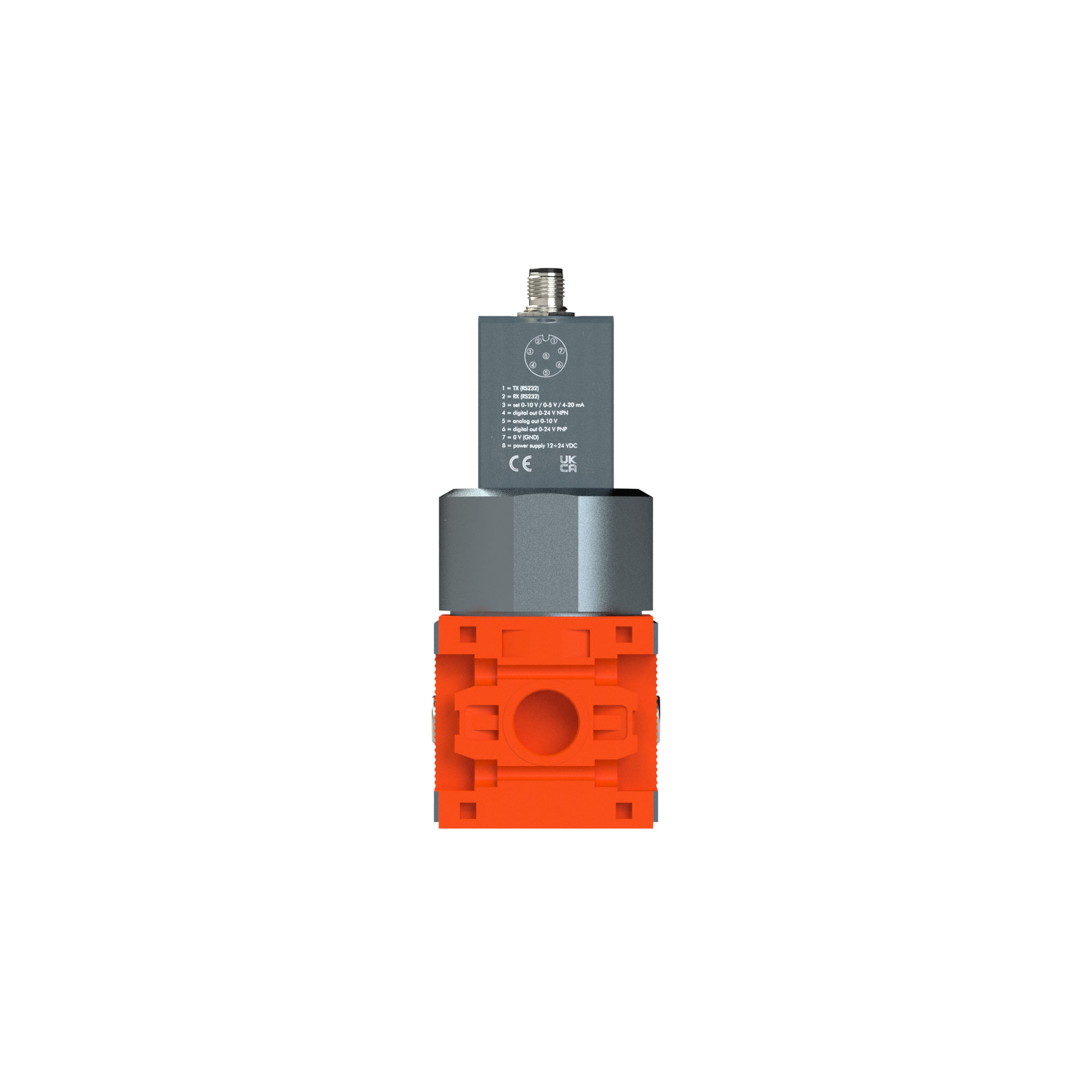

Proportional pressure regulator REGTRONIC 300, without end plates, 0.05 to 10 bar, without display, IO-Link, type 4402313A - Riegler 153043
Pressure to set point: the proportional pressure regulator REGTRONIC 300 works in a closed loop over 0.05 to 10 bar. Flow rate 7000 Nl/min at Δp 1 bar, temperature 0 to 50 °C, inlet pressure up to 11 bar. Controlled via M12x1 cable, set point as IO-Link.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The proportional pressure regulator REGTRONIC 300 controls pressure electronically and precisely to a given set point within 0.05 to 10 bar. Temperature 0 to 50 °C, inlet pressure up to 11 bar, flow rate 7000 Nl/min at Δp 1 bar. Controlled via M12x1 cable, set point as IO-Link.
Benefits
- Precision pressure sensor and two mini solenoid valves hold the set point, repeatability ±0.2 % (full scale)
- Flow rate 7000 Nl/min at Δp 1 bar
- Temperature range 0 to 50 °C
- Operating voltage 18 to 30 V DC, protection IP 65
- Hysteresis ±0.2 % (full scale)
Applications
- Set point controlled pressure from a controller or PLC
- Processes that change pressure during operation
Technical data
| Thread | without end plates |
|---|---|
| Inlet pressure min. | pressure to be regulated +1 bar |
| Inlet pressure max. | 11 bar |
| Temperature range | 0 to 50 °C |
| Housing | aluminium |
| Control range | 0.05 to 10 bar |
| Dimension A | 65.0 mm |
| Dimension B | 174.5 mm |
| Series | REGTRONIC 300 |
| Medium | filtered, unlubricated compressed air, max. particle size 10 μm, free of condensate |
| Flow rate | 7000 Nl/min at 6.3 bar and Δp 1 bar |
| Flow rate | 4500 Nl/min at 6.3 bar and Δp 0.5 bar |
| Input signal | IO-Link |
| Analogue output | without |
| Operating voltage | 18 to 30 V DC |
| Current consumption | max. 150 mA at 18 V DC |
| Display | without |
| Degree of protection | IP 65 |
| Hysteresis | ±0.2 % (full scale) |
| Repeatability | ±0.2 % (full scale) |
| Sensitivity/dead band | adjustment range: 10 - 300 mbar |
| Temperature dependence | max. 2 mbar / °C |
| Type (Riegler) | 4402313A |
| Article number (Riegler) | 153043 |
| Weight | 1.5 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | 4402313A |
| EAN | 4047322817059 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Material | Aluminium |
| Control range max. [bar] | 10 |
| Housing material | Aluminium |
| Inlet pressure max. [bar] | 11 |
| Pneumatic connection | without end plates |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
