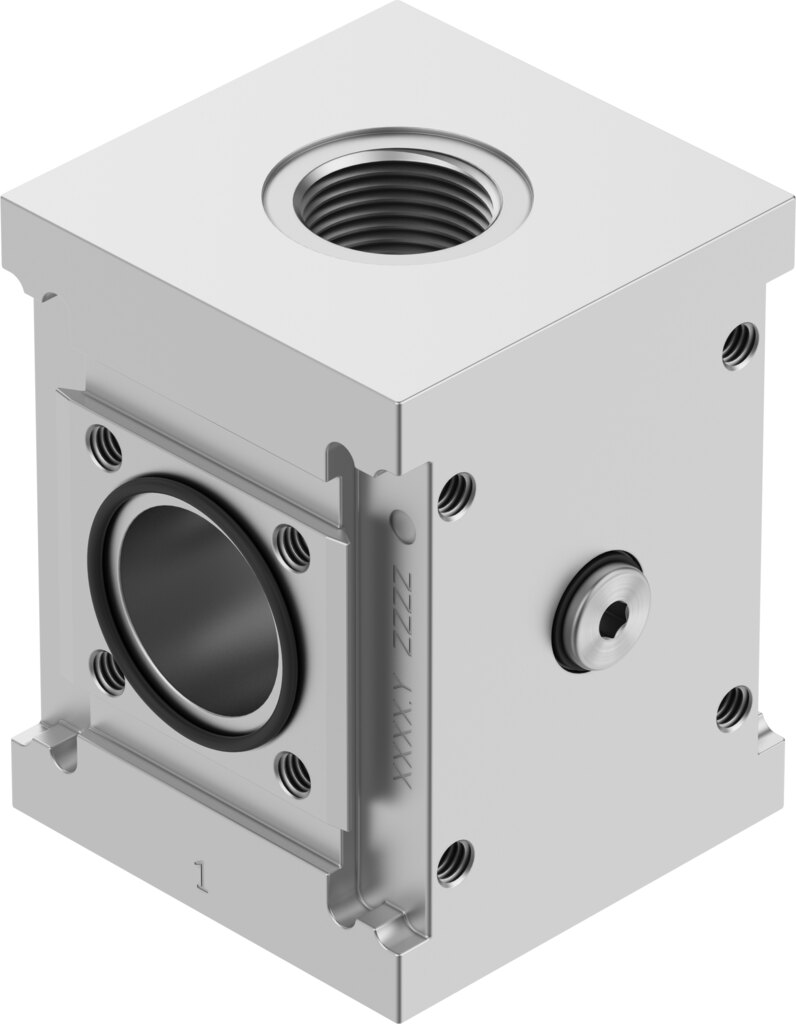

Branching module for additional air outlets, size 90, up to 50 bar PMBL-90-HP3 - Festo 1401366

Festo ✓ Original product Brand new

The PMBL-90-HP3 branching module taps compressed air from the service unit for additional consumers. Datasheet values: size 90, operating pressure 0 to 50 bar, housing made of wrought aluminium alloy and ambient temperature 5 to 60 °C.

Net
€1,432.84
excl. VAT
Item FES-1401366
Manufacturer no. PMBL-90-HP3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The PMBL-90-HP3 branching module taps compressed air from the service unit for additional consumers. The key values: size 90 and operating pressure 0 to 50 bar.

Benefits

  • Operating pressure 0 to 50 bar
  • Ambient temperature 5 to 60 °C
  • PWIS conformity VDMA24364 zone III
  • CRC 2: designed for moderate corrosion stress
  • RoHS-compliant
  • Housing made of wrought aluminium alloy

Application

The PMBL-90-HP3 suits systems in which several consumers are supplied from one central air preparation unit. The PMBL-90-HP3 works with compressed air to ISO 8573-1:2010 [-:-:-].

Technical data

TypePMBL-90-HP3
Festo part number1401366
Size90
Nominal size DN36
SeriesL
Mounting positionany
Designbranching module
Operating pressure0 to 50 bar
CE marking (see declaration of conformity)in accordance with EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
Operating mediumcompressed air to ISO 8573-1:2010 [-:-:-]
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformityVDMA24364 zone III
Storage temperature-10 to 60 °C
Food suitabilitysee supplementary material information
Medium temperature5 to 60 °C
Ambient temperature5 to 60 °C
Product weight2000 g
Note on materialsRoHS-compliant
Seal materialNBR
Housing materialwrought aluminium alloy
Weight2.2 kg
ManufacturerFesto
Hersteller-NrPMBL-90-HP3
EAN4052568263027
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Betriebsdruck max [bar]50
Temperaturbereich5-60 °C
Temperature (max.)60
