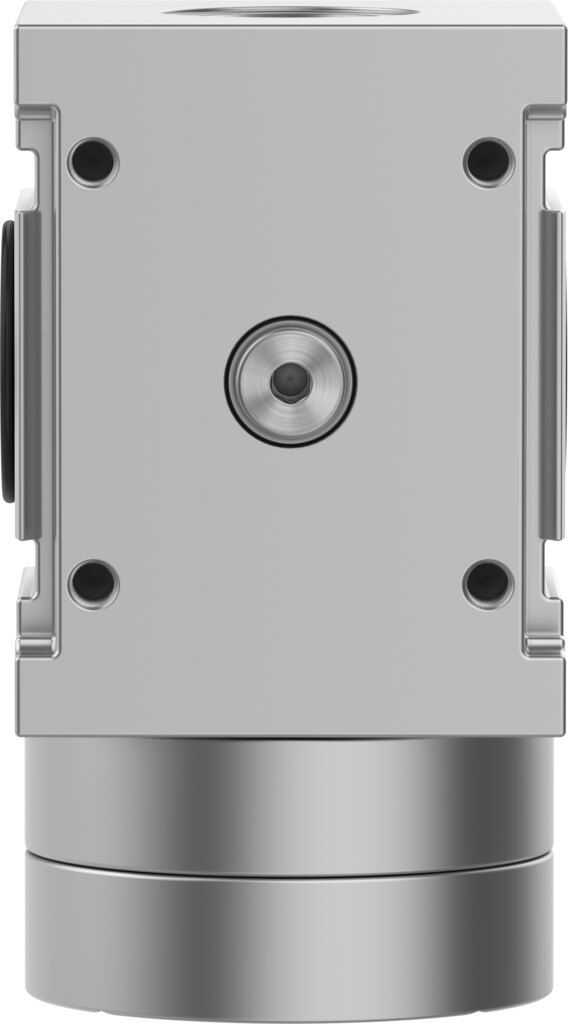

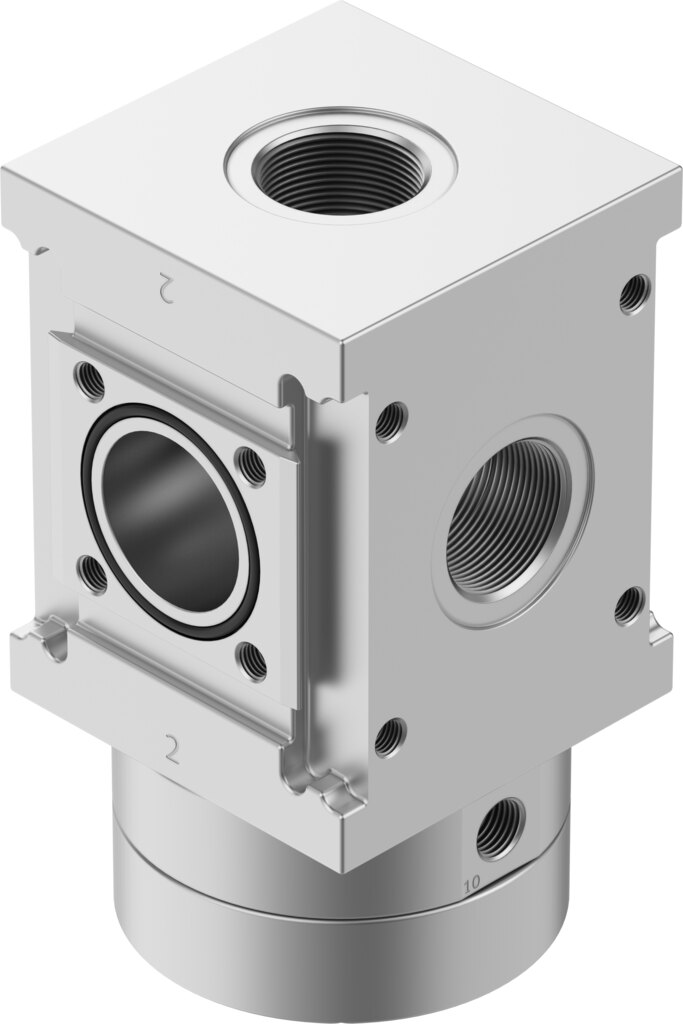

Branching module for additional air outlets, size 90, up to 50 bar PMBL-90-HP3-E - Festo 2663892
The PMBL-90-HP3-E branching module provides additional compressed air outlets within a service unit. Datasheet values: size 90, operating pressure 0 to 50 bar, housing made of wrought aluminium alloy and ambient temperature 5 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PMBL-90-HP3-E branching module provides additional compressed air outlets within a service unit. The key values: size 90 and operating pressure 0 to 50 bar.
Benefits
- Rated for an operating pressure of 0 to 50 bar
- Suitable for ambient temperatures of 5 to 60 °C
- PWIS conformity VDMA24364 zone III
- CRC 2: designed for moderate corrosion stress
- RoHS-compliant
- Sturdy housing made of wrought aluminium alloy
Application
The PMBL-90-HP3-E suits systems in which several consumers are supplied from one central air preparation unit. The PMBL-90-HP3-E works with compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | PMBL-90-HP3-E |
|---|---|
| Festo part number | 2663892 |
| Size | 90 |
| Nominal size DN | 36 |
| Series | L |
| Mounting position | any |
| Design | branching module |
| Operating pressure | 0 to 50 bar |
| Pilot pressure | 0 to 50 bar |
| CE marking (see declaration of conformity) | in accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364 zone III |
| Storage temperature | -10 to 60 °C |
| Food suitability | see supplementary material information |
| Medium temperature | 5 to 60 °C |
| Ambient temperature | 5 to 60 °C |
| Product weight | 2600 g |
| Note on materials | RoHS-compliant |
| Housing material | wrought aluminium alloy |
| Weight | 2.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PMBL-90-HP3-E |
| EAN | 4052568265472 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 50 |
| Temperaturbereich | 5-60 °C |
| Temperature (max.) | 60 |
