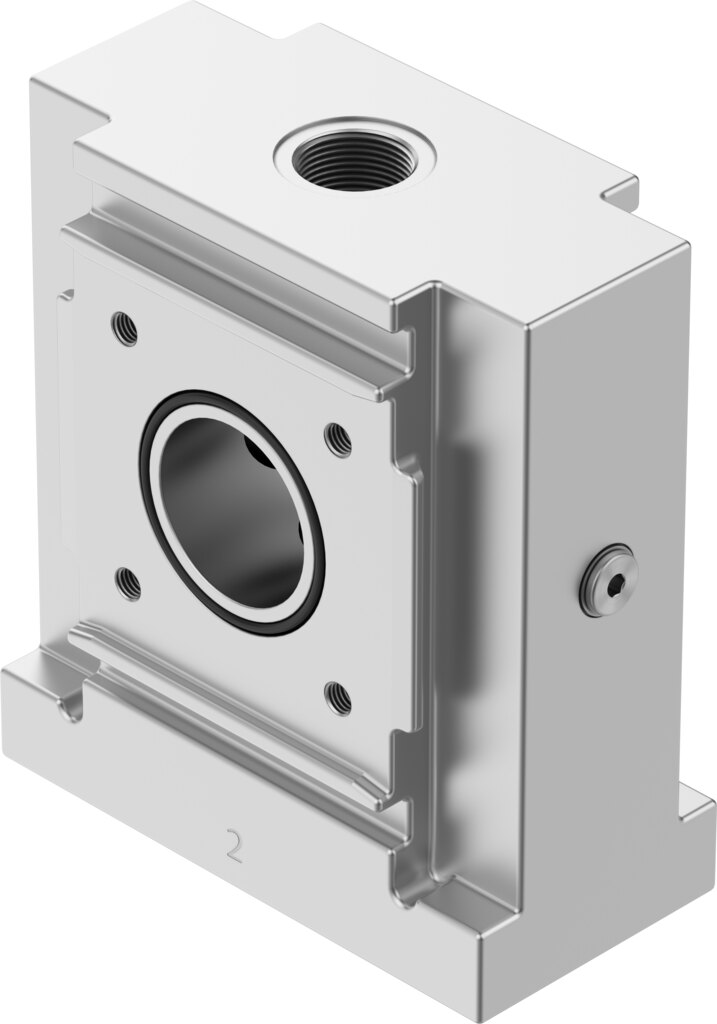

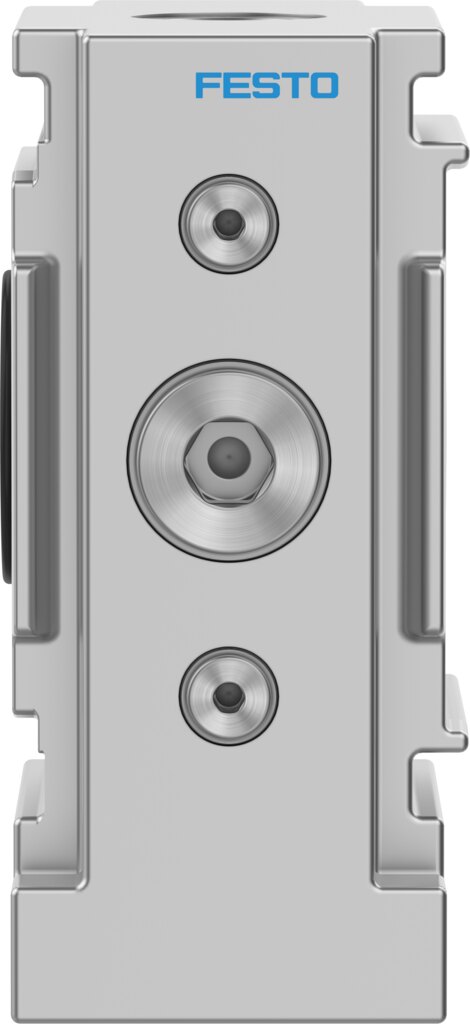

Branching module for additional air outlets, G1, up to 50 bar PMBL-186-HP3-H - Festo 1609073
The PMBL-186-HP3-H branching module taps compressed air from the service unit for additional consumers. Key data: port G1, operating pressure 0 to 50 bar, housing made of wrought aluminium alloy and ambient temperature 5 to 60 °C. Weight 8 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PMBL-186-HP3-H branching module taps compressed air from the service unit for additional consumers. The key values: port G1 and operating pressure 0 to 50 bar.
Benefits
- Operating pressure 0 to 50 bar
- Pneumatic port G1 for direct piping
- Suitable for ambient temperatures of 5 to 60 °C
- PWIS conformity VDMA24364 zone III
- CRC 2: designed for moderate corrosion stress
- RoHS-compliant
Application
The PMBL-186-HP3-H suits systems in which several consumers are supplied from one central air preparation unit. The PMBL-186-HP3-H works with compressed air to ISO 8573-1:2010 [-:-:-].
Technical data
| Type | PMBL-186-HP3-H |
|---|---|
| Festo part number | 1609073 |
| Nominal size DN | 54 |
| Series | L |
| Mounting position | any |
| Design | branching module |
| Operating pressure | 0 to 50 bar |
| CE marking (see declaration of conformity) | in accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Operating medium | compressed air to ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364 zone III |
| Storage temperature | -10 to 60 °C |
| Food suitability | see supplementary material information |
| Medium temperature | 5 to 60 °C |
| Ambient temperature | 5 to 60 °C |
| Pneumatic port 3 | G1 |
| Pneumatic port 4 | G1 |
| Note on materials | RoHS-compliant |
| Seal material | NBR |
| Housing material | wrought aluminium alloy |
| Weight | 8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PMBL-186-HP3-H |
| EAN | 4052568263607 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1 |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 50 |
| Temperaturbereich | 5-60 °C |
| Temperature (max.) | 60 |
