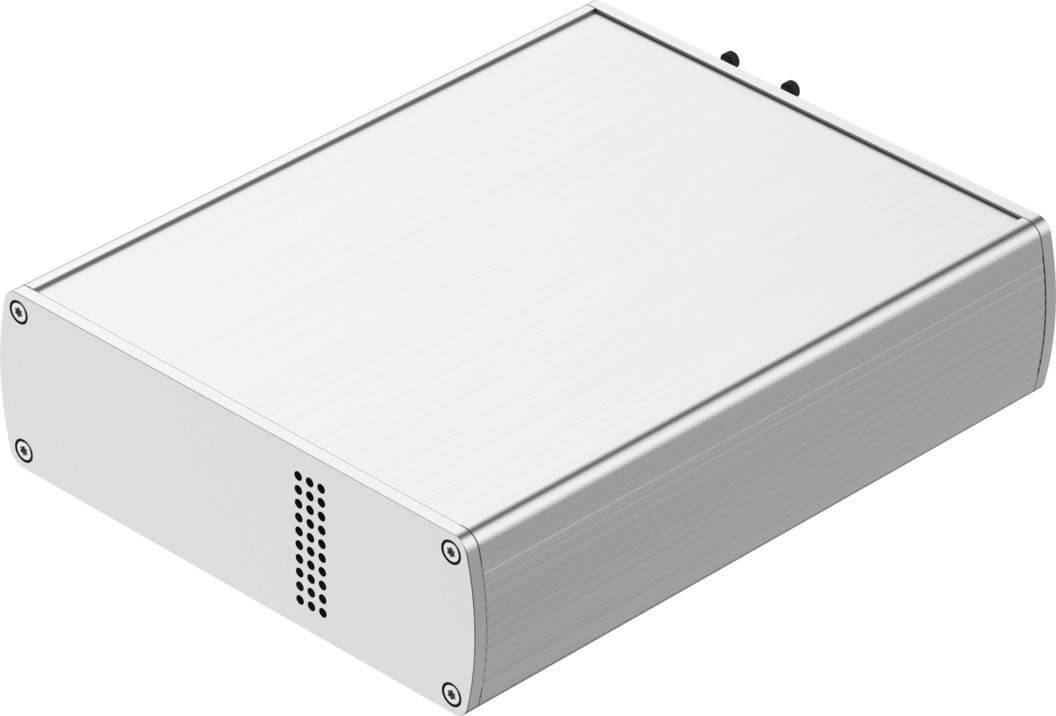

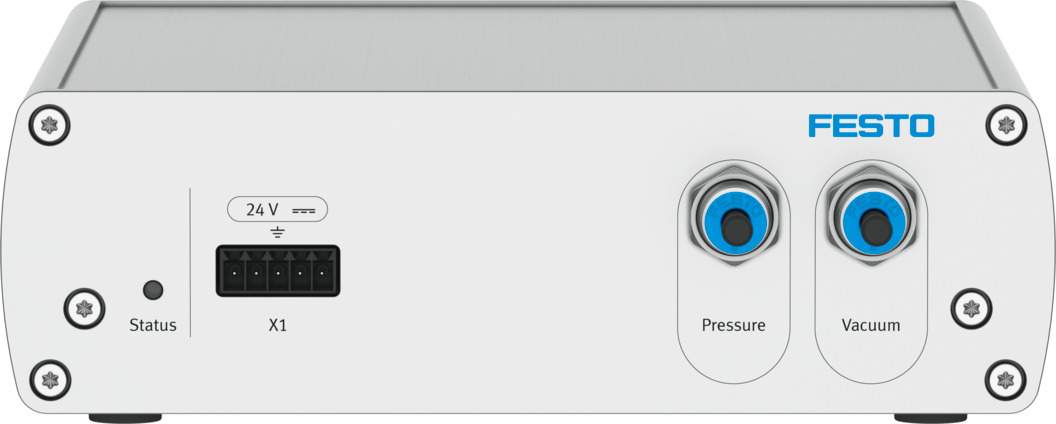

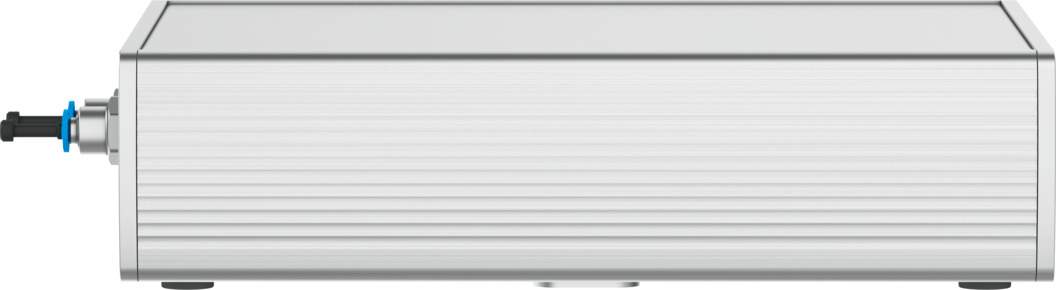

Pressure vacuum generator for pressure and vacuum, QS-4, 0.01 µm, 24 V DC PGVA-2-P1V1-Q4-A - Festo 8163214
The PGVA-2-P1V1-Q4-A pressure vacuum generator supplies regulated positive pressure and vacuum from one unit. Datasheet values: port QS-4, grade of filtration 0.01 µm, operating voltage 24 V DC and housing made of powder-coated aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PGVA-2-P1V1-Q4-A pressure vacuum generator supplies regulated positive pressure and vacuum from one unit. At a glance: port QS-4 and grade of filtration 0.01 µm.
Benefits
- Push-in connector QS-4 for quick tubing installation
- Grade of filtration 0.01 µm
- Operation at 24 V DC
- Degree of protection IP20
- Suitable for ambient temperatures of 0 to 40 °C
- PWIS conformity VDMA24364 zone III
Application
Typical applications are pipetting and dispensing tasks in laboratory automation.
Technical data
| Type | PGVA-2-P1V1-Q4-A |
|---|---|
| Festo part number | 8163214 |
| Mounting position | any |
| Grade of filtration | 0.01 µm |
| Configuration support | Python scripts |
| Display | LED |
| Standard flow rate (to DIN 1343) | 1.2 l/min |
| Dimensions W x L x H | 169 mm x 208 mm x 55 mm |
| Operating voltage range DC | 21.6 to 26.4 V |
| Electrical power consumption | 11 W |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | ± 10 % |
| Power supply, function | load and functional earth |
| Power supply, connection type | socket |
| Power supply, connection technology | terminal strip |
| Power supply, number of pins/wires | 5 |
| Power supply, pin allocation | 00997301 |
| Approval | RCM mark |
| CE marking (see declaration of conformity) | to EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| PWIS conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative humidity | 0 - 85 % |
| Sound power level | 55 dB(A) |
| Degree of protection | IP20 |
| Ambient temperature | 0 to 40 °C |
| Product weight | 1800 g |
| Electrical activation | integrated controller |
| Mounting type | with female thread M4 |
| Pneumatic port 1 | QS-4 |
| Pneumatic port 2 | QS-4 |
| Number of pneumatic ports | 2 |
| Housing colour | grey |
| Note on materials | RoHS-compliant |
| Housing material | aluminium, powder-coated |
| Weight | 2.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PGVA-2-P1V1-Q4-A |
| EAN | 4052568619688 |
| Zolltarifnummer | 84148080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Filter grade [µm] | 0,01 |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | 0-40 °C |
| Temperature (max.) | 40 |
