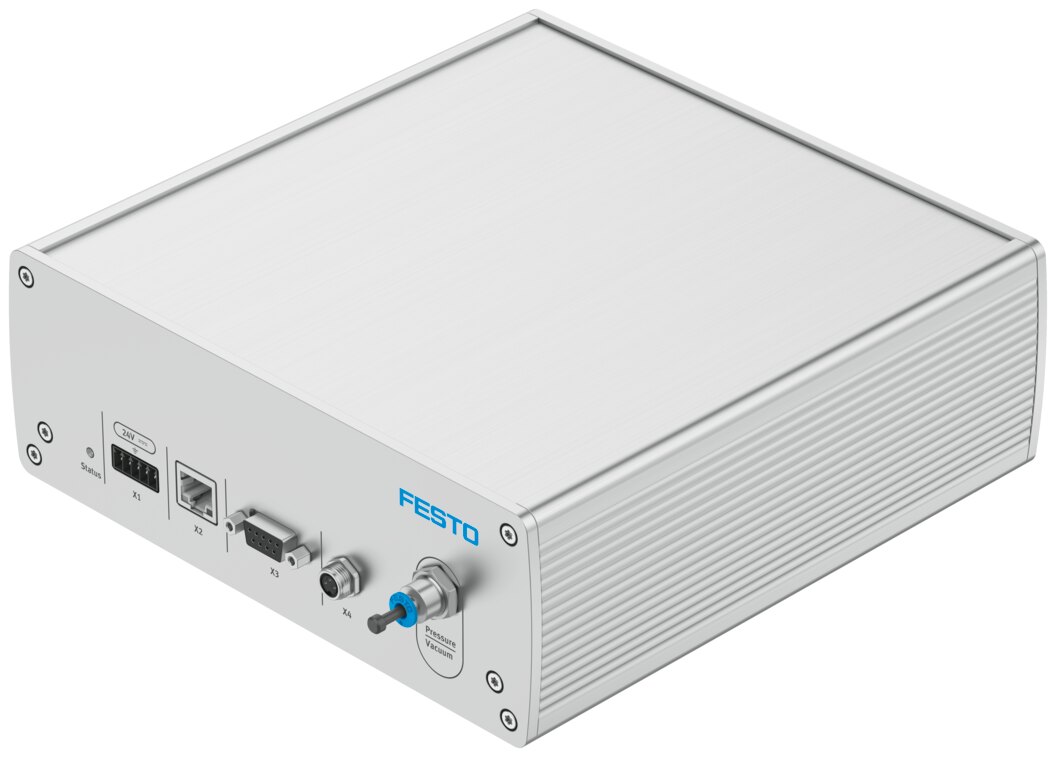

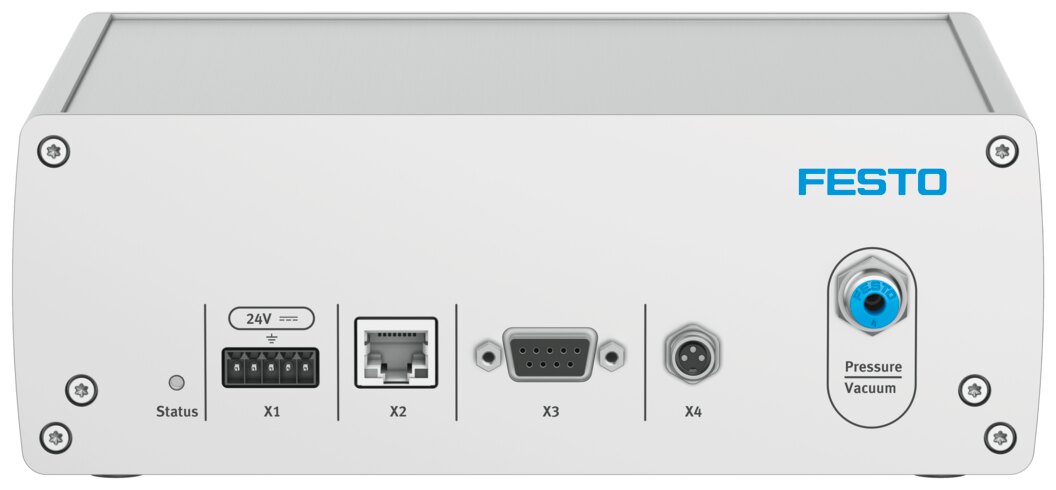

Pressure vacuum generator for pressure and vacuum, QS-4, 0.01 µm, 24 V DC PGVA-1-P-D30-Q4-A - Festo 8165129
The PGVA-1-P-D30-Q4-A pressure vacuum generator supplies regulated positive pressure and vacuum from one unit. Datasheet values: port QS-4, grade of filtration 0.01 µm, operating voltage 24 V DC and housing made of powder-coated aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PGVA-1-P-D30-Q4-A pressure vacuum generator supplies regulated positive pressure and vacuum from one unit. Decisive for selection: port QS-4 and grade of filtration 0.01 µm.
Benefits
- Push-in connector QS-4 for quick tubing installation
- Grade of filtration 0.01 µm
- Operation at 24 V DC
- Enclosed to IP20
- Ambient temperature 0 to 40 °C
- PWIS conformity VDMA24364 zone III
Application
Typical applications are pipetting and dispensing tasks in laboratory automation.
Technical data
| Type | PGVA-1-P-D30-Q4-A |
|---|---|
| Festo part number | 8165129 |
| Mounting position | any |
| Grade of filtration | 0.01 µm |
| Configuration support | Python scripts, integrated web server |
| Parameterisation | System parameters, CODESYS V3 |
| Display | LED |
| Standard flow rate (to DIN 1343) | 1 l/min |
| Dimensions W x L x H | 210 mm x 208 mm x 76 mm |
| Operating voltage range DC | 21.6 to 26.4 V |
| Electrical power consumption | 19 W |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuation | ± 10 % |
| Power supply, function | load and functional earth |
| Power supply, connection type | socket |
| Power supply, connection technology | terminal strip |
| Power supply, number of pins/wires | 5 |
| Power supply, pin allocation | 00997301 |
| Approval | RCM mark |
| CE marking (see declaration of conformity) | to EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| PWIS conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative humidity | non-condensing |
| Sound power level | 55 dB(A) |
| Degree of protection | IP20 |
| Ambient temperature | 0 to 40 °C |
| Product weight | 3200 g |
| Absolute accuracy in ± %FS at room temperature | 1 %FS |
| Electrical activation | COM port, Ethernet, Integrated controller |
| Serial interface, function | Communication, Parameterisation and commissioning |
| Serial interface, connection type | socket |
| Serial interface, connection technology | Sub-D |
| Serial interface, protocol | RS232 |
| Serial interface, transmission rate | 1200 to 115200 Bit/s |
| Ethernet interface, connection type | socket |
| Ethernet interface, connection technology | RJ45 |
| Ethernet interface, transmission rate | 100 Mbit/s |
| Ethernet interface, function | Parameterisation and commissioning |
| Ethernet interface, protocol | Modbus TCP |
| Electrical connection sensor, connection type | socket |
| Electrical connection sensor, design | round |
| Electrical connection sensor, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection sensor, pin allocation | 00991871 |
| Electrical connection sensor, input signal | 0 - 10 V, 0 - 5 V |
| Electrical connection sensor, output signal | 24V DC |
| Mounting type | with female thread M4 |
| Pneumatic port 1 | QS-4 |
| Number of pneumatic ports | 1 |
| Housing colour | grey |
| Note on materials | RoHS-compliant |
| Housing material | aluminium, powder-coated |
| Weight | 3.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PGVA-1-P-D30-Q4-A |
| EAN | 4052568627713 |
| Zolltarifnummer | 84148080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Filter grade [µm] | 0,01 |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperaturbereich | 0-40 °C |
| Temperature (max.) | 40 |
