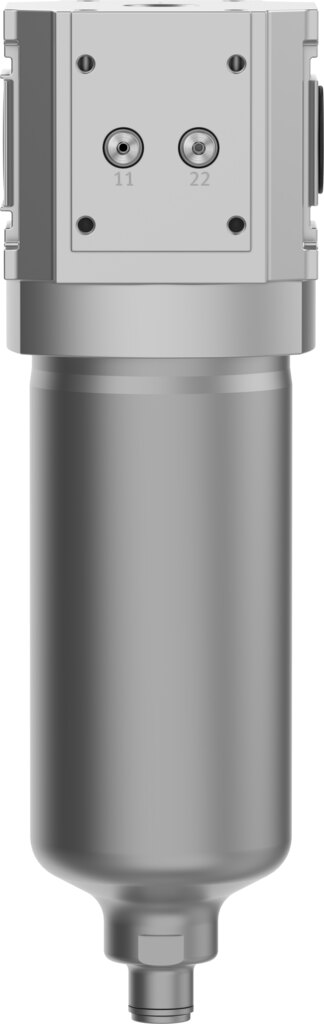

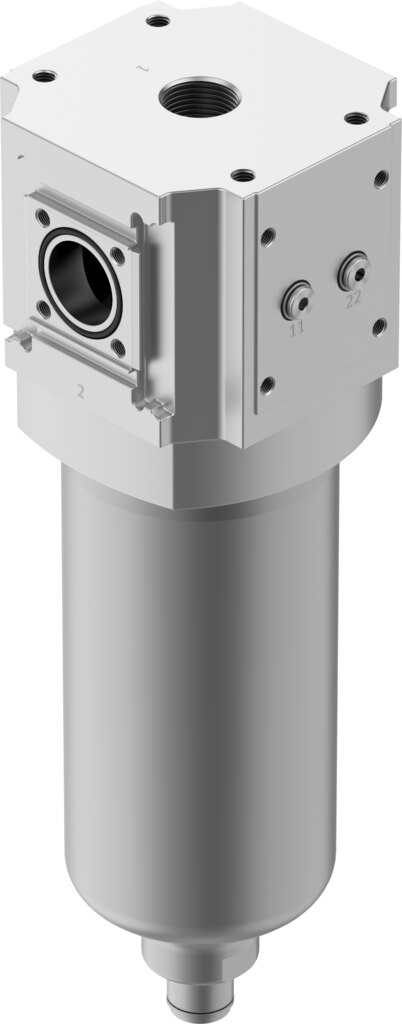

Micro filter for high-purity compressed air, size 90, 0.01 µm, up to 50 bar PFML-90-HP3-AST - Festo 1612487

Festo ✓ Original product Brand new

The PFML-90-HP3-AST micro filter removes the finest particles and oil aerosols from the compressed air. Datasheet values: size 90, operating pressure 0 to 50 bar, grade of filtration 0.01 µm and housing made of wrought aluminium alloy.

Net
€2,728.77
excl. VAT
Item FES-1612487
Manufacturer no. PFML-90-HP3-AST
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The PFML-90-HP3-AST micro filter removes the finest particles and oil aerosols from the compressed air. Decisive for selection: size 90 and operating pressure 0 to 50 bar.

Benefits

  • Rated for an operating pressure of 0 to 50 bar
  • Grade of filtration 0.01 µm
  • Air purity at the outlet: compressed air to ISO 8573-1:2010 [1:4:2]
  • Volume 3
  • Filter efficiency 99.99998 %
  • Ambient temperature 5 to 60 °C

Application

It is used upstream of sensitive consumers and activated carbon filters. The PFML-90-HP3-AST works with inert gases.

Technical data

TypePFML-90-HP3-AST
Festo part number1612487
SeriesL
Size90
Designfibre filter
Grade of filtration0.01 µm
Condensate drainmanual
Operating pressure0 to 50 bar
Operating mediuminert gases
Note on operating and pilot mediumlubricated operation not possible
Air purity class at outletcompressed air to ISO 8573-1:2010 [1:4:2]
Max. standard flow rate for air purity class10220 l/min
Filter efficiency99.99998 %
Max. condensate volume200 ml
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformityVDMA24364 zone III
Food suitabilitysee supplementary material information
Medium temperature5 to 60 °C
Ambient temperature5 to 60 °C
Storage temperature-10 to 60 °C
CE marking (see declaration of conformity)in accordance with EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
Mounting typeinline installation
Mounting positionvertical ± 5°
Housing materialwrought aluminium alloy
Filter materialborosilicate fibre
Bowl materialhigh-alloy stainless steel
Seal materialNBR
Note on materialsRoHS-compliant
Product weight7700 g
Volume3
Weight10 kg
ManufacturerFesto
Hersteller-NrPFML-90-HP3-AST
EAN4052568263614
Zolltarifnummer84213925
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Filter grade [µm]0,01
Betriebsdruck max [bar]50
Temperaturbereich5-60 °C
Temperature (max.)60
