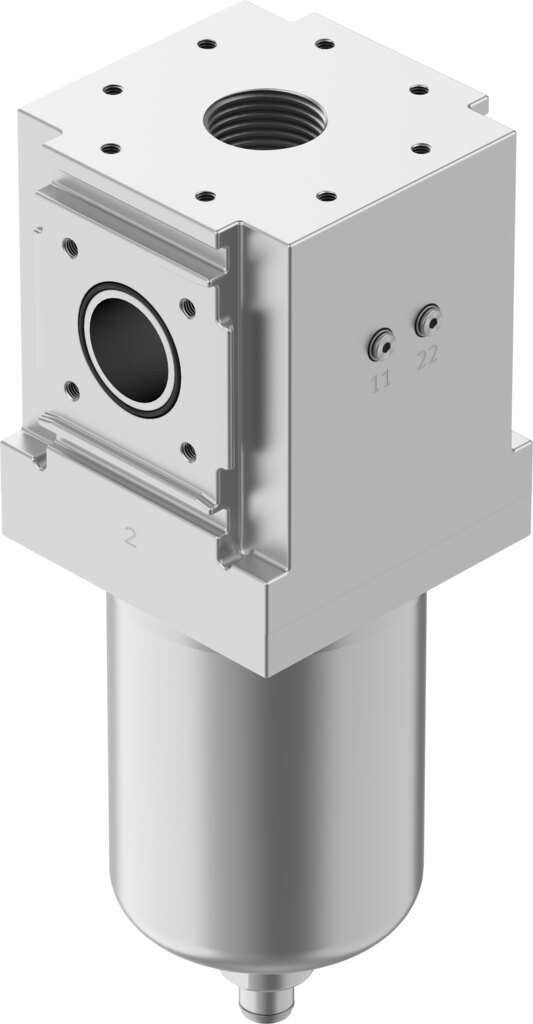

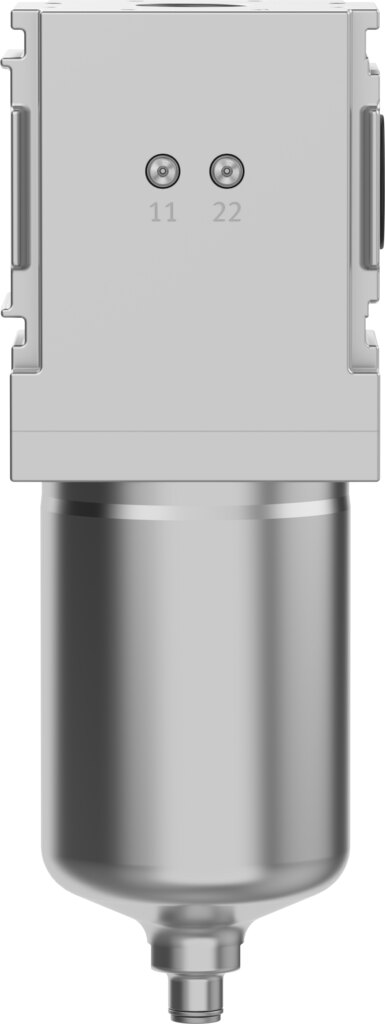

Micro filter PFML-186-HP3-H-AST - Festo 1624062
Net
excl. VAT
€6,750.48
Item
FES-1624062
Manufacturer no.
PFML-186-HP3-H-AST
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Series | L |
|---|---|
| Size | 186 |
| Design | Fibre filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manual |
| Operating pressure | 0 ... 50 bar |
| Operating medium | Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [1:4:2] |
| Max. standard flow rate for clean air class | 18980 l/min |
| Min. standard flow rate for clean air class | 6326 l/min |
| Filter efficiency | 99.99998 % |
| Max. condensate volume | 400 ml |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitable for use with food | See supplementary material information |
| Media temperature | 5 ... 60 °C |
| Ambient temperature | 5 ... 60 °C |
| Storage temperature | -10 ... 60 °C |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Type of mounting | Inline installation |
| Mounting position | Vertical +/-5° |
| Material housing | Wrought aluminium alloy |
| Material filter | Borosilicate fibre |
| Material bowl | High-alloy stainless steel |
| Material seals | NBR |
| Note on materials | RoHS compliant |
| Product weight | 21000 g |
| Volume | 6.7 |
| Weight | 21 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PFML-186-HP3-H-AST |
| EAN | 4052568263621 |
| Zolltarifnummer | 84213925 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
