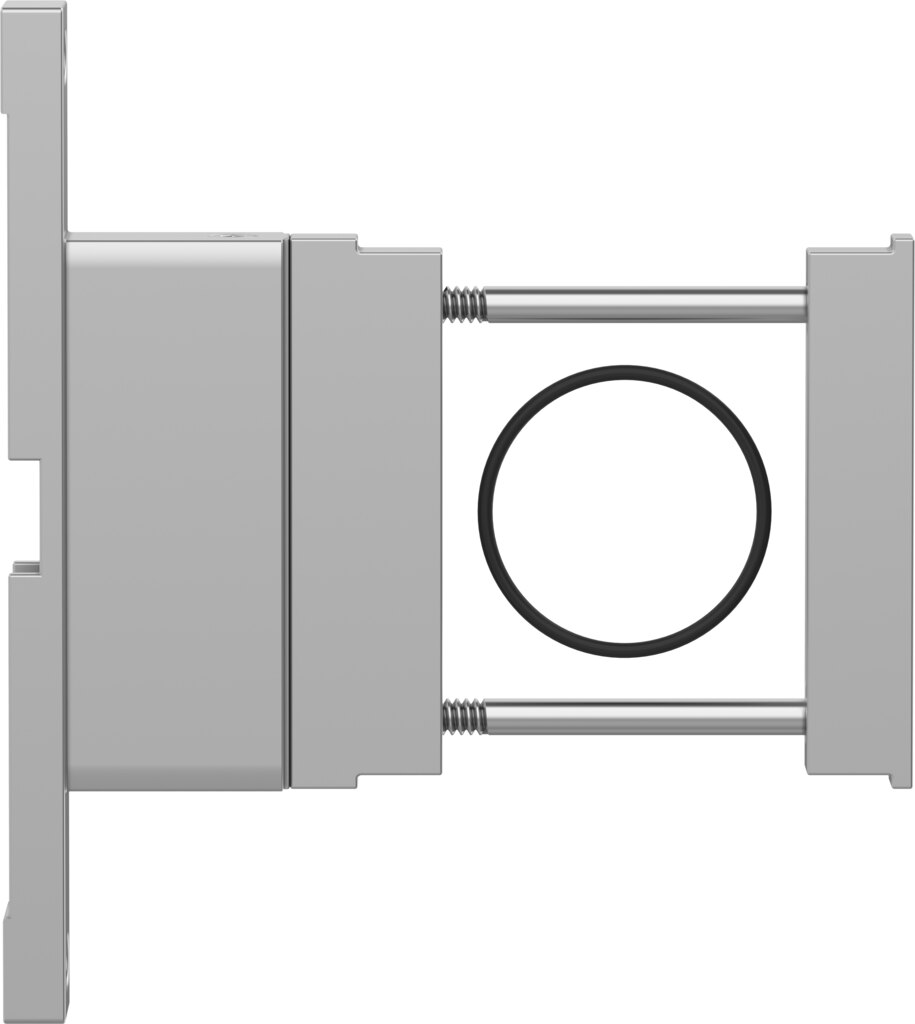

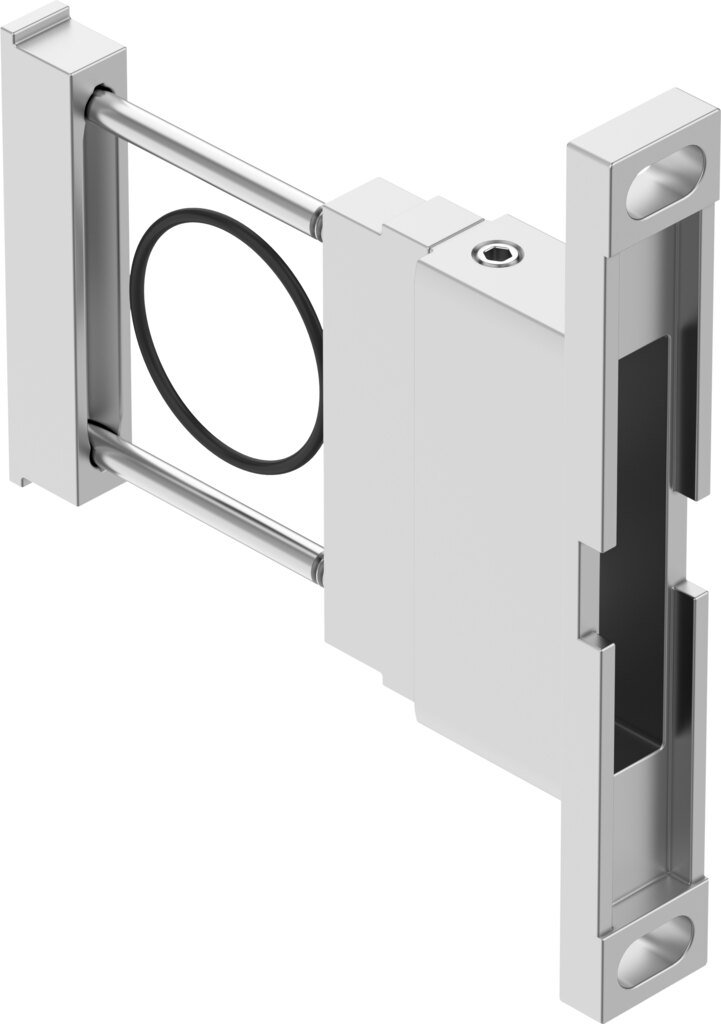

Mounting bracket for wall mounting, size 90, up to 50 bar PAML-MB-90-HP3 - Festo 1367323
The PAML-MB-90-HP3 mounting bracket secures the air preparation unit to a wall, frame or machine bed. Datasheet values: size 90, operating pressure 0 to 50 bar and ambient temperature 5 to 60 °C. It is used when installing compressed air preparation units.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PAML-MB-90-HP3 mounting bracket secures the air preparation unit to a wall, frame or machine bed. At a glance: size 90 and operating pressure 0 to 50 bar.
Benefits
- Operating pressure 0 to 50 bar
- Suitable for ambient temperatures of 5 to 60 °C
- PWIS conformity VDMA24364-B2-L
- CRC 2: designed for moderate corrosion stress
- RoHS-compliant
Application
It is used when installing compressed air preparation units. The PAML-MB-90-HP3 works with compressed air to ISO 8573-1:2010 [-:-:-].
Technical data
| Type | PAML-MB-90-HP3 |
|---|---|
| Festo part number | 1367323 |
| Size | 90 |
| Nominal size DN | 36 |
| Series | L |
| Operating pressure | 0 to 50 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364-B2-L |
| Storage temperature | -10 to 60 °C |
| Medium temperature | 5 to 60 °C |
| Ambient temperature | 5 to 60 °C |
| Product weight | 300 g |
| Note on materials | RoHS-compliant |
| Seal material | NBR |
| Module connector material | wrought aluminium alloy |
| Screw material | stainless steel |
| Bracket material | wrought aluminium alloy |
| Weight | 0.32 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PAML-MB-90-HP3 |
| EAN | 4052568263010 |
| Zolltarifnummer | 76169990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 50 |
| Temperaturbereich | 5-60 °C |
| Temperature (max.) | 60 |
