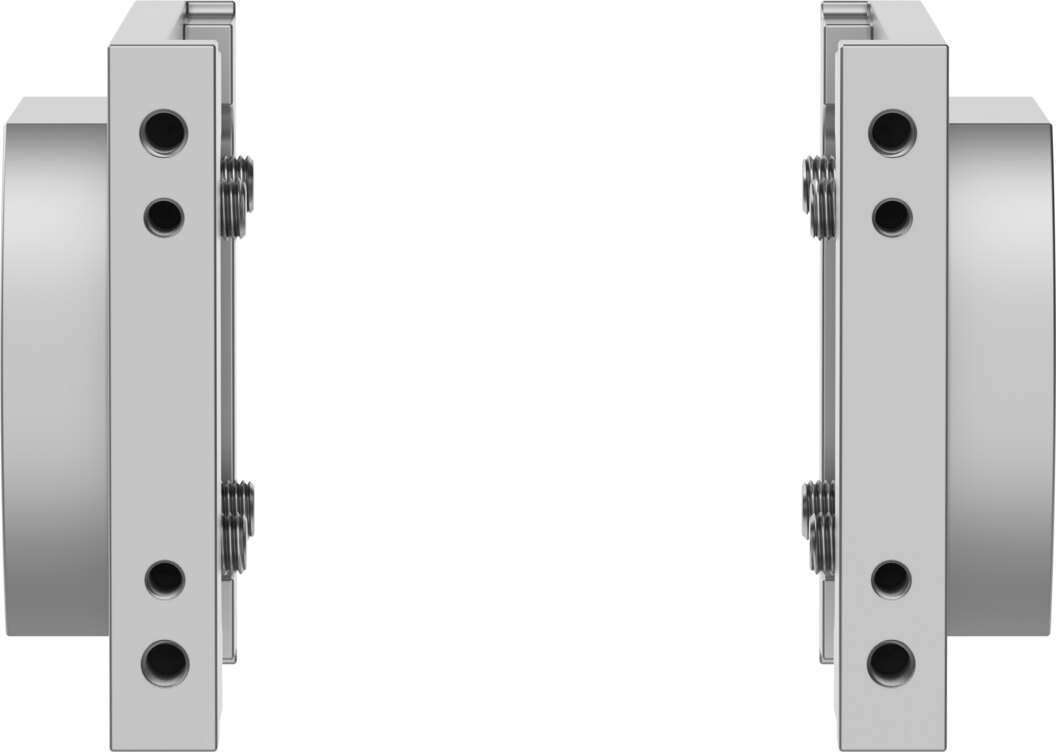

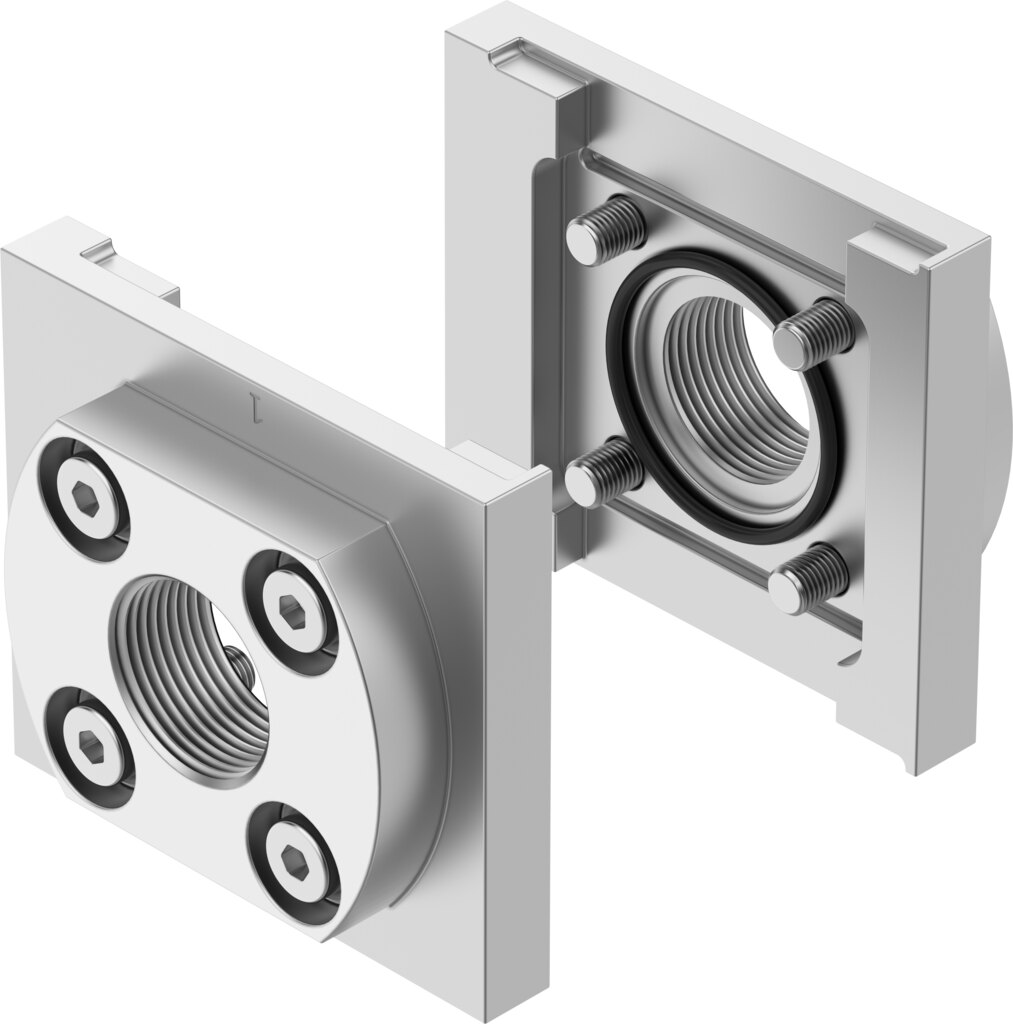

Sub-base PAML-CP-90-HP3-G114 - Festo 1448978
Net
excl. VAT
€762.84
Item
FES-1448978
Manufacturer no.
PAML-CP-90-HP3-G114
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 90 |
|---|---|
| Nominal size DN | 36 |
| Series | L |
| Operating pressure | 0 ... 50 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -10 ... 60 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | 5 ... 60 °C |
| Ambient temperature | 5 ... 60 °C |
| Product weight | 500 g |
| Pneumatic connection, port 1 | G1 1/4 |
| Pneumatic connection, port 2 | G1 1/4 |
| Note on materials | RoHS compliant |
| Material sub-base | Wrought aluminium alloy |
| Material seals | NBR |
| Material screws | Stainless steel |
| Weight | 0.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PAML-CP-90-HP3-G114 |
| EAN | 4052568263041 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
