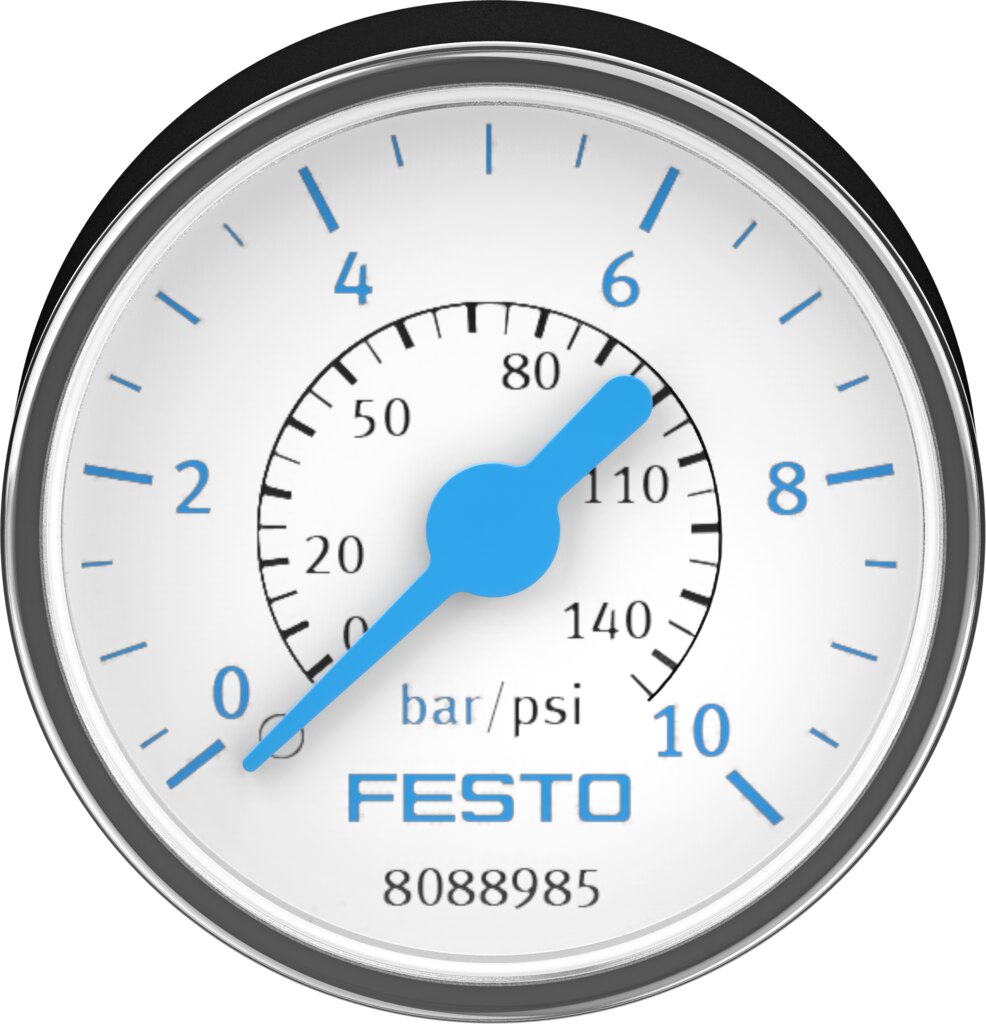

Pressure gauge 0 to 10 bar Ø 26 mm G1/8 with sealing ring class 4 PAGN-26-10-G18S - Festo 8088985
The pressure gauge PAGN-26-10-G18S displays the system pressure in the range 0 to 10 bar, nominal size 26. Connection G1/8 with sealing ring (rear, centred), accuracy class 4, in-line installation, double scale, bar (external), psi (inner scale), degree of protection IP43.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The pressure gauge PAGN-26-10-G18S displays the system pressure in the range 0 to 10 bar, nominal size 26.
Benefits
- Display range 0 to 10 bar, double scale, bar (external), psi (inner scale)
- Accuracy class 4
- Nominal size 26, in-line installation
- Connection G1/8 with sealing ring, stud made of ABS
- Housing made of ABS, window made of PS
- Ambient and medium temperature -5 to 50 °C
Applications
Measuring media for the PAGN-26-10-G18S: inert gases, neutral liquids, no acetylene, no oxygen. Installation: in-line installation. Alternating load factor 0.66.
Technical data
| Feature | Value |
|---|---|
| Indicating range | 0 to 10 bar |
| Nominal size of pressure gauge | 26 |
| Design | Bourdon tube pressure gauge |
| Type of mounting | In-line installation |
| Operating medium | Inert gases, neutral liquids |
| Note on operating and pilot medium | No acetylene, no oxygen |
| Operating pressure | 0 to 10 bar |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 4 |
| Degree of protection | IP43 |
| Storage temperature | -5 to 50 °C |
| Media temperature | -5 to 50 °C |
| Ambient temperature | -5 to 50 °C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS compliant |

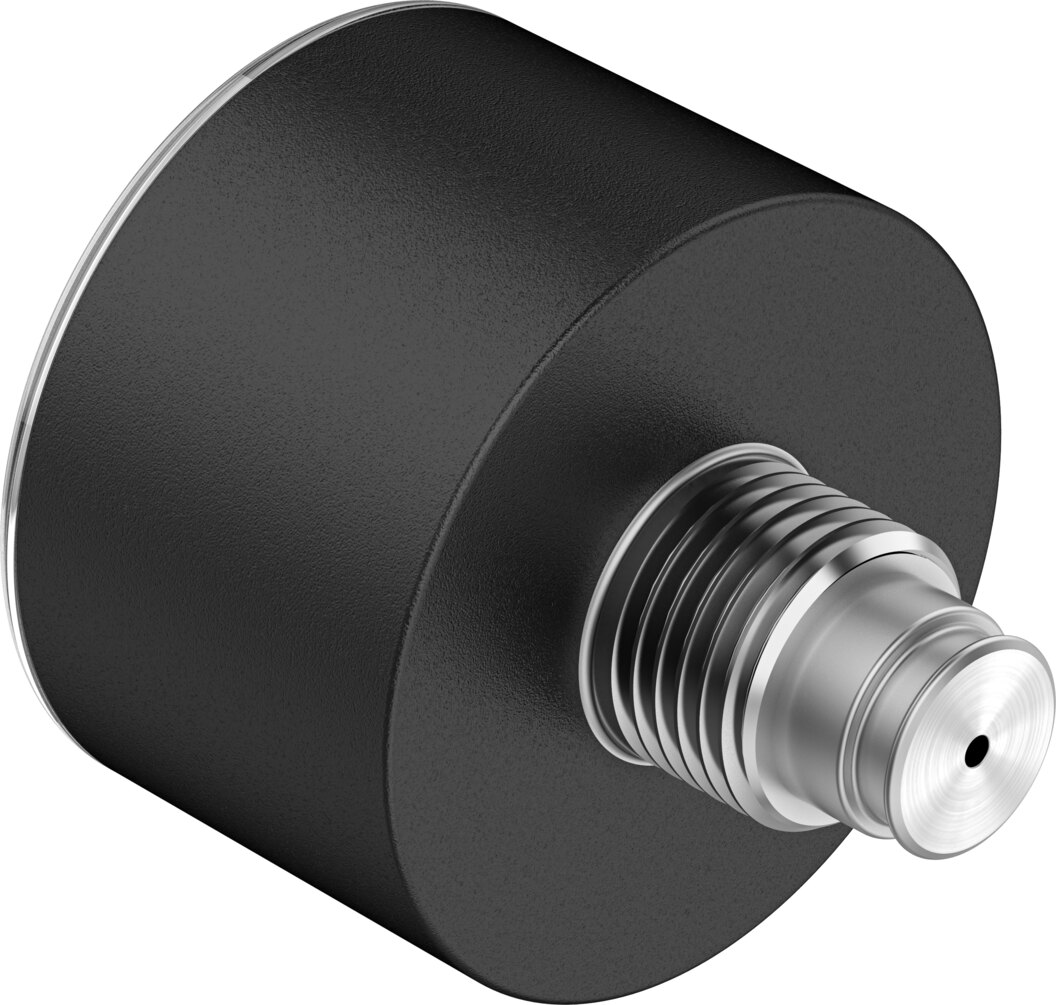

| Position of connection | Rear, centred |
| Pneumatic connection | G1/8 with sealing ring |
| Material in contact with the medium | Brass |
| Material screwed plug | ABS |
| Material housing | ABS |
| Material window | PS |
| Housing colour | Black |
| Scale | Double scale, Bar (external), psi (inner scale) |
| Type | PAGN-26-10-G18S |
| Festo part number | 8088985 |
| Weight (price list) | 10 g |
| Weight | 0.01 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PAGN-26-10-G18S |
| EAN | 4052568572914 |
| Zolltarifnummer | 90262040 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Thread | G 1/8 |
| Measuring range max. [bar] | 10 |
| Anzeigebereich [bar] | 0 bis 10 |
| Medientemperatur [°C] | -5 bis 50 |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP43 |
| Temperature (max.) | 50 |
