Festo
Vacuum generator OVEH-7-H-Q6-G18-UA-C-PNLK-SR12-HRC - Festo 8205192
Item FES-8205192
€1,656.00
Images are examples, some edited with AI. The technical data are authoritative. AI notice

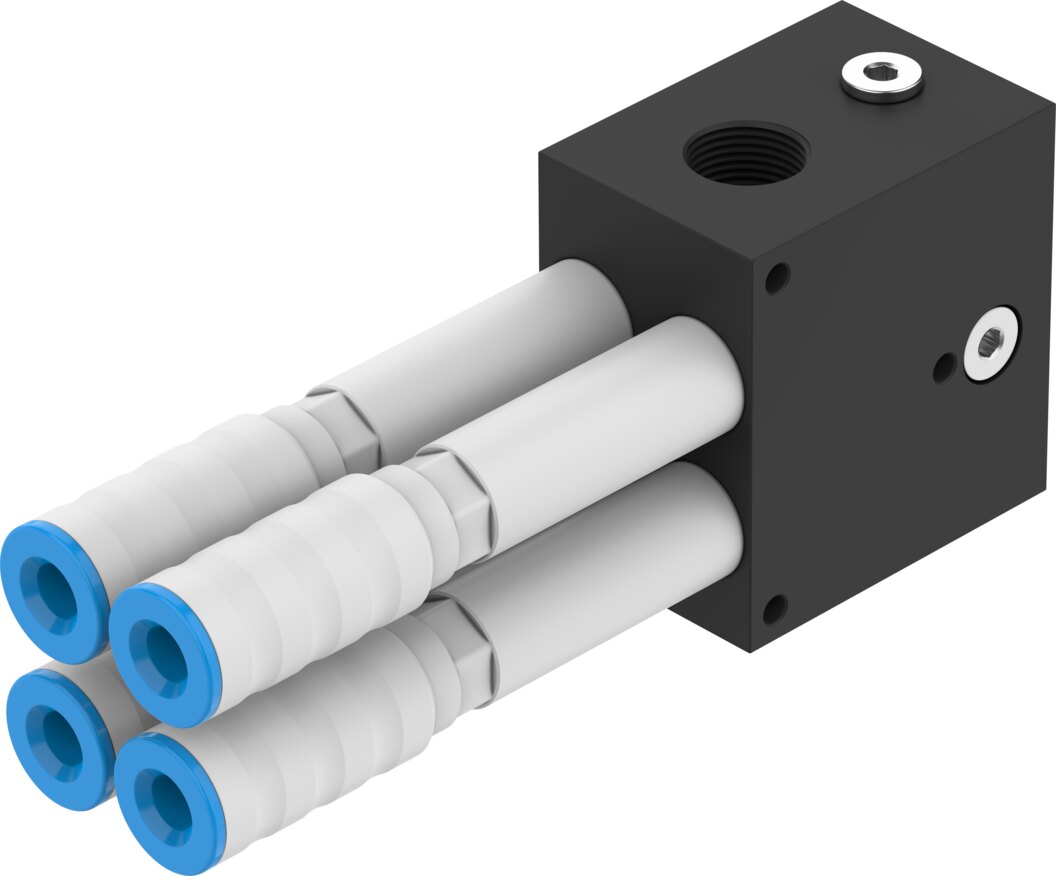

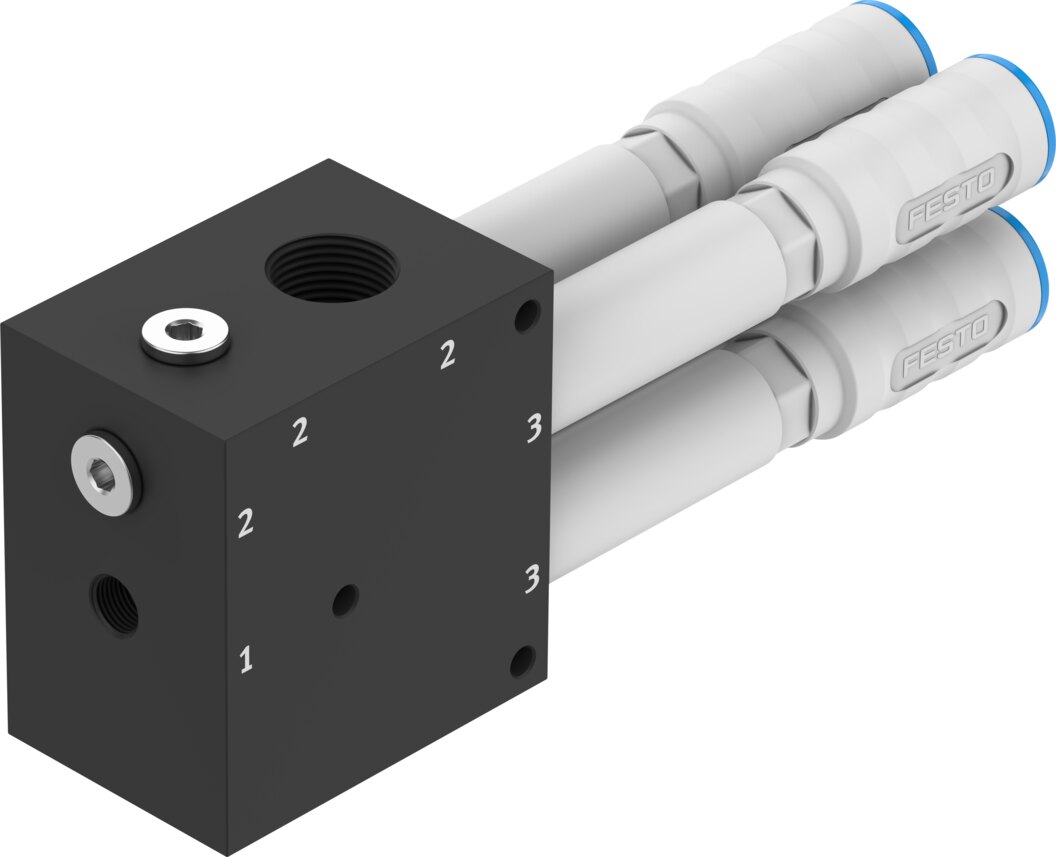

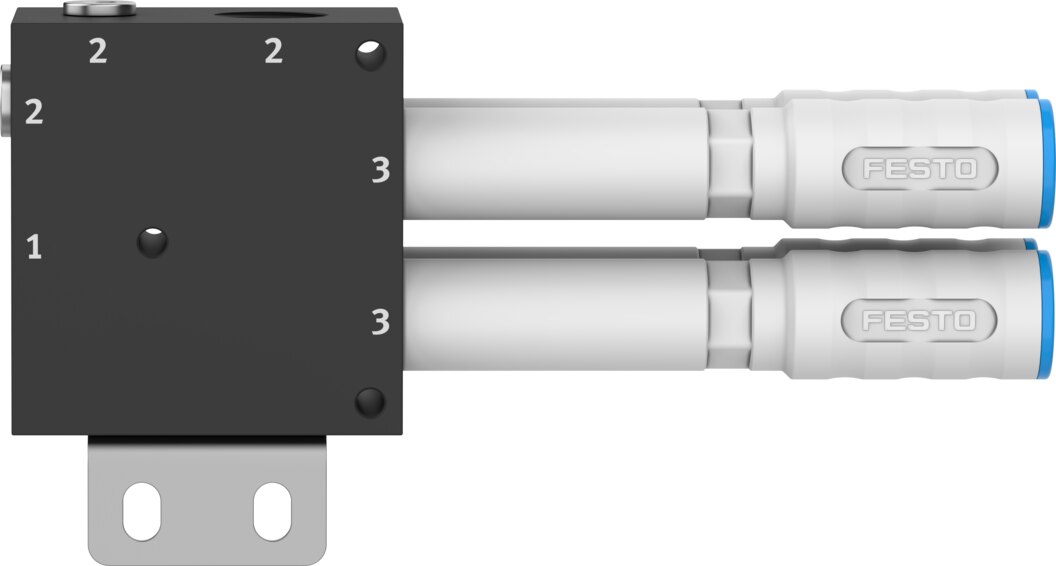

Vacuum generator OVPN-26-L3-PG14-G34-UA - Festo 8199150
Net
excl. VAT
€924.21
Item
FES-8199150
Manufacturer no.
OVPN-26-L3-PG14-G34-UA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, Laval nozzle | 2.6 mm |
|---|---|
| Grid dimension | 60 mm |
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High suction rate |
| Integrated function | Open silencer |
| Design | Vacuum generator, 3-stage |
| Operating pressure for max. suction flow rate | 8 bar |
| Operating pressure | 1 ... 8 bar |
| Operating pressure for max. vacuum | 7.9 bar |
| Max. vacuum | 81 % |
| Nominal operating pressure | 6 bar |
| Max. suction flow rate against atmosphere | 960 l/min |
| Air supply time at nominal operating pressure | 0.1 s |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 0 ... 60 °C |
| Recommended cleaning/purification | Soapsuds (except silencers) |
| Sound pressure level at nominal operating pressure | 69 dB(A) |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 1000 g |
| Type of mounting | With mounting bracket |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 3 | Open silencer |
| Vacuum connection | G3/4 |
| Material connecting thread | POM |
| Material seals | NBR |
| Material receiver nozzle | Reinforced PA |
| Material housing | POM |
| Material silencer | Reinforced PA, Polyurethane foam |
| Material screws | High-alloy stainless steel |
| Material transmitter nozzle | Reinforced PA |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVPN-26-L3-PG14-G34-UA |
| EAN | 4052568661199 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
