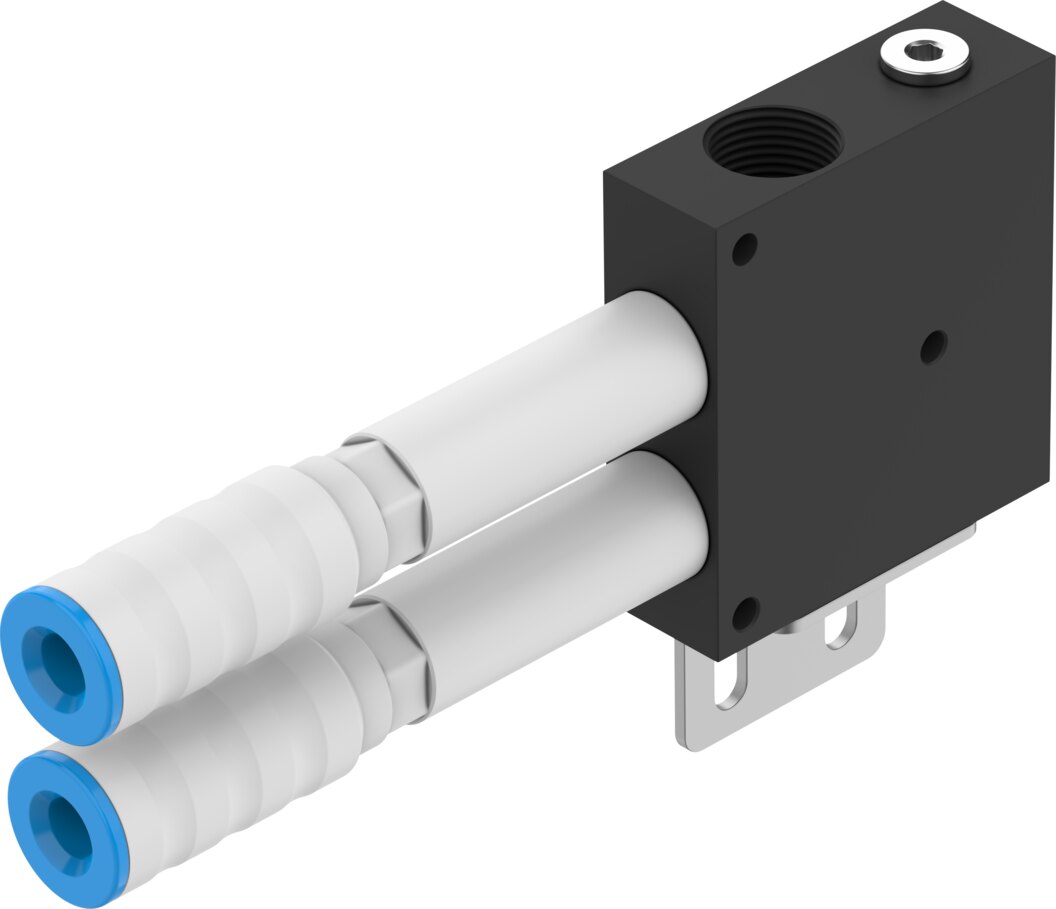

3-stage vacuum generator Laval nozzle 2 mm 530 l/min OVPN-20-L3-PG14-G34-UA - Festo 8199145

Festo ✓ Original product Brand new

With a 2 mm Laval nozzle, the vacuum generator OVPN-20-L3-PG14-G34-UA reaches up to 81 % vacuum at a max. suction flow of 530 l/min. Connections are G1/4 for compressed air and G3/4 for vacuum, at 1 to 8 bar operating pressure. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Net
€510.11
excl. VAT
Item FES-8199145
Manufacturer no. OVPN-20-L3-PG14-G34-UA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6 bar nominal operating pressure, 2 mm Laval nozzle, design 3-stage vacuum generator: the Festo vacuum generator OVPN-20-L3-PG14-G34-UA at a glance. Ejector characteristic: high suction rate.

Benefits

  • Vacuum up to 81 %, reached at 7.9 bar operating pressure
  • Suction flow up to 530 l/min against atmosphere, at 8 bar operating pressure
  • Clean production: suitable for battery production (F1a), LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Product weight 510 g, grid dimension 29.4 mm
  • Corrosion resistance class 2 - Moderate corrosion stress
  • Release time 0.19 s at nominal operating pressure 6 bar

Applications

The high suction flow helps with porous or air-permeable parts such as cardboard, wood or textiles and with large suction cup volumes. Type of mounting: with mounting bracket. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle2 mm
Grid dimension29.4 mm
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh suction rate
Integrated functionOpen silencer
Design3-stage vacuum generator
Operating pressure for maximum suction flow rate8 bar
Operating pressure1 to 8 bar
Operating pressure for maximum vacuum7.9 bar
Maximum vacuum81 %
Nominal operating pressure6 bar
Maximum suction flow rate against atmosphere530 l/min
Release time at nominal operating pressure0.19 s
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Media temperature0 to 60 °C
Recommended cleaning agentSoapy water (except silencer)
Sound pressure level at nominal operating pressure64 dB(A)
Ambient temperature0 to 60 °C
Product weight510 g
Type of mountingWith mounting bracket

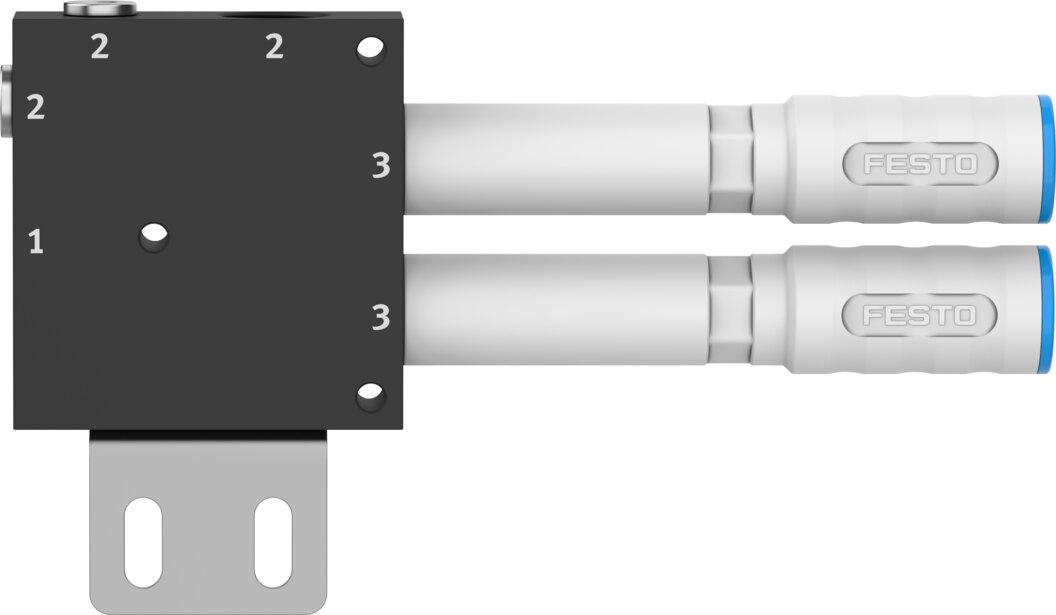

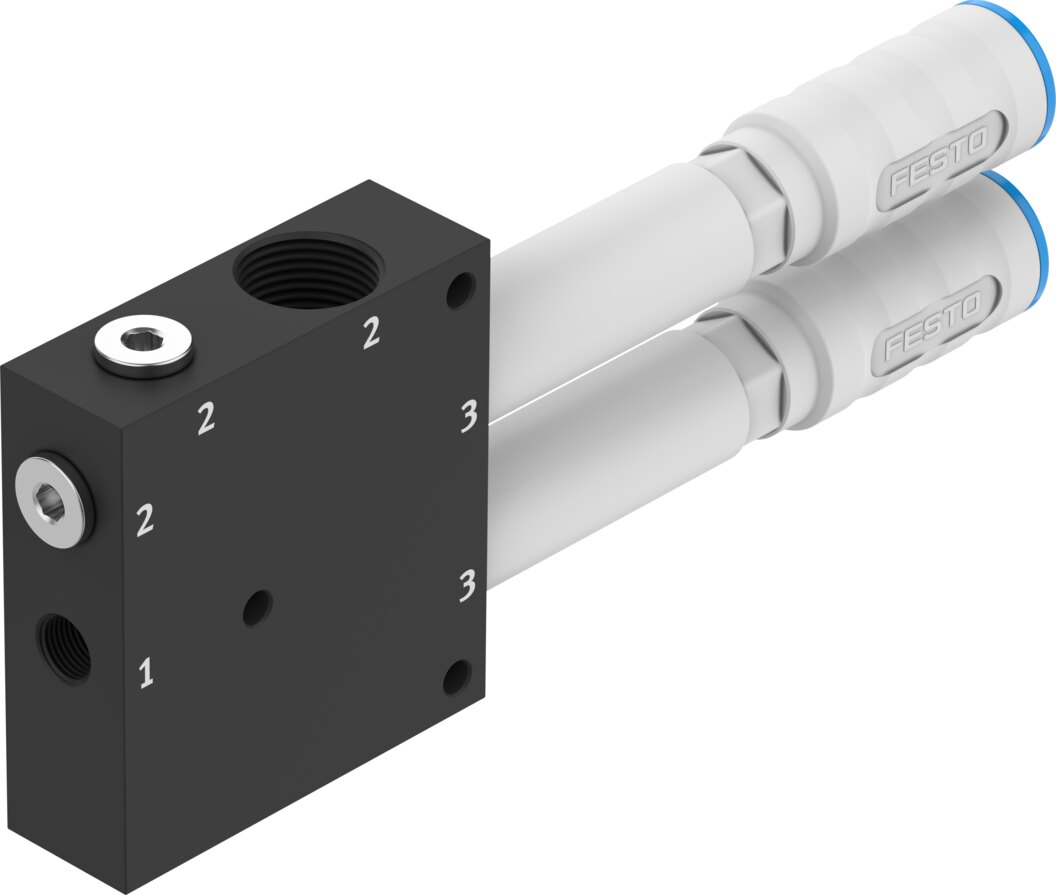

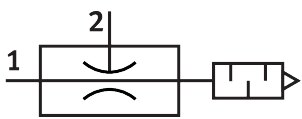

Pneumatic connection, port 1G1/4
Pneumatic connection, port 3Open silencer
Vacuum connectionG3/4
Material connecting threadPOM
Material sealsNBR
Material receiver nozzleReinforced PA
Material housingPOM
Material silencerReinforced PA, Polyurethane foam
Material screwsHigh-alloy stainless steel
Material transmitter nozzleReinforced PA
Weight0.6 kg
ManufacturerFesto
Hersteller-NrOVPN-20-L3-PG14-G34-UA
EAN4052568661151
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Nominal size DN [mm]2
Seal materialNBR
MediumCompressed air
Flow rate [l/min]530
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Temperaturbereich0-60 °C
Temperature (max.)60
