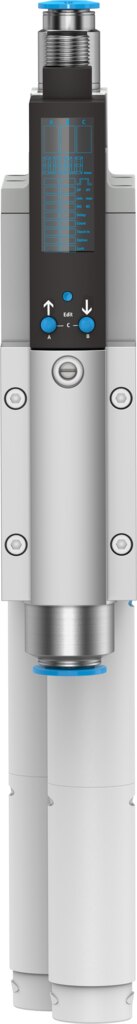

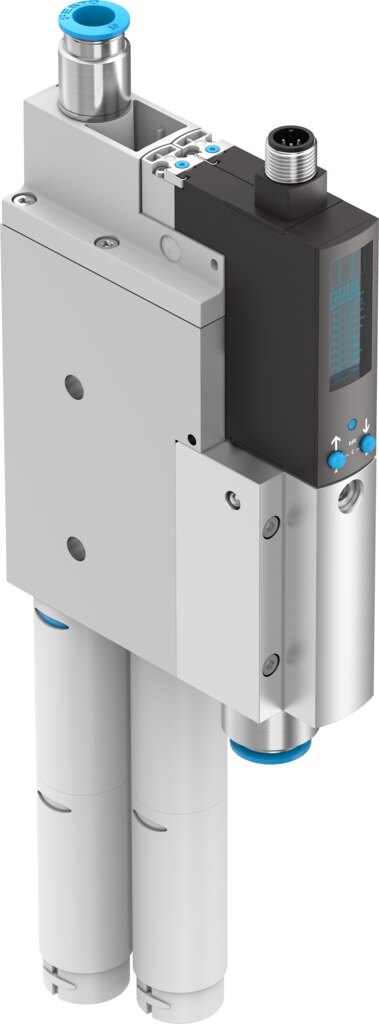

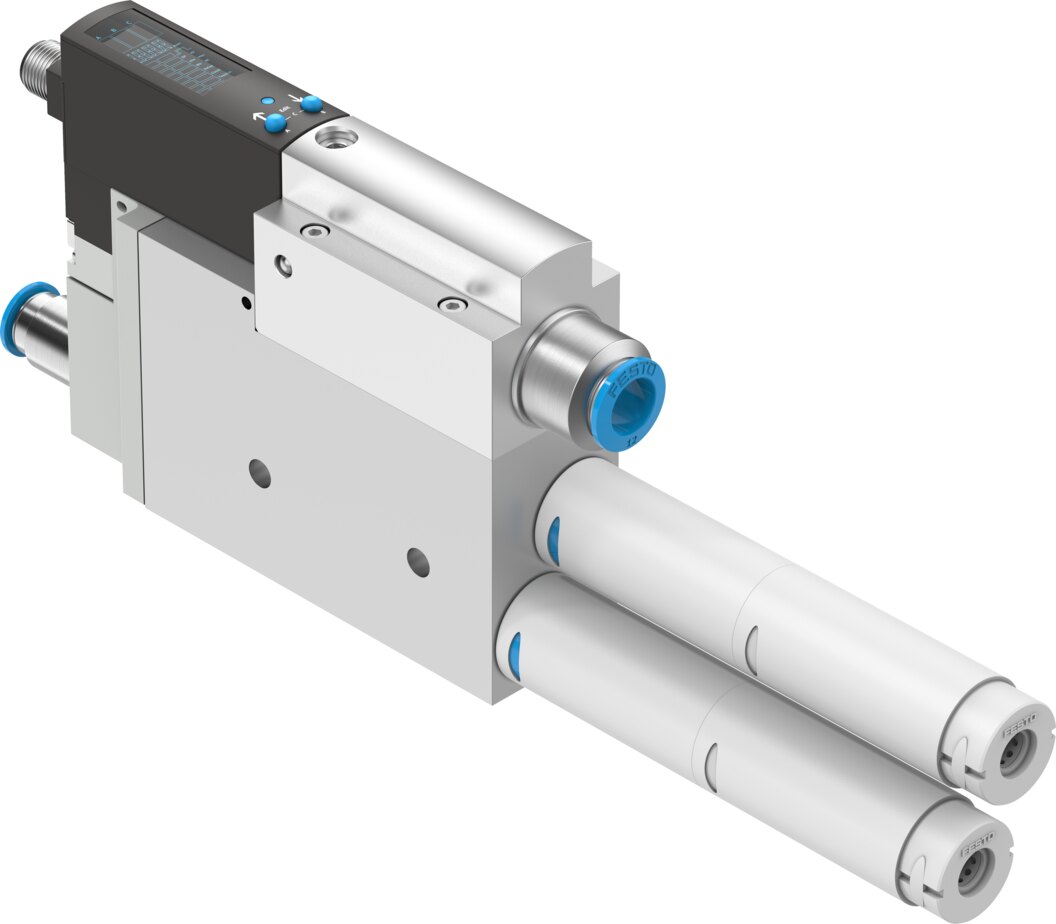

Vacuum generator OVEM-30-H-C-QO-CE-N-LK - Festo 8070098
Net
excl. VAT
€921.05
Item
FES-8070098
Manufacturer no.
OVEM-30-H-C-QO-CE-N-LK
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, Laval nozzle | 3 mm |
|---|---|
| Grid dimension | 36 mm |
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High vacuum, Standard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting, Additionally via operating buttons |

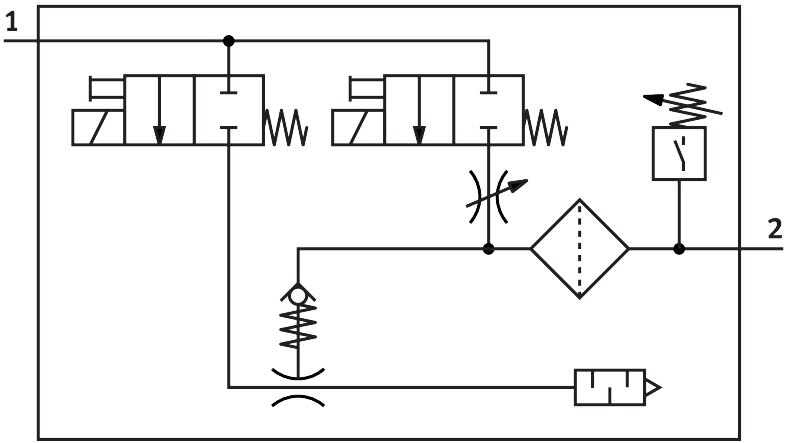

| Integrated function | Ejector pulse valve, electric, Flow control, On/off valve, electric, Filter, Air-saving function, electric, Check valve, Open silencer, Vacuum switch |
| Design | Modular |
| Short circuit current rating | Yes |
| Measured variable | Relative pressure |
| Measuring principle | Piezoresistive |
| Switching element function | N/C contact, N/O contact |
| Switching function | Window comparator, Threshold value comparator |
| Valve function | Closed |
| Reverse polarity protection | For all electrical connections |
| Standard switching input | IEC 61131-2 |
| Display type | 4-place alphanumeric, Back-lit LCD |
| Indicating range | -0.999 ... 0 bar |
| Displayable units | bar |
| Setting range hysteresis | -0.9 ... 0 bar |
| Setting options | IO-Link®, Via display and buttons |
| Switching position indicator | LCD |
| Switching status indication | Optical |
| Setting range threshold value | -0.999 ... 0 bar |
| Operating pressure | 2 ... 8 bar |
| Operating pressure for max. vacuum | 4 bar |
| Max. vacuum | 93 % |
| Nominal operating pressure | 6 bar |
| Max. suction flow rate against atmosphere | 181 l/min |
| Air supply time at nominal operating pressure | 0.2 s |
| Operational voltage range DC | 20.4 ... 27.6 V |
| Duty cycle | 100% |
| Insulation voltage | 50 V |
| No-load supply current | 70 mA |
| Max. output current | 100 mA |
| Off-state current | 0.1 mA |
| Switching output | 2xPNP |
| Voltage drop | 1.8 V |
| Characteristic coil data | 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W |
| Immunity to surge | 0.8 kV |
| Overload protection | Available |
| Pollution degree | 3 |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | 0 ... 50 °C |
| Relative air humidity | 5 - 85% |
| Sound pressure level at nominal operating pressure | 75 dB(A) |
| Degree of protection | IP65 |
| Protection class | III |
| Ambient temperature | 0 ... 50 °C |
| Max. tightening torque | 0.8 Nm with female thread, 2.5 Nm with through-hole |
| Product weight | 825 g |
| Pressure measuring range | -1 ... 0 bar |
| Accuracy in ± % FS | 3 %FS |
| Reproducibility of switching values FS | 0.6 % |
| Protocol | IO-Link® |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, Profile | Smart sensor profile |
| IO-Link, Function classes | Binary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, Port class | A |
| IO-Link, Process data length OUT | 1 bytes |
| IO-Link, Process data content OUT | 1 bit (ejector pulse ON/OFF), 1 bit (vacuum ON/OFF) |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | 14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring) |
| IO-Link, Min. cycle time | 3.5 ms |
| IO-Link, Data storage required | 500 byte |
| IO-Link, Device ID | 0x00003E |
| Electrical connection | M12x1, Plug |
| Protection against tampering | Electronic interlock |
| Type of mounting | With through-hole, With female thread, With accessories |
| Pneumatic connection, port 1 | QS-10 |
| Pneumatic connection, port 3 | Silencer |
| Vacuum connection | QS-12 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material receiver nozzle | POM |
| Material filter | Fabric, PA, Sintered steel |
| Material filter housing | Reinforced PA |
| Material housing | Wrought aluminium alloy, Reinforced PA |
| Material adjusting screw | Steel |
| Material silencer | Wrought aluminium alloy, POM, Polyurethane foam |
| Material screws | Steel |
| Material screen | PA |
| Material connector housing | Brass, nickel-plated |
| Material electrical contact | Gold-plated brass |
| Material pins | Steel |
| Material transmitter nozzle | Wrought aluminium alloy |
| Material keypad | TPE-U |
| Material fitting | Brass, nickel-plated |
| Weight | 0.95 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVEM-30-H-C-QO-CE-N-LK |
| EAN | 4052568300647 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
