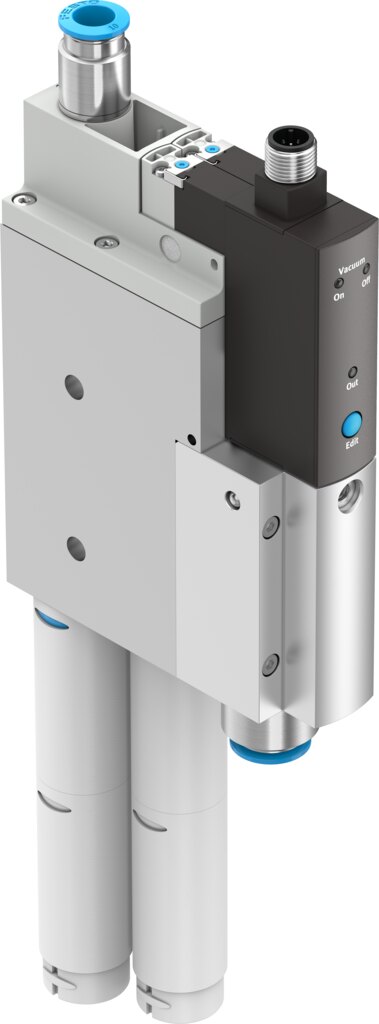

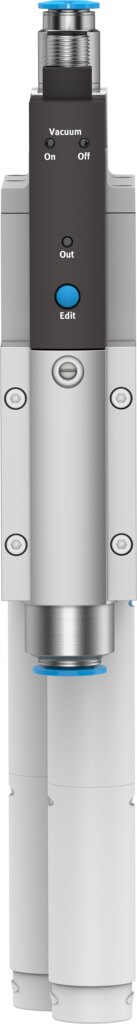

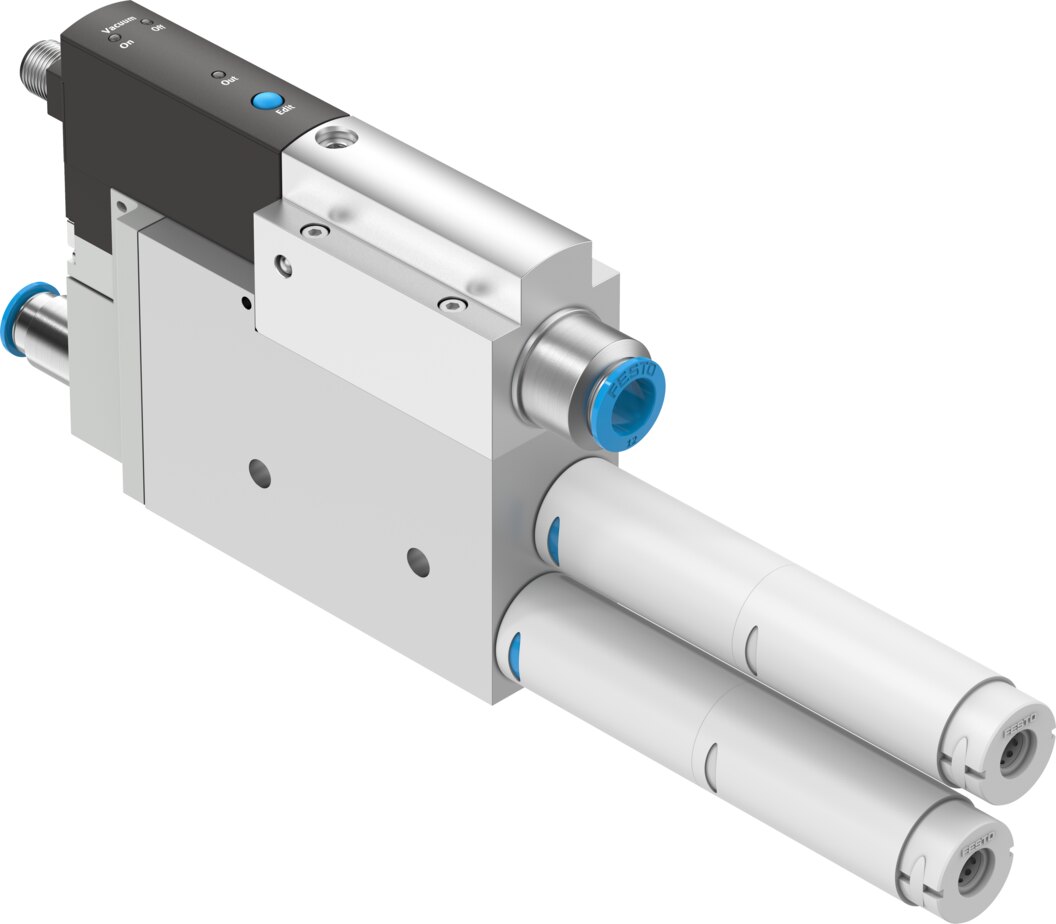

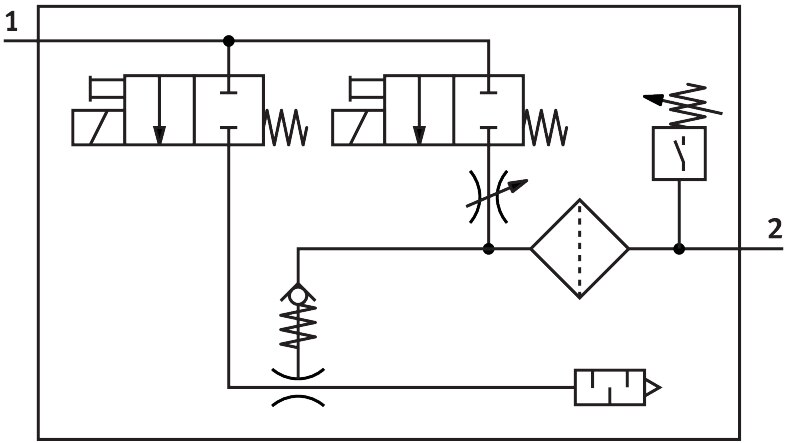

Vacuum generator with switch-on valve and vacuum switch Laval nozzle 2 mm vacuum 93 % OVEM-20-H-C-QO-CE-N-1P - Festo 8070091

Festo ✓ Original product Brand new

With a 2 mm Laval nozzle, the vacuum generator OVEM-20-H-C-QO-CE-N-1P reaches up to 93 % vacuum at a max. suction flow of 98 l/min. Integrated functions: electric ejector pulse valve, flow control, electric switch-on valve, filter and non-return valve. Degree of protection IP65, electrical connection M12x1, Plug.

Net
€647.46
excl. VAT
Item FES-8070091
Manufacturer no. OVEM-20-H-C-QO-CE-N-1P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6 bar nominal operating pressure, 2 mm Laval nozzle, design modular: the Festo vacuum generator OVEM-20-H-C-QO-CE-N-1P at a glance. Ejector characteristic: high vacuum, Standard.

Benefits

  • Vacuum up to 93 %, reached at 4 bar operating pressure
  • Suction flow up to 98 l/min against atmosphere
  • Vacuum monitoring with integrated vacuum switch: switching output PNP, LED
  • Fast release via ejector pulse, release time 0.2 s at nominal operating pressure
  • Electrics: degree of protection IP65, connection M12x1, Plug, 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
  • Sound pressure level 62 dB(A) at nominal operating pressure, open silencer

Applications

The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Fastening: with through-hole, With female thread, With accessories. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle2 mm
Grid dimension36 mm
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40 µm
Manual overrideNon-detenting
Integrated functionElectric ejector pulse valve, Flow control, Electric switch-on valve, Filter, Non-return valve, Open silencer, Vacuum switch
DesignModular
Short circuit current ratingYes
Measured variableRelative pressure
Measuring principlePiezoresistive
Switching element functionN/O contact
Switching functionThreshold value comparator, Threshold value with fixed hysteresis
Valve functionClosed
Reverse polarity protectionFor all electrical connections
Standard switching inputIEC 61131-2
Display typeLED
Setting optionsTeach-in
Switching position indicatorLED
Switching status indicationOptical
Setting range threshold value-1 to 0 bar
Operating pressure2 to 8 bar
Operating pressure for maximum vacuum4 bar
Maximum vacuum93 %
Nominal operating pressure6 bar
Maximum suction flow rate against atmosphere98 l/min
Release time at nominal operating pressure0.2 s
Operational voltage range DC20.4 to 27.6 V
Duty cycle100 %
Inductive protective circuitAdapted to MZ, MY, ME coils
Insulation voltage50 V
No-load supply current80 mA
Maximum output current100 mA
Off-state current0.1 mA
Switching outputPNP
Voltage drop1.5 V
Characteristic coil data24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
Immunity to surge0.8 kV
Overload protectionAvailable
Pollution degree3
ApprovalRCM Mark, c UL us - Listed (OL)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK regulations for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature0 to 50 °C
Relative air humidity5 - 85 %
Sound pressure level at nominal operating pressure62 dB(A)
Degree of protectionIP65
Protection classIII
Ambient temperature0 to 50 °C
Maximum tightening torque0.8 Nm with female thread, 2.5 Nm with through-hole
Product weight815 g
Pressure measuring range-1 to 0 bar
Accuracy in ± % FS0.5 %FS
Hysteresis0.02 bar
Reproducibility of switching values FS0.6 %
Switching logic for inputsPNP (positive switching)
Electrical connectionM12x1, Plug
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connection, port 1QS-10
Pneumatic connection, port 3Silencer
Vacuum connectionQS-12
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material receiver nozzlePOM
Material filterFabric, PA, Sintered steel
Material filter housingReinforced PA
Material housingWrought aluminium alloy, Reinforced PA
Material adjusting screwSteel
Material silencerWrought aluminium alloy, POM, Polyurethane foam
Material screwsSteel
Material connector housingBrass, nickel-plated
Material electrical contactBrass, gold-plated
Material pinsSteel
Material transmitter nozzleWrought aluminium alloy
Material keypadReinforced PA
Material fittingBrass, nickel-plated
Weight0.95 kg
ManufacturerFesto
Hersteller-NrOVEM-20-H-C-QO-CE-N-1P
EAN4052568300579
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]10
Nominal size DN [mm]2
Seal materialHNBR, NBR
MediumCompressed air
Functionclosed
Filter grade [µm]40
Operating voltage24 V DC
SeriesOVEM
Betriebsdruck max [bar]8
Pneumatic connectionQS-10
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
