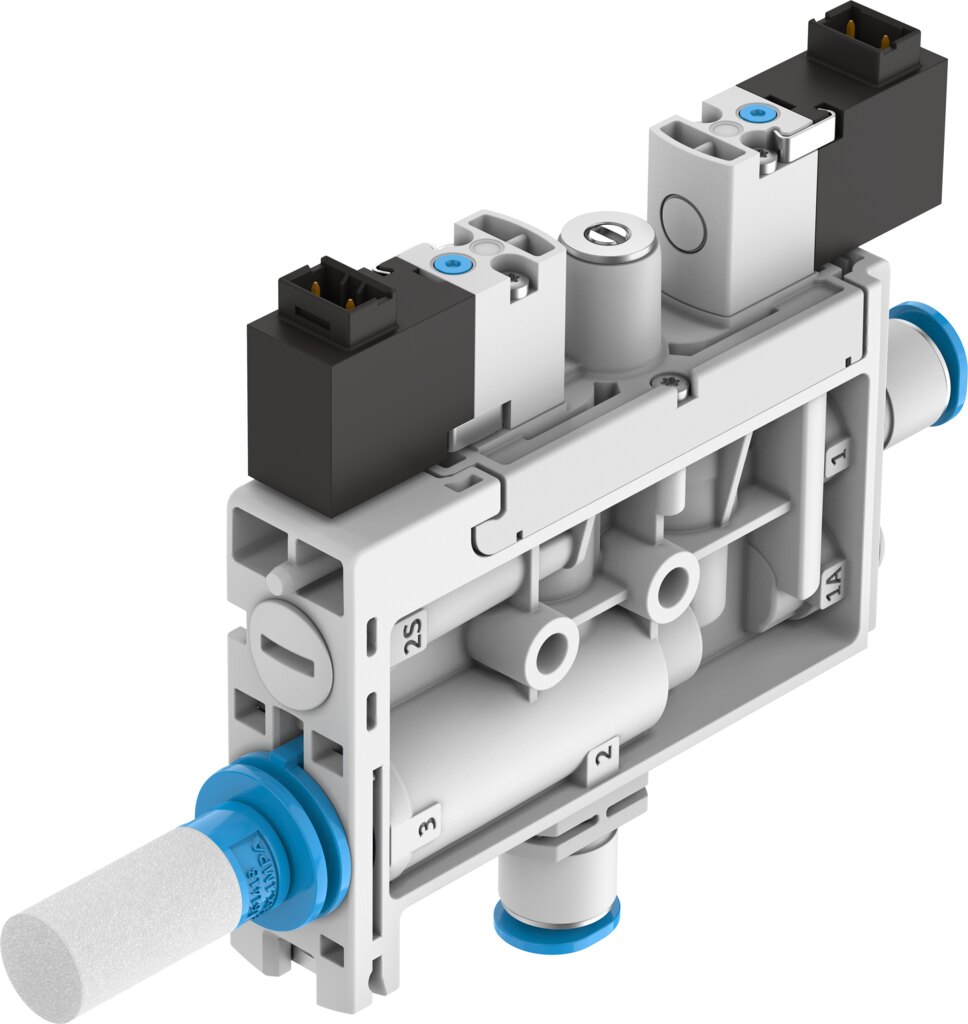

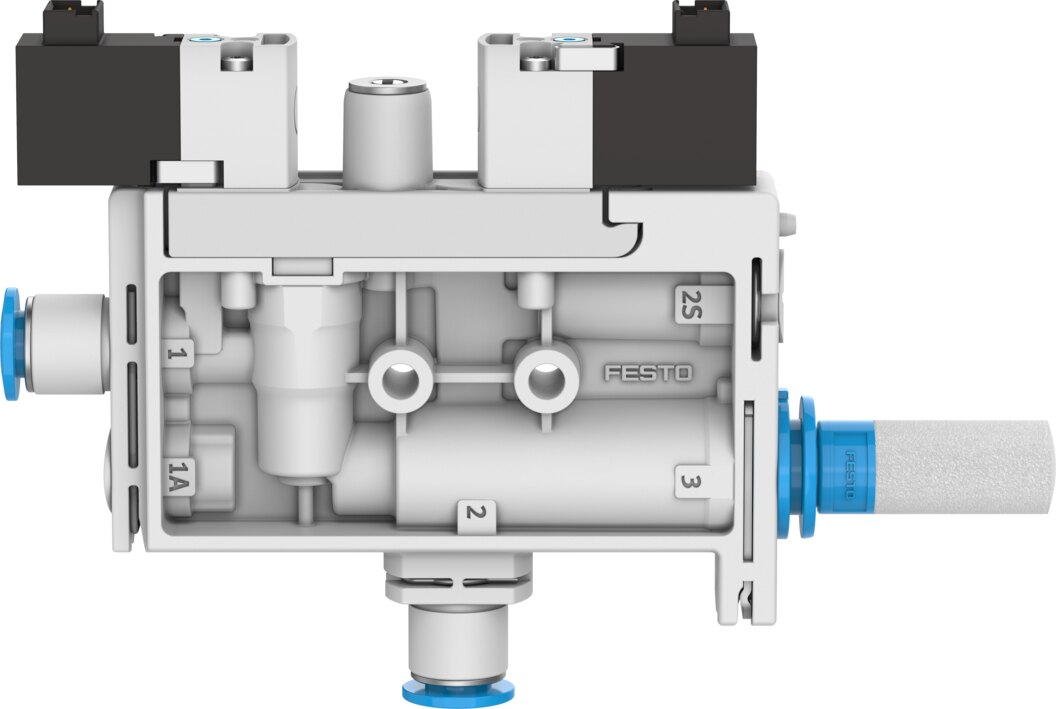

T-shape vacuum generator with switch-on valve and ejector pulse Laval nozzle 0.95 mm vacuum 92 % OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 - Festo 8142126
The vacuum generator OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 turns compressed air into up to 92 % vacuum and draws up to 21 l/min against atmosphere. Integrated functions: electric ejector pulse, flow control, electric switch-on valve and filter. Maximum vacuum is reached at an operating pressure of just 4.1 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At the heart of the OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 is a Laval nozzle of 0.95 mm nominal size, running on 2 to 7 bar at 4 bar nominal operating pressure. Ejector characteristic: high vacuum, Standard.
Benefits
- Vacuum up to 92 %, reached at 4.1 bar operating pressure
- Suction flow up to 21 l/min against atmosphere, at 4 bar operating pressure
- Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
- Product weight 58 g, grid dimension 15 mm
- Corrosion resistance class 2 - Moderate corrosion stress
- Electrics: degree of protection IP40, 24 V DC: 1.0 W
Applications
For dense surfaces where high vacuum defines the holding force, for example sheet metal, glass or film on a smooth carrier. Mounting: with through-hole. Lubricated operation is not possible.
Technical data
| Nominal size, Laval nozzle | 0.95 mm |
|---|---|
| Grid dimension | 15 mm |
| Silencer design | Closed |
| Mounting position | Any |
| Ejector characteristic | High vacuum, Standard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |

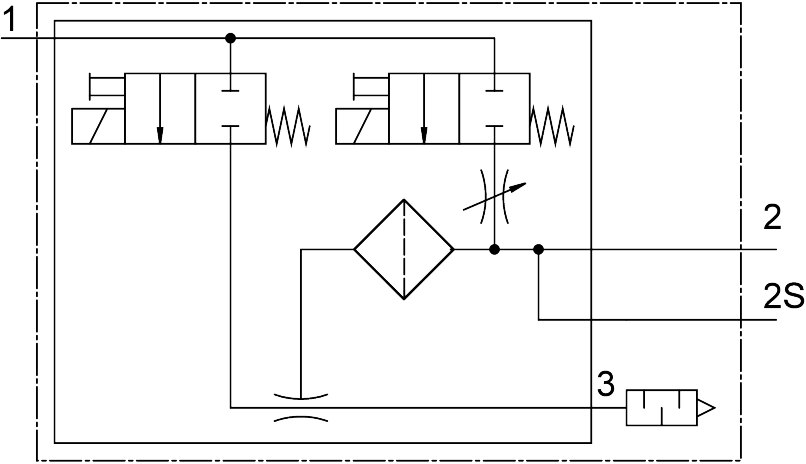

| Integrated function | Electric ejector pulse, Flow control, Electric switch-on valve, Filter, Closed silencer |
| Design | T-shape |
| Valve function | Closed |
| Operating pressure for maximum suction flow rate | 4 bar |
| Operating pressure | 2 to 7 bar |
| Operating pressure for maximum vacuum | 4.1 bar |
| Maximum vacuum | 92 % |
| Nominal operating pressure | 4 bar |
| Maximum suction flow rate against atmosphere | 21 l/min |
| Release time at nominal operating pressure with ejector pulse | 1 s |
| Operational voltage range DC | 21.6 to 26.4 V |
| Duty cycle | 100 % |
| Characteristic coil data | 24 V DC: 1.0 W |
| Approval | c UL us - Listed (OL) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | 0 to 50 °C |
| Sound pressure level at nominal operating pressure | 56 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Product weight | 58 g |
| Electrical connection input, function | Vacuum generation |
| Electrical connection input, connection type | 2x plugs |
| Electrical connection input, connector system | Plug pattern H |
| Electrical connection input, number of connections/cores | 2 |
| Input electrical connection, mounting type | Snap-locking |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | For tubing O.D. 4 mm |
| Pneumatic connection, port 3 | Closed silencer |
| Vacuum connection | For tubing O.D. 6 mm |
| Material connecting thread | POM |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material receiver nozzle | POM |
| Material filter | POM |
| Material housing | Reinforced PA |
| Material adjusting screw | Steel |
| Material silencer | Reinforced PA, PE |
| Material screws | Steel |
| Material transmitter nozzle | Wrought aluminium alloy |
| Weight | 0.085 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVEL-10-H-15-PQ-VQ6-UC-C-A-H3 |
| EAN | 4052568566708 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| For hose OD [mm] | 4 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | closed |
| Flow rate [l/min] | 21 |
| Filter grade [µm] | 40 |
| Operating voltage | 24 V DC |
| Series | OVEL |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
