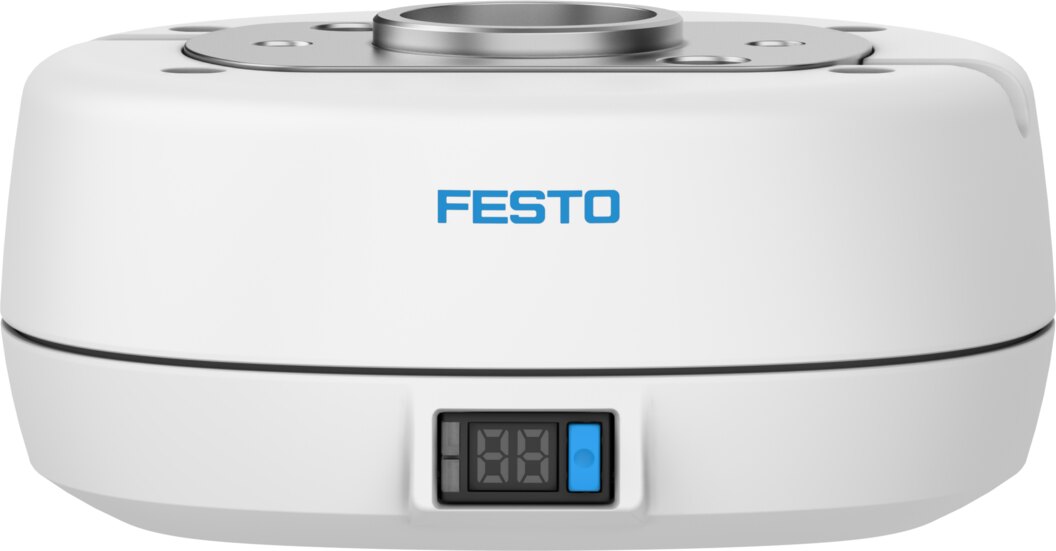

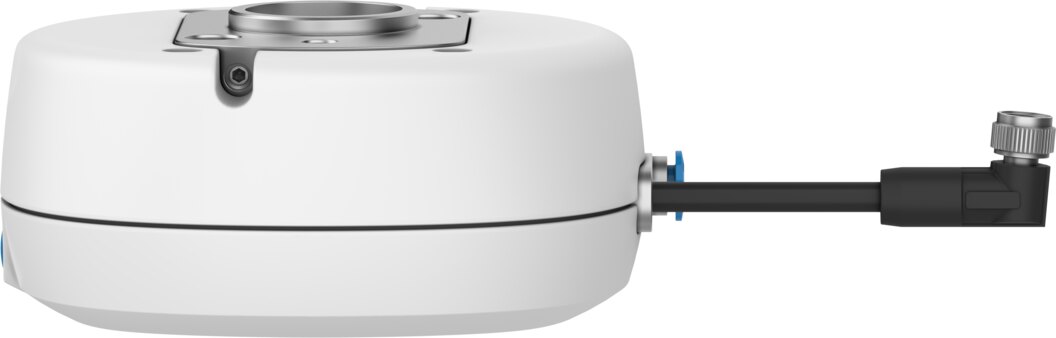

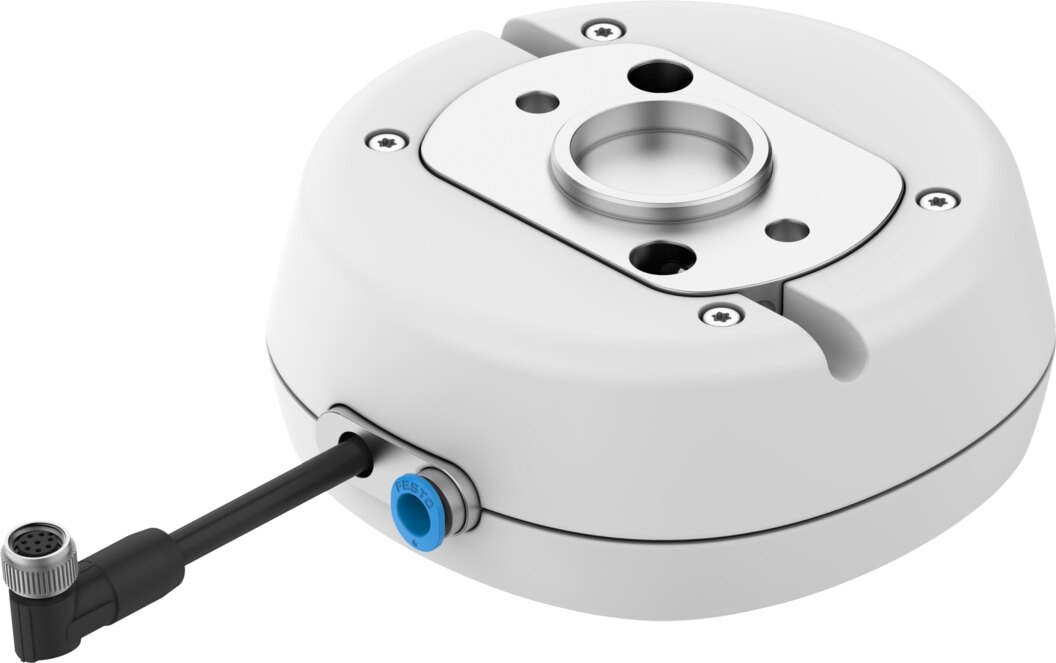

Vacuum generator for HRC with switch-on valve and pressure sensor Laval nozzle 0.95 mm 30 l/min OVEH-10-L-Q6-G18-UA-C-PNLK-SR12-HRC - Festo 8205194

Festo ✓ Original product Brand new

With a 0.95 mm Laval nozzle, the vacuum generator OVEH-10-L-Q6-G18-UA-C-PNLK-SR12-HRC reaches up to 85 % vacuum at a max. suction flow of 30 l/min. Integrated functions: electric ejector pulse, pressure sensor, electric switch-on valve and filter.

Net
€1,656.00
excl. VAT
Item FES-8205194
Manufacturer no. OVEH-10-L-Q6-G18-UA-C-PNLK-SR12-HRC
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

4 bar nominal operating pressure, 0.95 mm Laval nozzle, design human-robot collaboration (HRC): the Festo vacuum generator OVEH-10-L-Q6-G18-UA-C-PNLK-SR12-HRC at a glance. Ejector characteristic: high suction rate, Standard.

Benefits

  • Vacuum up to 85 %
  • Suction flow up to 30 l/min against atmosphere, at 6 bar operating pressure
  • Electrics: degree of protection IP40, 24 V DC: 1.0 W, IO-Link
  • Sound pressure level 55 dB(A) at nominal operating pressure, open silencer
  • Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Product weight 415 g

Applications

Intended for applications with leakage, for example porous workpieces such as cardboard or wood, and for evacuating large volumes quickly. Designed for human-robot collaboration (HRC). Type of mounting: with mounting kit, To ISO 9409. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle0.95 mm
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh suction rate, Standard
Grade of filtration40 µm
Manual overrideNone

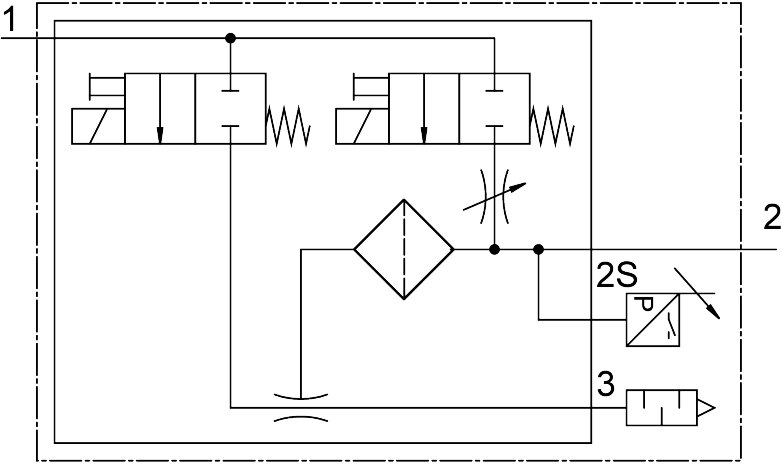

Integrated functionElectric ejector pulse, Pressure sensor, Electric switch-on valve, Filter, Closed silencer
DesignHuman-robot collaboration (HRC)
Short circuit current ratingYes
Measured variablePressure
Measuring principlePiezoresistive
Switching element functionN/C or N/O contact, switchable
Switching functionFreely programmable
Valve functionClosed
Reverse polarity protectionYes
Measurement methodPiezoresistive pressure sensor with display
Display typeLED indicator, 2 digits
Setting optionsIO-Link, Teach-in, Via display and buttons
Switching status indicationYellow LED
Operating pressure for maximum suction flow rate6 bar
Operating pressure2 to 7 bar
Maximum vacuum85 %
Nominal operating pressure4 bar
Maximum suction flow rate against atmosphere30 l/min
Release time at nominal operating pressure with ejector pulse0.4 s
Operational voltage range DC21.6 to 26.4 V
Duty cycle100 %
Maximum output current100 mA
Switching outputPNP/NPN switchable
Characteristic coil data24 V DC: 1.0 W
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK regulations for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature0 to 50 °C
Recommended cleaning agentSoapy water
Relative air humidityup to 93 % at 40 °C
Sound pressure level at nominal operating pressure55 dB(A)
Sound power level at nominal operating pressure66 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Product weight415 g
Pressure measuring range-1 to 0 bar
Accuracy in ± % FS1.5 %FS
Reproducibility of switching values FS0.3 %
ProtocolIO-Link
IO-Link, Protocol versionDevice V 1.1
IO-Link, ProfileSmart sensor profile
IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel
IO-Link, communication modeCOM2 (38.4 kBaud)
IO-Link, SIO-Mode supportYes
IO-Link, Port classA
IO-Link, Process data length OUT0 bytes
IO-Link, Process data length IN2 bytes
IO-Link, Process data content IN14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)
IO-Link, Minimum cycle time3 ms
IO-Link, Data storage required0.5 byte
Electrical connection 1, connection typeCable with socket
Electrical connection 1, cable outletAngled
Electrical connection 1, designRound
Electrical connection 1, connector systemM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of connections/cores8
Electrical connection 1, used connections/cores5
Electrical connection 1, tightening torque0.2 Nm
Electrical connection input, functionPower supply, Vacuum generation
Electrical connection output, functionDigital output
Cable characteristicSuitable for robot applications
Cable diameter5 mm
Cable diameter tolerance± 1 mm
Cable length0.3 m
Protection against tamperingPIN code
Type of mountingWith mounting kit, To ISO 9409

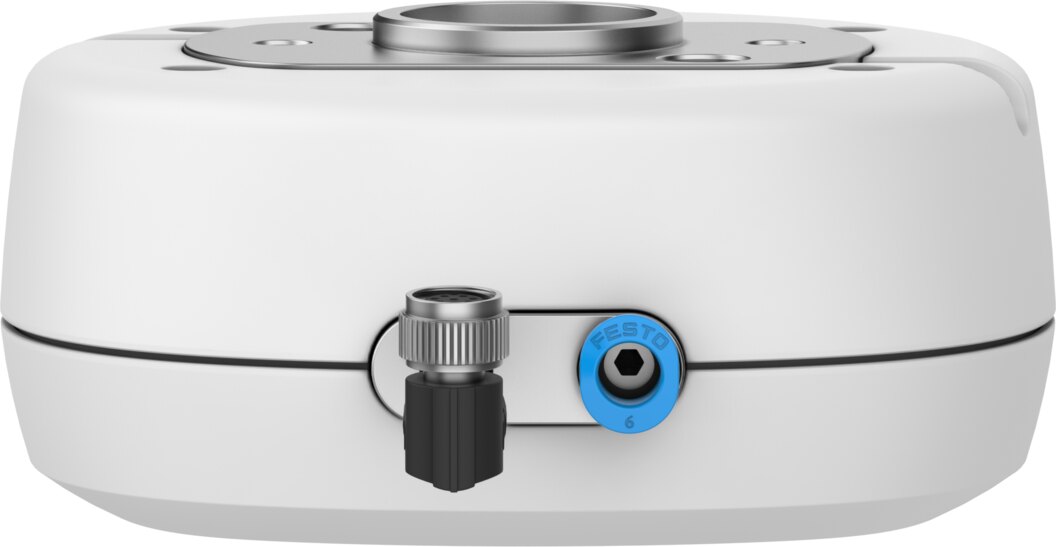

Pneumatic connection, port 1For tubing O.D. 6 mm
Pneumatic connection, port 3Open silencer
Vacuum connectionG1/8
Note on vacuum connectionAdditional accessories possible
Cable sheath colourBlack
Material connecting threadWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterPOM
Material housingReinforced PA
Material hollow boltWrought aluminium alloy
Material cable sheathPVC
Material adjusting screwSteel
Material silencerReinforced PA, PE
Material screwsSteel
Material transmitter nozzleWrought aluminium alloy
ManufacturerFesto
Hersteller-NrOVEH-10-L-Q6-G18-UA-C-PNLK-SR12-HRC
EAN4052568825317
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]6
Seal materialNBR
MediumCompressed air
Functionclosed
Flow rate [l/min]30
Filter grade [µm]40
Operating voltage24 V DC
Betriebsdruck max [bar]7
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
