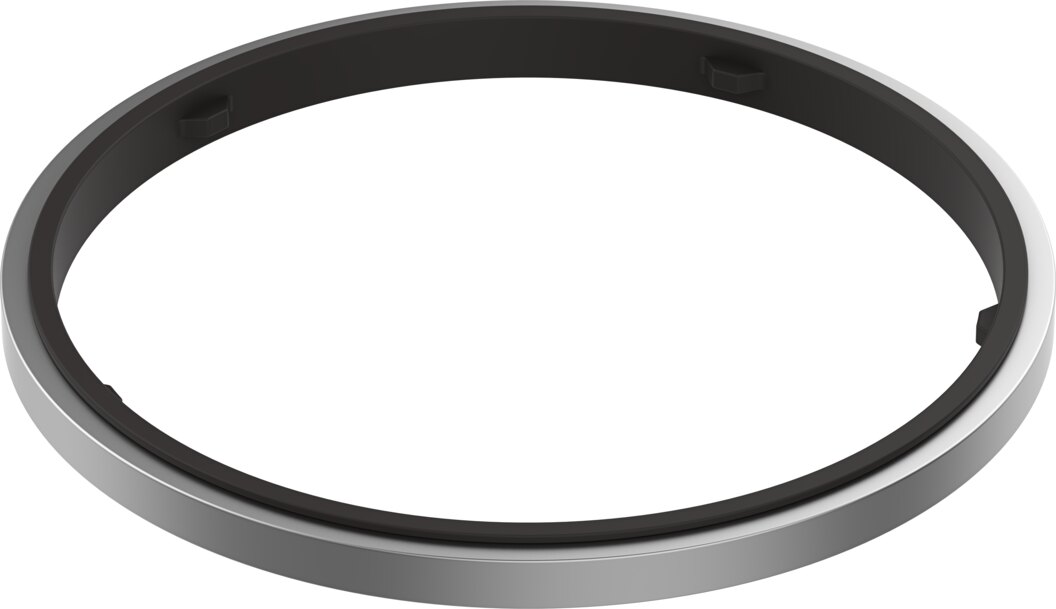

Sealing ring for G1 thread, up to 30 bar, -40 to 100 °C, ISO 16030 OL-1 - Festo 8153156
The OL-1 sealing ring seals fittings and threaded ports in compressed-air systems. Connection: G1. Usable from vacuum (-0.95 bar) up to 30 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The OL-1 sealing ring seals fittings and threaded ports in compressed-air systems. Usable from vacuum (-0.95 bar) up to 30 bar.
Benefits in use
- Operating pressure -0.95 to 30 bar, vacuum-capable
- Ambient temperature -40 to 100 °C
- Corrosion resistance class CRC 2 for moderate corrosion stress
- Defined assembly with nominal tightening torque 23 Nm
- Based on ISO 16030
- PWIS (LABS) conformity VDMA24364-B2-L
Applications
Typically used as a spare and assembly part when screwing in fittings and plugs.
Technical data
| Feature | Value |
|---|---|
| Type | OL-1 |
| Festo part number | 8153156 |
| Product type | Sealing ring |
| Based on standard | ISO 16030 |
| Operating pressure across the full temperature range | -0.95 to 30 bar |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40 to 100 °C |
| Hand tightening at room temperature | yes |
| Nominal tightening torque | 23 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Pneumatic connection | G1 |
| Material note | RoHS compliant |
| Stop material | Aluminium |
| Seal material | HNBR |
| Weight | 0.0011 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OL-1 |
| EAN | 4052568586003 |
| Zolltarifnummer | 40169300 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1 |
| Norm | ISO 16030 |
| Series | OL |
| Betriebsdruck max [bar] | 30 |
| Temperaturbereich | -40-100 °C |
| Temperature (max.) | 100 |
