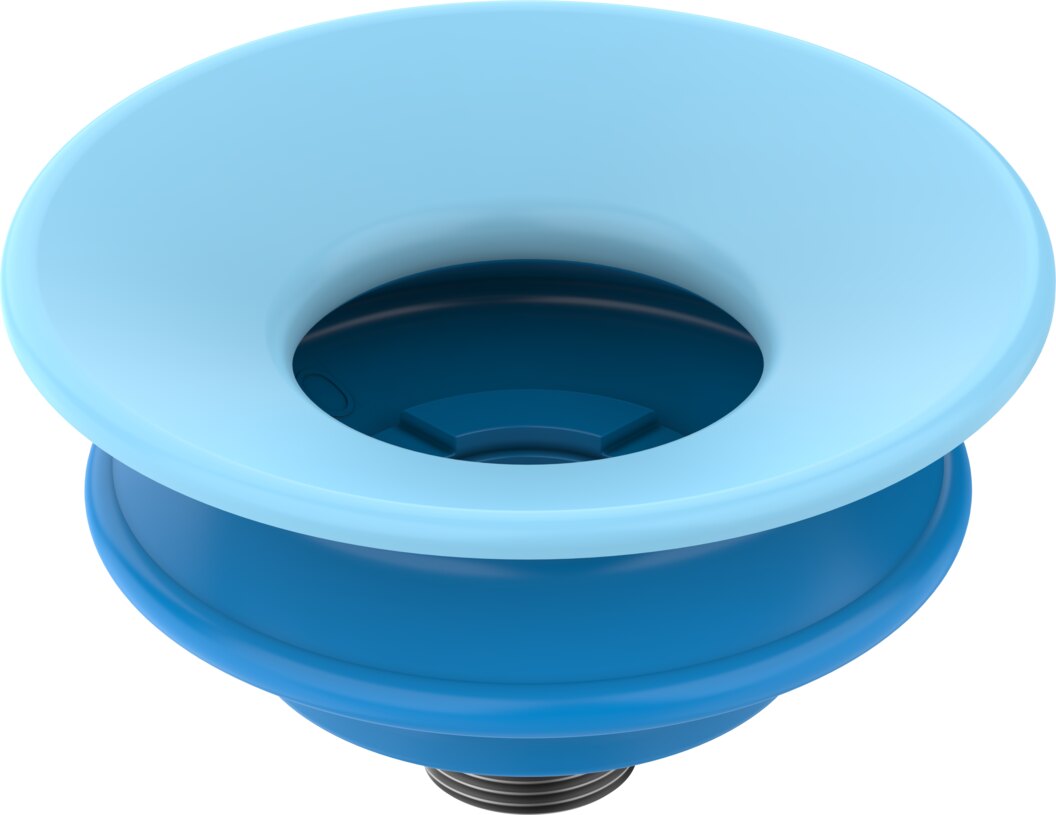

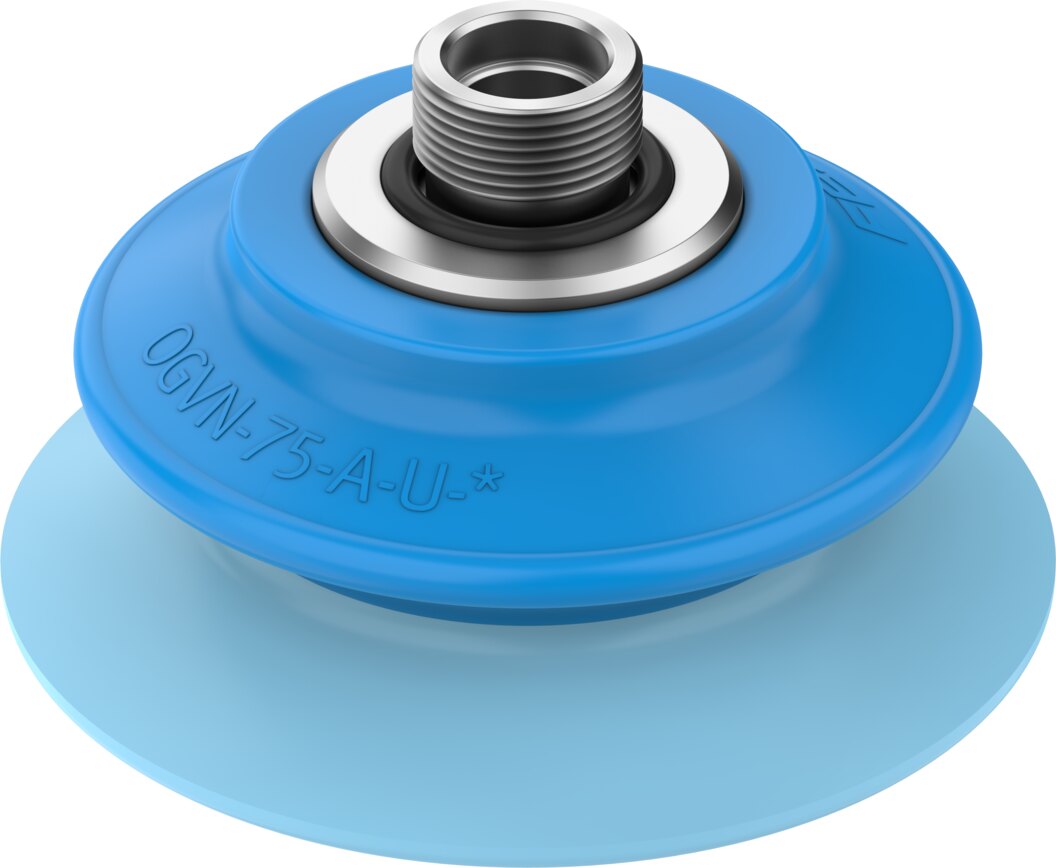

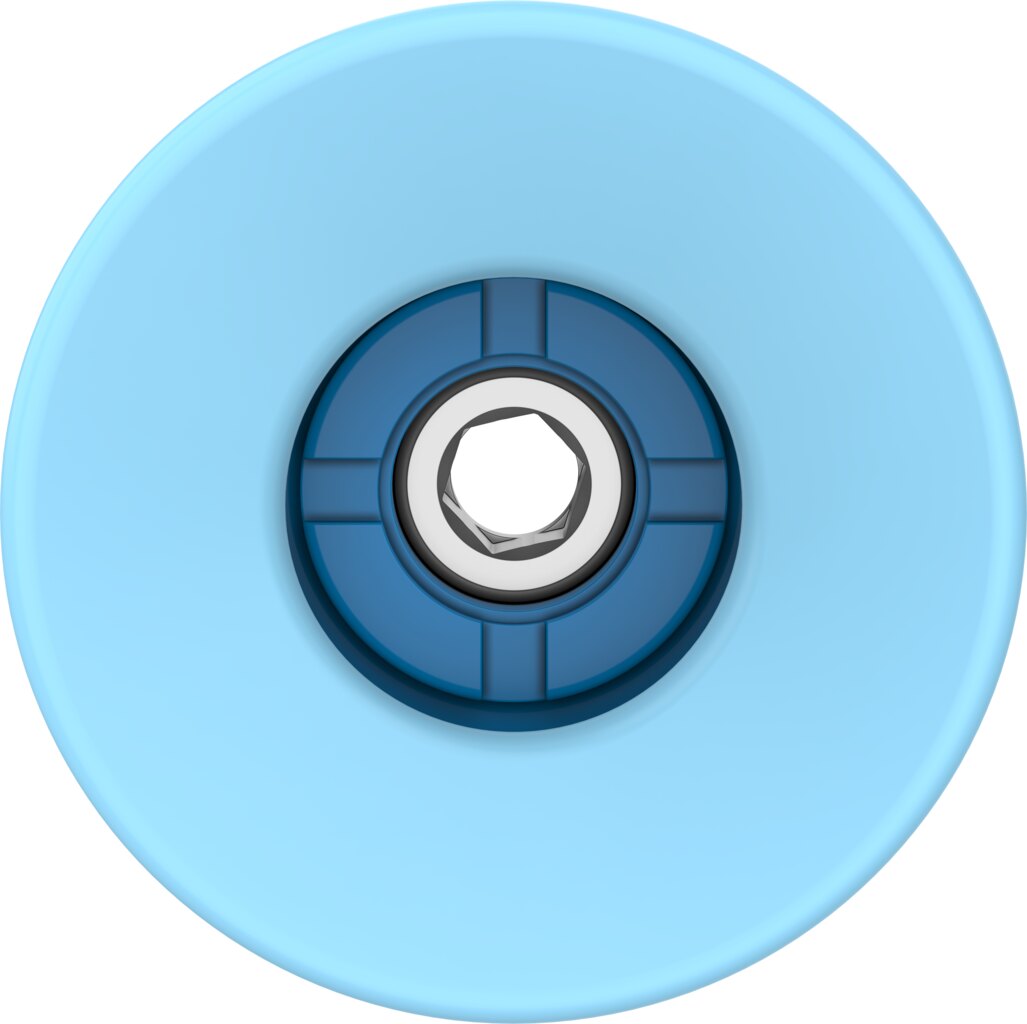

Round bellows vacuum suction cup Ø 75 mm PUR G3/8 OGVN-75-A-U-G38 - Festo 8204836
The Festo OGVN-75-A-U-G38 vacuum suction cup grips workpieces securely with 190 N of holding force at -0.7 bar nominal operating pressure. Round bellows design made of PUR. Bellows with 1.5 convolutions and 16 mm height compensation for uneven or inclined surfaces.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo OGVN-75-A-U-G38 vacuum suction cup grips workpieces securely with 190 N of holding force at -0.7 bar nominal operating pressure.
Benefits
- 190 N holding force at -0.7 bar nominal operating pressure
- Bellows with 1.5 convolutions and 16 mm height compensation for uneven or inclined surfaces
- Suction cup material PUR with Shore hardness A 70 +/-5
- Takes up 152 N of lateral force at nominal operating pressure
- Mounts directly via the G3/8 vacuum connection
Areas of use
The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.
Technical data
| Type | OGVN-75-A-U-G38 |
|---|---|
| Festo part number | 8204836 |
| Height compensator for suction cup | 16 mm |
| Nominal size | 10 mm |
| Suction cup diameter | 75 mm |
| Suction cup volume | 42.8 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | 10 to 45 °C |
| Holding force at nominal operating pressure | 190 N |
| Lateral force at nominal operating pressure | 152 N |
| Product weight | 39.7 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | G3/8 |
| Colour | Blue/light blue |
| Shore hardness | A 70 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | PUR |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVN-75-A-U-G38 |
| EAN | 4052568929985 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PUR |
| Thread | G 3/8 |
| Nominal size DN [mm] | 10 |
| Diameter [mm] | 75 |
| Medium | Air |
| Pneumatic connection | G3/8 |
| Temperature (max.) | 45 |
