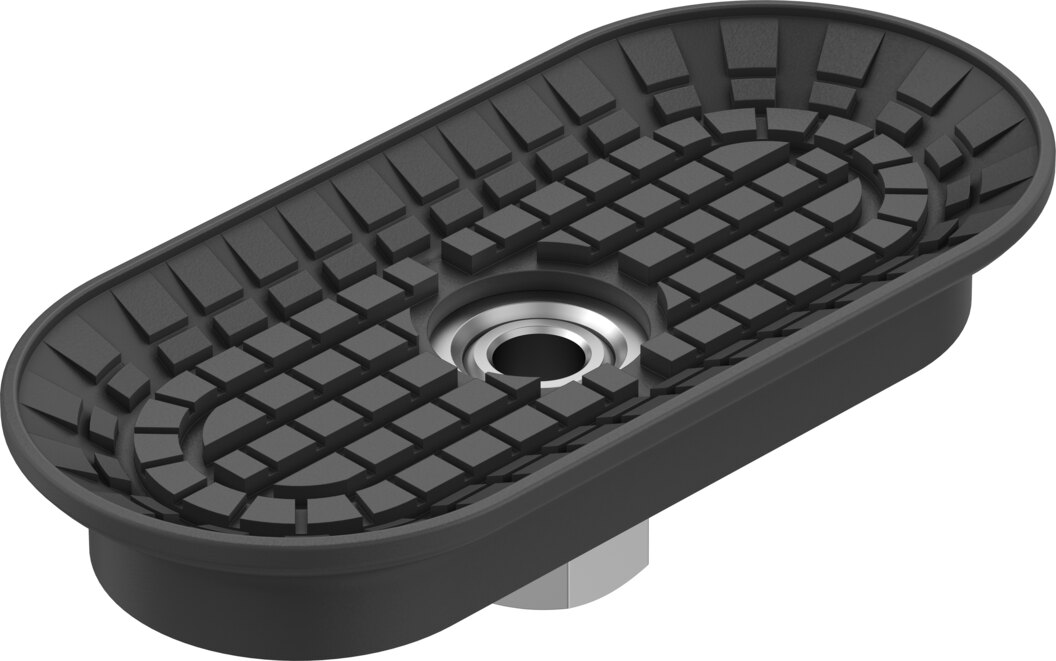

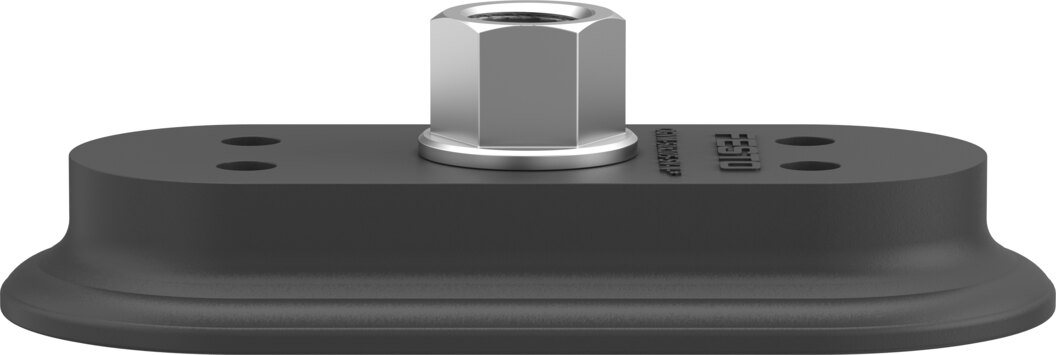

Oval flat vacuum suction cup 50x105 mm NBR G1/4 OGVM-50X105-SV-N-G14F - Festo 8073856

Festo ✓ Original product Brand new

With 240 N of holding force at -0.6 bar, the Festo OGVM-50X105-SV-N-G14F vacuum suction cup (50x105 mm) holds parts reliably during handling. Oval flat design made of NBR. Low internal volume of 25 cm³ in a flat design, so the vacuum builds up quickly.

Net
€43.70
excl. VAT
Item FES-8073856
Manufacturer no. OGVM-50X105-SV-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 240 N of holding force at -0.6 bar, the Festo OGVM-50X105-SV-N-G14F vacuum suction cup (50x105 mm) holds parts reliably during handling.

Benefits

  • 240 N holding force at -0.6 bar nominal operating pressure
  • Low internal volume of 25 cm³ in a flat design, so the vacuum builds up quickly
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Takes up 174 N of lateral force at nominal operating pressure
  • Vacuum connection female thread G1/4 on top, mounted directly via the port

Applications

Typical applications are flat parts with smooth surfaces, such as sheets, panels and film packaging.

Technical data

TypeOGVM-50X105-SV-N-G14F
Festo part number8073856
Height compensator for suction cup5 mm
Minimum workpiece radius75 mm
Nominal size8 mm
Suction cup size50x105 mm
Suction cup volume25 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeOval, flat
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure240 N
Vertical lateral force at nominal operating pressure174 N
Product weight67 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.07 kg
ManufacturerFesto
Hersteller-NrOGVM-50X105-SV-N-G14F
EAN4052568300968
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]8
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
