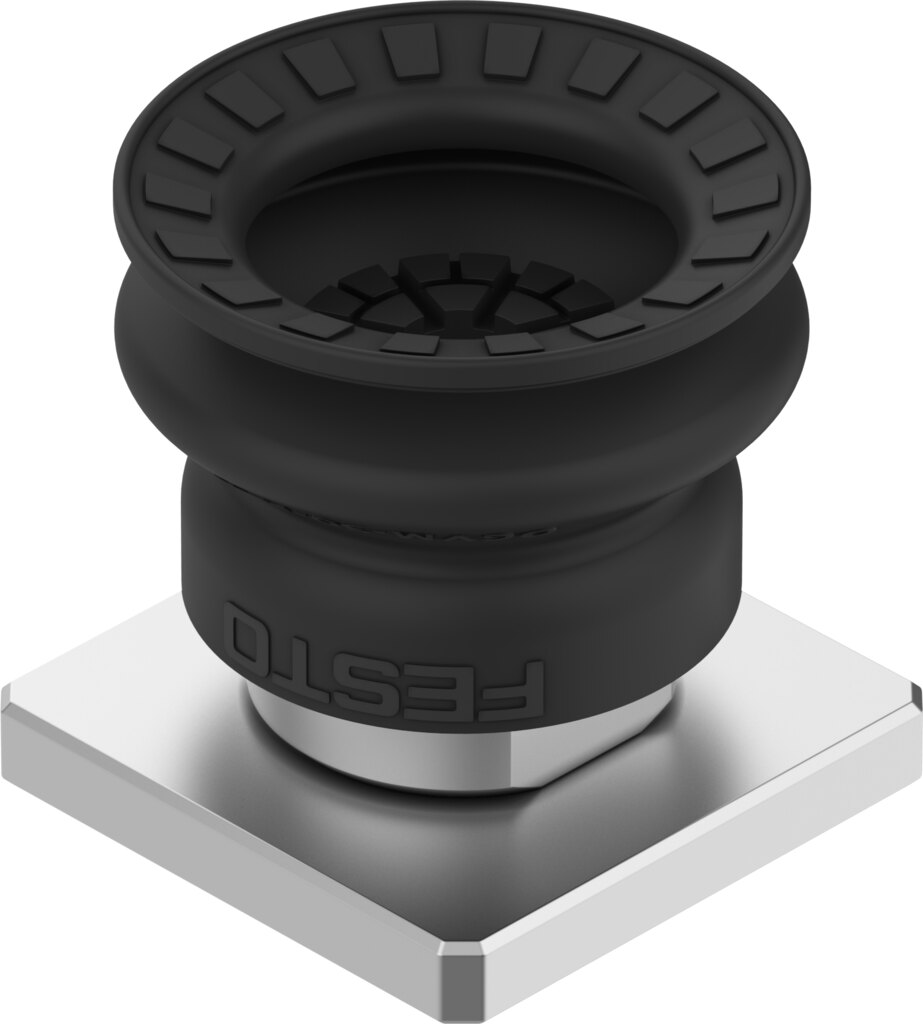

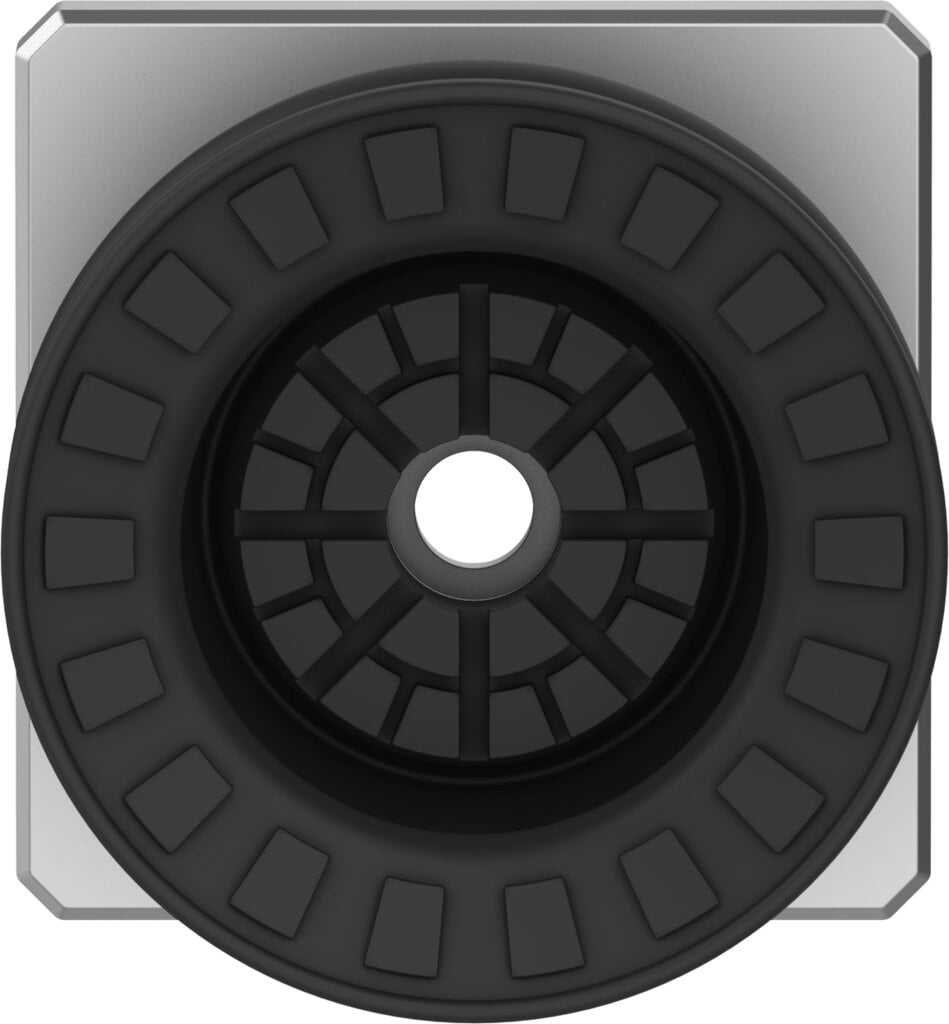

Round bellows vacuum suction cup Ø 30 mm NBR with rectangular adapter OGVM-30-A-N-RA - Festo 8213232
With 37 N of holding force at -0.6 bar, the Festo OGVM-30-A-N-RA vacuum suction cup (Ø 30 mm) holds parts reliably during handling. Round bellows design made of NBR. Bellows with 1.5 convolutions and 9 mm height compensation for uneven or inclined surfaces. NBR suction cup, Shore hardness 60 +/-5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 37 N of holding force at -0.6 bar, the Festo OGVM-30-A-N-RA vacuum suction cup (Ø 30 mm) holds parts reliably during handling.
Key benefits
- Holding force of 37 N at a nominal operating pressure of -0.6 bar
- Bellows with 1.5 convolutions and 9 mm height compensation for uneven or inclined surfaces
- NBR suction cup, Shore hardness 60 +/-5
- Takes up 31 N of lateral force at nominal operating pressure

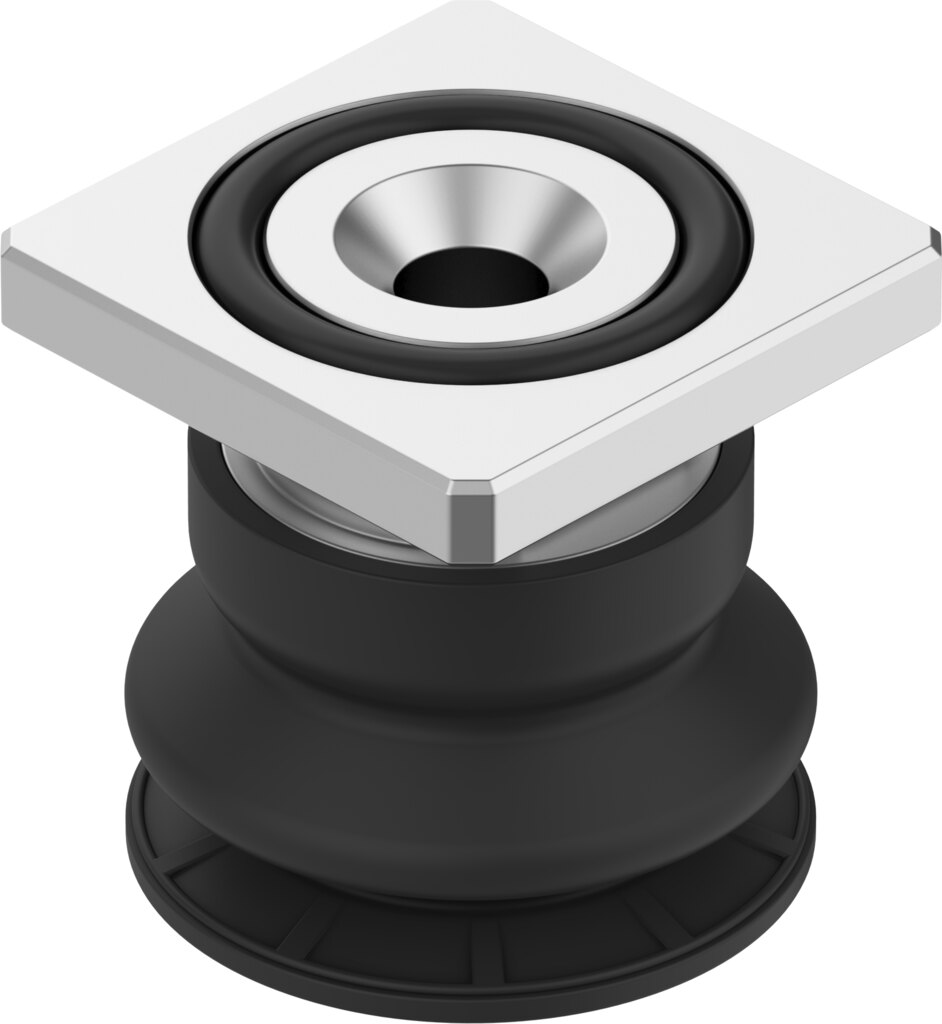

- Rectangular adapter RA for positive-locking mounting in the holder
Typical applications
Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.
Technical data
| Type | OGVM-30-A-N-RA |
|---|---|
| Festo part number | 8213232 |
| Height compensator for suction cup | 9 mm |
| Minimum workpiece radius | 25 mm |
| Nominal size | 4 mm |
| Suction cup diameter | 30 mm |
| Suction cup volume | 5.5 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1/A2-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 37 N |
| Lateral force at nominal operating pressure | 31 N |
| Product weight | 37 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Rectangular adapter RA |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.029 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-30-A-N-RA |
| EAN | 4052568790561 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Nominal size DN [mm] | 4 |
| Diameter [mm] | 30 |
| Medium | Air |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
