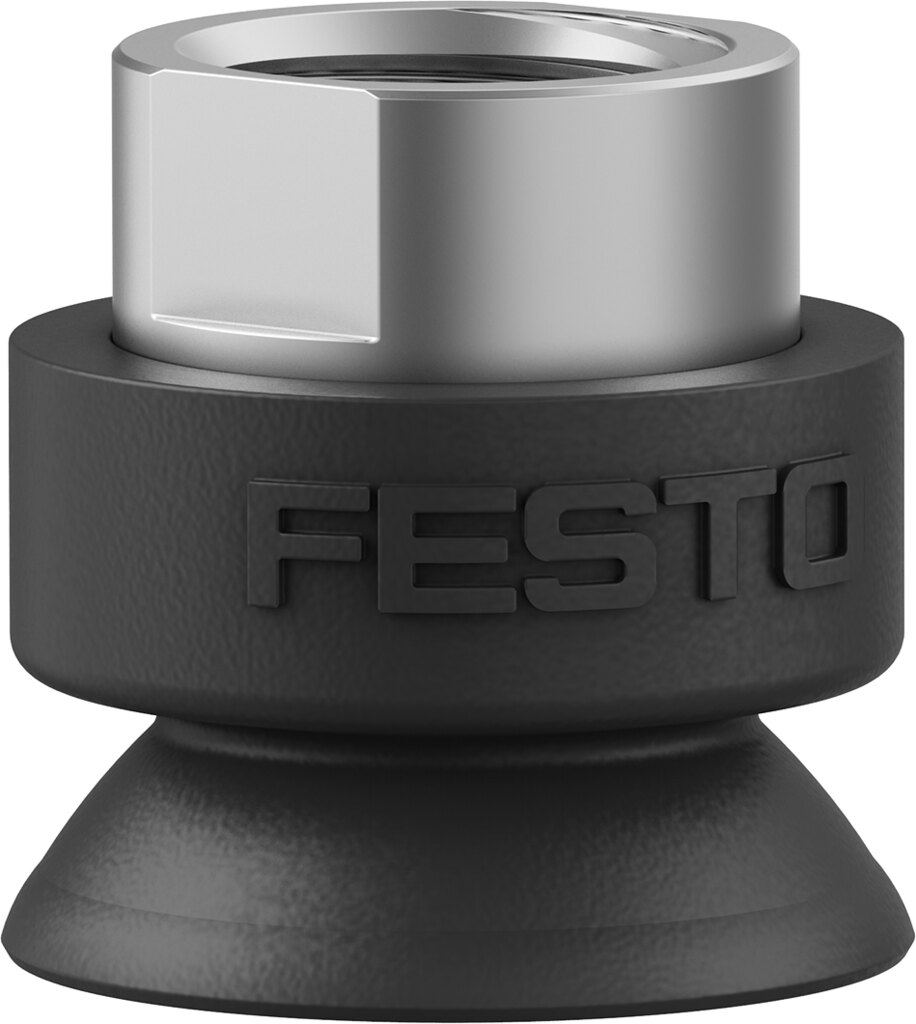

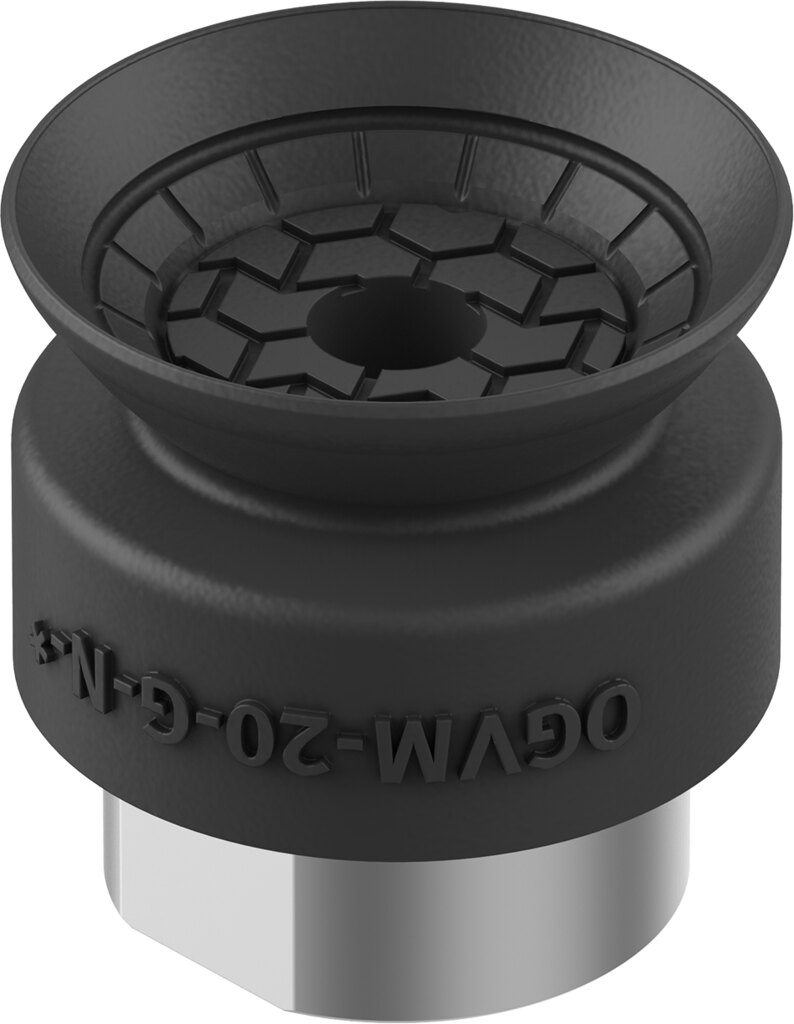

Round bell-shaped vacuum suction cup Ø 20 mm NBR G1/4 OGVM-20-G-N-G14F - Festo 8073847

Festo ✓ Original product Brand new

The Festo OGVM-20-G-N-G14F vacuum suction cup grips workpieces securely with 18 N of holding force at -0.6 bar nominal operating pressure. Round bell-shaped design made of NBR. Bell shape for curved workpieces from a workpiece radius of 12.5 mm. Suction cup material NBR with Shore hardness 60 +/-5.

Net
€18.77
excl. VAT
Item FES-8073847
Manufacturer no. OGVM-20-G-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVM-20-G-N-G14F vacuum suction cup grips workpieces securely with 18 N of holding force at -0.6 bar nominal operating pressure.

Why choose it

  • 18 N holding force at -0.6 bar nominal operating pressure
  • Bell shape for curved workpieces from a workpiece radius of 12.5 mm
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Lateral force of 28 N at nominal operating pressure, relevant for fast sideways moves
  • Vacuum connection female thread G1/4 on top, mounted directly via the port

Areas of use

The bell shape suits curved surfaces and textured parts, such as tubes, mouldings or castings.

Technical data

TypeOGVM-20-G-N-G14F
Festo part number8073847
Height compensator for suction cup4 mm
Minimum workpiece radius12.5 mm
Nominal size3 mm
Suction cup diameter20 mm
Suction cup volume1.2 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound bell-shaped
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure18 N
Lateral force at nominal operating pressure28 N
Product weight6 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.008 kg
ManufacturerFesto
Hersteller-NrOGVM-20-G-N-G14F
EAN4052568300906
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]3
Diameter [mm]20
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
