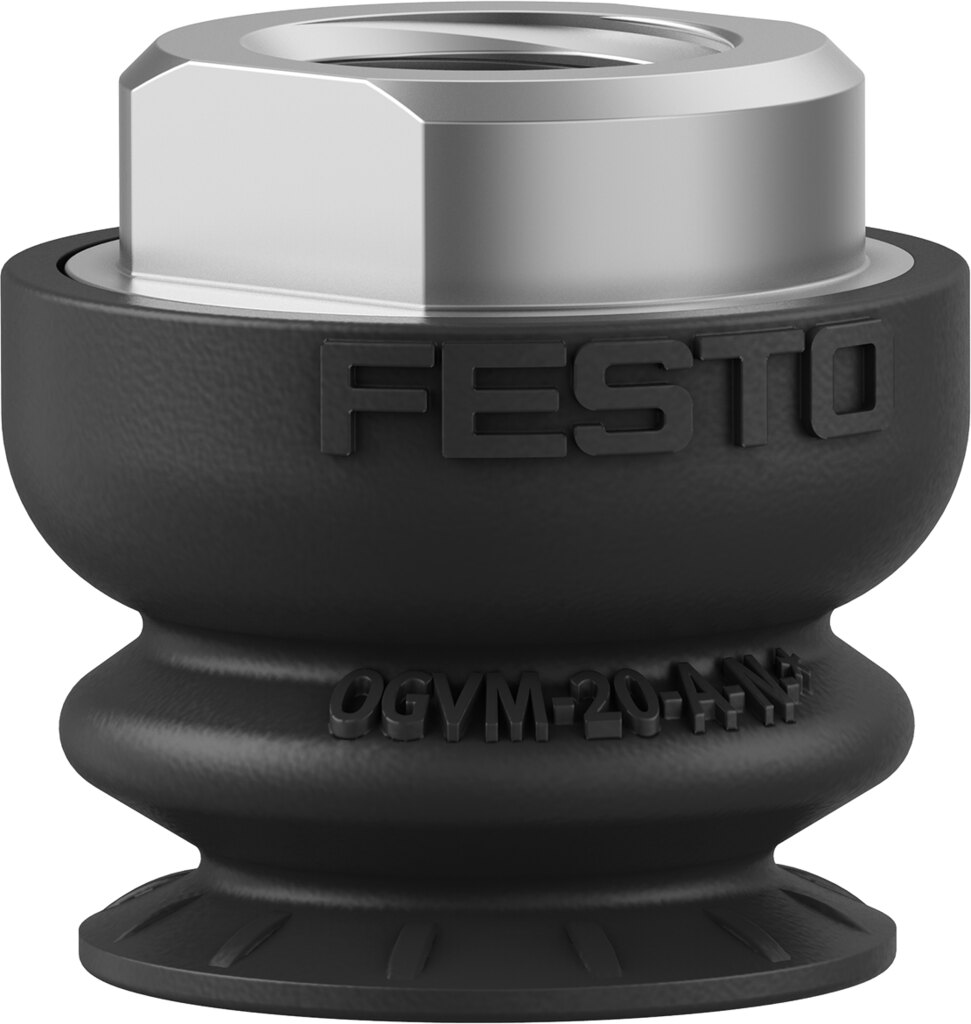

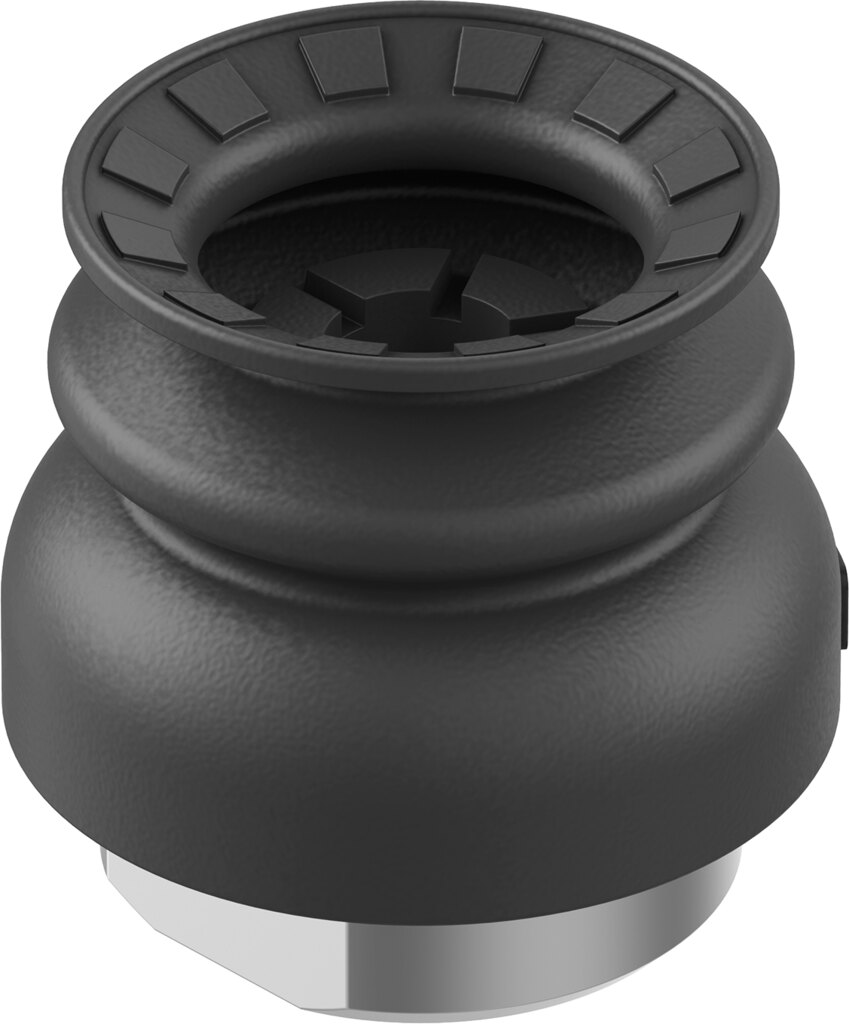

Round bellows vacuum suction cup Ø 20 mm NBR G1/4 OGVM-20-A-N-G14F - Festo 8073834
With 15 N of holding force at -0.6 bar, the Festo OGVM-20-A-N-G14F vacuum suction cup (Ø 20 mm) holds parts reliably during handling. Round bellows design made of NBR. Bellows with 1.5 convolutions and 5.8 mm height compensation for uneven or inclined surfaces.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 15 N of holding force at -0.6 bar, the Festo OGVM-20-A-N-G14F vacuum suction cup (Ø 20 mm) holds parts reliably during handling.
Key benefits
- 15 N holding force at -0.6 bar nominal operating pressure
- Bellows with 1.5 convolutions and 5.8 mm height compensation for uneven or inclined surfaces
- NBR suction cup, Shore hardness 60 +/-5
- Lateral force of 15 N at nominal operating pressure, relevant for fast sideways moves
- Vacuum connection female thread G1/4 on top, mounted directly via the port
Applications
The bellows works on curved, inclined or varying-height workpieces and suits packaging and moulded parts.
Technical data
| Type | OGVM-20-A-N-G14F |
|---|---|
| Festo part number | 8073834 |
| Height compensator for suction cup | 5.8 mm |
| Minimum workpiece radius | 12.5 mm |
| Nominal size | 4 mm |
| Suction cup diameter | 20 mm |
| Suction cup volume | 2 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Round, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 15 N |
| Lateral force at nominal operating pressure | 15 N |
| Product weight | 12 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G1/4 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.013 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-20-A-N-G14F |
| EAN | 4052568300777 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Thread | G 1/4 IG |
| Nominal size DN [mm] | 4 |
| Diameter [mm] | 20 |
| Medium | Air |
| Thread type | Internal thread |
| Pneumatic connection | G1/4 IG |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
