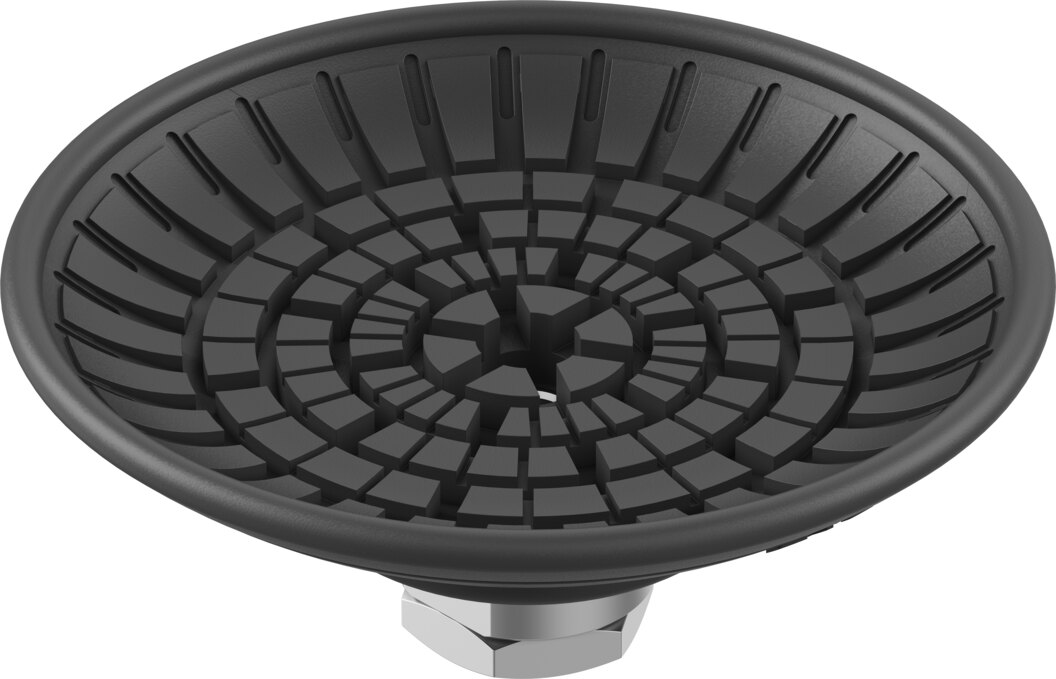

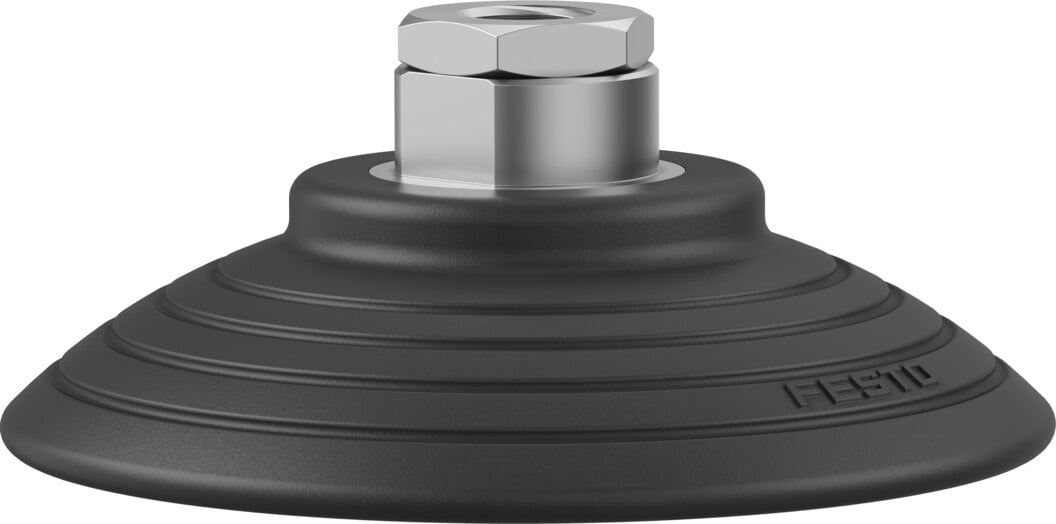

Round flat vacuum suction cup Ø 100 mm NBR G1/4 OGVM-100-S-N-G14F - Festo 8073821

Festo ✓ Original product Brand new

The Festo OGVM-100-S-N-G14F vacuum suction cup grips workpieces securely with 351 N of holding force at -0.6 bar nominal operating pressure. Round flat design made of NBR. Flat cup with only 68 cm³ internal volume for short evacuation times. Suction cup material NBR with Shore hardness 60 +/-5.

Net
€48.97
excl. VAT
Item FES-8073821
Manufacturer no. OGVM-100-S-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVM-100-S-N-G14F vacuum suction cup grips workpieces securely with 351 N of holding force at -0.6 bar nominal operating pressure.

Benefits

  • Holding force of 351 N at a nominal operating pressure of -0.6 bar
  • Flat cup with only 68 cm³ internal volume for short evacuation times
  • Suction cup material NBR with Shore hardness 60 +/-5
  • Takes up 140 N of lateral force at nominal operating pressure
  • Mounts directly via the female thread G1/4 vacuum connection

Applications

Typical applications are flat parts with smooth surfaces, such as sheets, panels and film packaging.

Technical data

TypeOGVM-100-S-N-G14F
Festo part number8073821
Height compensator for suction cup9.5 mm
Minimum workpiece radius100 mm
Nominal size8 mm
Suction cup diameter100 mm
Suction cup volume68 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, flat
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure351 N
Lateral force at nominal operating pressure140 N
Product weight100 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.095 kg
ManufacturerFesto
Hersteller-NrOGVM-100-S-N-G14F
EAN4052568300722
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]8
Diameter [mm]100
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
