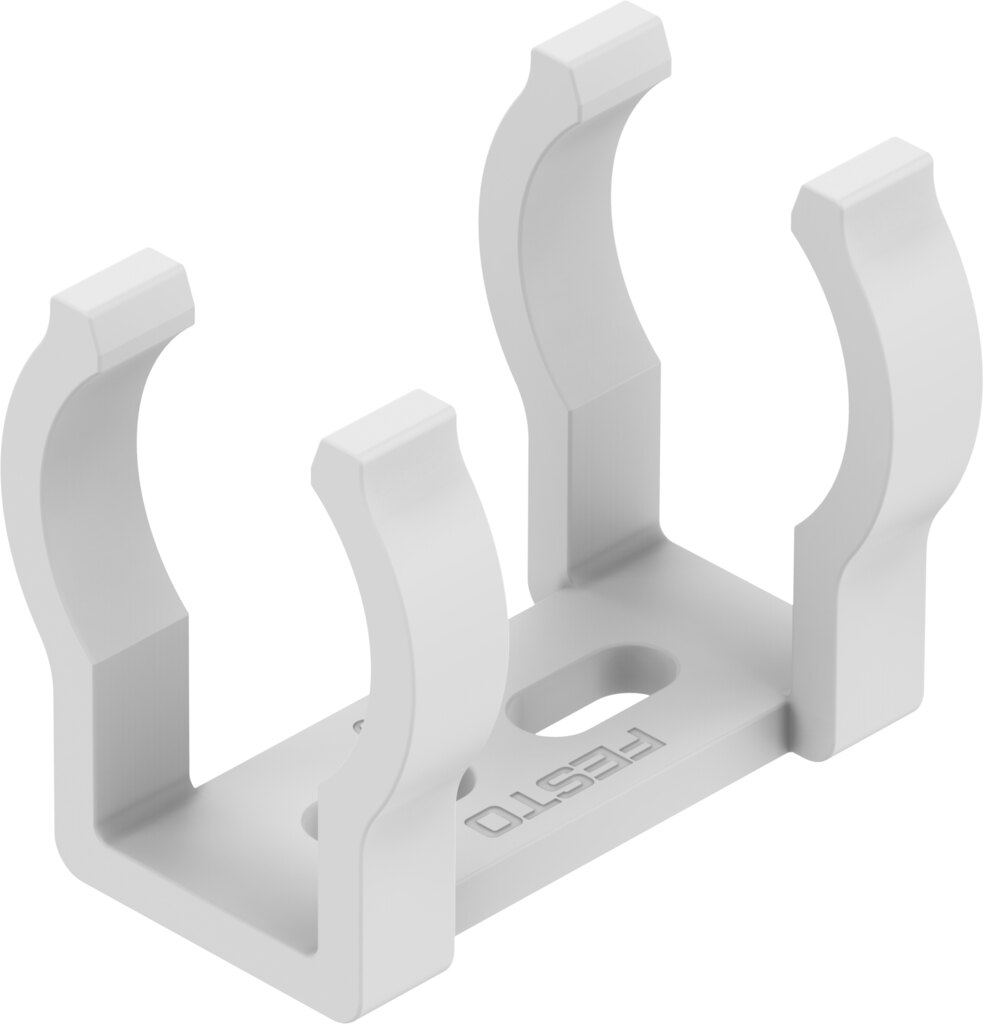

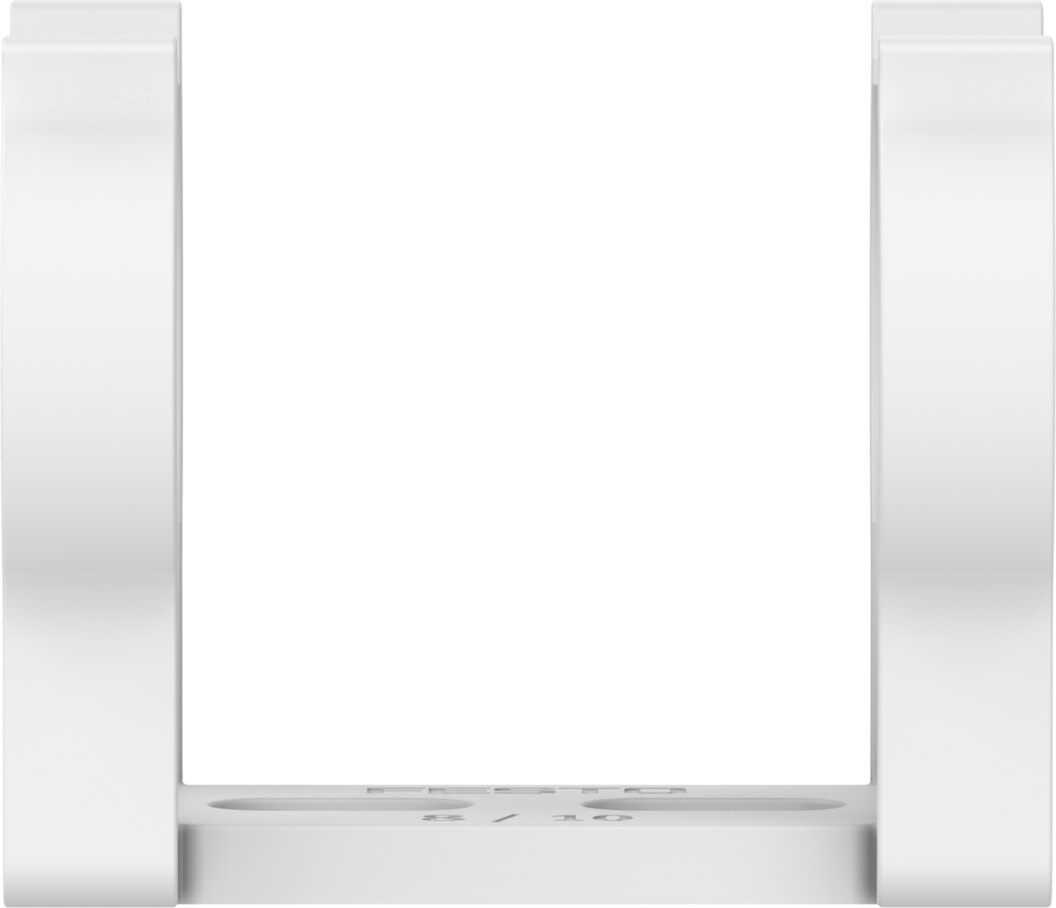

Mounting bracket for vacuum components F1a OAMM-A2-A-Q3Q4 - Festo 8228731
The Festo OAMM-A2-A-Q3Q4 mounting bracket fixes vacuum components securely to a frame or machine wall. Tightening torque up to 0.26 Nm. Mounting: via through-hole for M3 screw. LABS (PWIS) conformity VDMA24364 zone III.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo OAMM-A2-A-Q3Q4 mounting bracket fixes vacuum components securely to a frame or machine wall.
Benefits
- Tightening torque up to 0.26 Nm
- Mounting: via through-hole for M3 screw
- LABS (PWIS) conformity VDMA24364 zone III
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Typical applications
This keeps vacuum components from hanging loose in the line, they sit firmly in place and remain easy to reach.
Technical data
| Type | OAMM-A2-A-Q3Q4 |
|---|---|
| Festo part number | 8228731 |
| Mounting position | Any |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Maximum tightening torque | 0.26 Nm |
| Product weight | 1.36 g |
| Type of mounting | Via through-hole for M3 screw |
| Note on materials | RoHS compliant |
| Weight | 0.002 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OAMM-A2-A-Q3Q4 |
| EAN | 4052568906306 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
