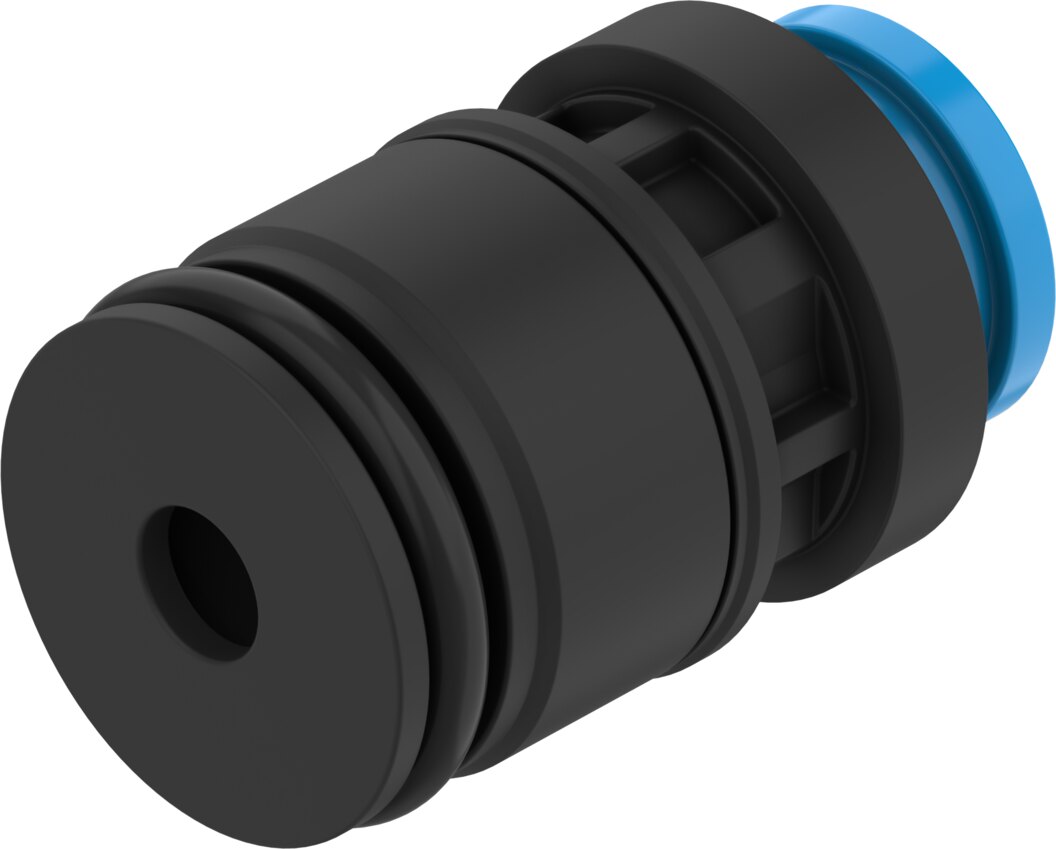

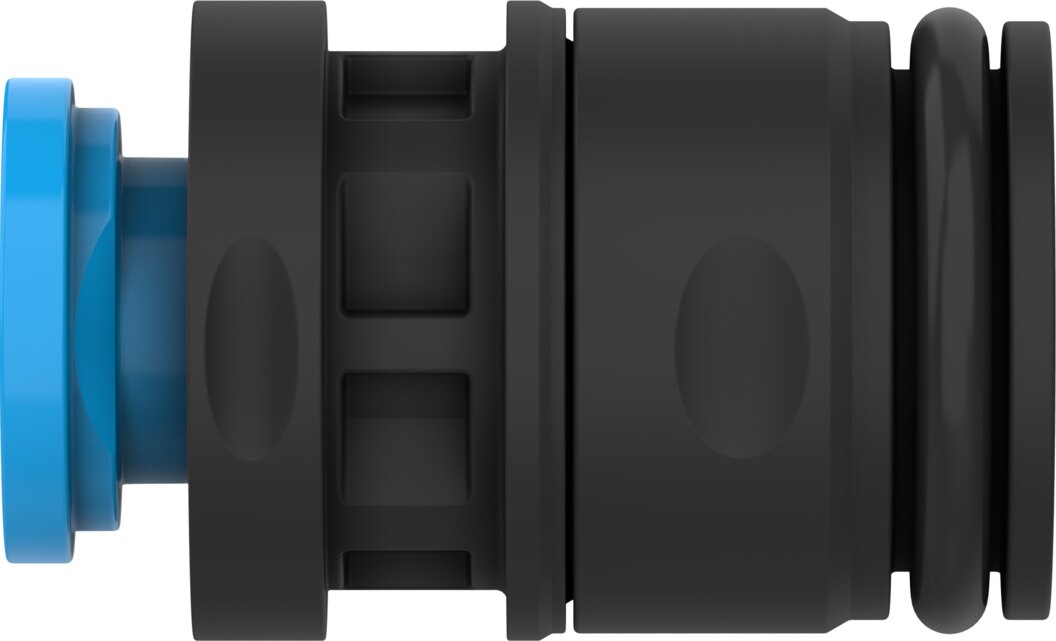

Cartridge 10 mm for tubing OD 4 mm, reinforced PA NPQX-D-PC10-Q4-P10 - Festo 8174164

Festo ✓ Original product Brand new

NPQX-D-PC10-Q4-P10 is a cartridge for 10 mm seats into which tubing with an OD of 4 mm is pushed directly. Operating limits: -0.95 to 10 bar and -10 to 60 °C. The housing is made of reinforced PA, corrosion resistance class CRC 3.

Net
€2.05
excl. VAT
Item FES-8174164
Manufacturer no. NPQX-D-PC10-Q4-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

NPQX-D-PC10-Q4-P10 is a cartridge for 10 mm seats into which tubing with an OD of 4 mm is pushed directly. Operating limits: -0.95 to 10 bar and -10 to 60 °C.

Benefits

  • From vacuum up to 10 bar operating pressure -0.95 to 10 bar across the full temperature range
  • Nominal width 2.6 mm
  • Ambient temperature -10 to 60 °C
  • Push-pull principle push the tube in, press the blue release ring to remove it
  • Housing made of reinforced PAcorrosion resistance class CRC 3
  • Tubing seal made of NBR

Applications

NPQX-D-PC10-Q4-P10 is intended for valves, valve terminals and devices with a cartridge seat. The NPQX-D-PC10-Q4-P10 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases, lubricated operation possible..

Technical data

FeatureValue
TypeNPQX-D-PC10-Q4-P10
Festo part number8174164
SizeStandard
Nominal width2.6 mm
Tubing insertion depth15 mm
Seal type on screw-in studO-ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure-0.95 to 10 bar
Operating pressure, full temperature range-0.95 to 10 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases
Note on operating and pilot mediumLubricated operation possible (required for further operation)
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Product weight0.9 g
Mounting typeWith retaining clip
Pneumatic connection 1Cartridge 10 mm
Pneumatic connection 2For tubing OD 4 mm
Release ring colourBlue
Material noteRoHS compliant
Housing materialReinforced PA
Release ring materialPOM
O-ring materialHNBR
Tubing seal materialNBR
Tubing clamp segment materialHigh-alloy stainless steel
Weight0.001 kg
ManufacturerFesto
Hersteller-NrNPQX-D-PC10-Q4-P10
EAN4052568636302
Zolltarifnummer39174000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPolyamide (PA)
Bauformgerade Form
For hose OD [mm]4
Nominal size DN [mm]2,6
Size BGStandard
Seal materialNBR
MediumCompressed air
Betriebsdruck max [bar]10
Temperaturbereich-10-60 °C
Temperature (max.)60
