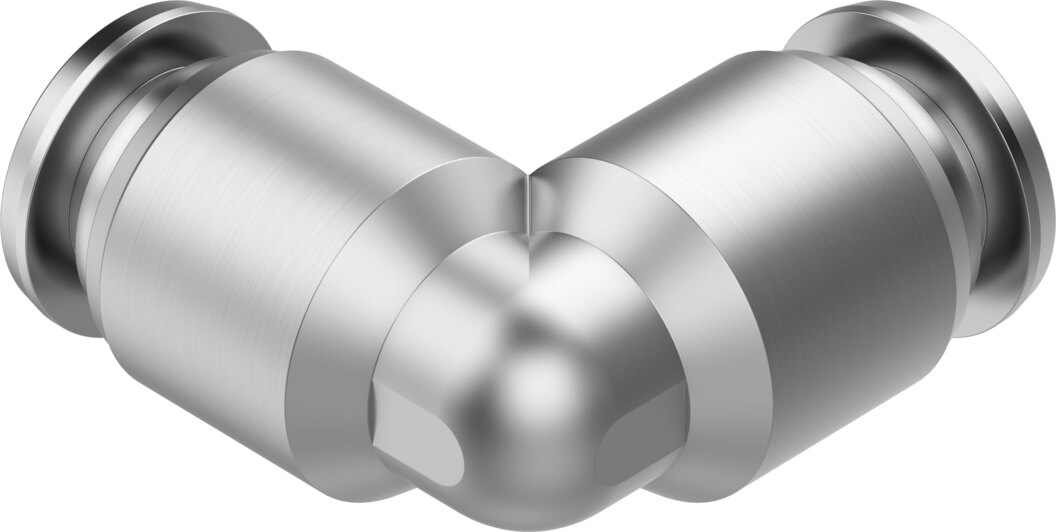

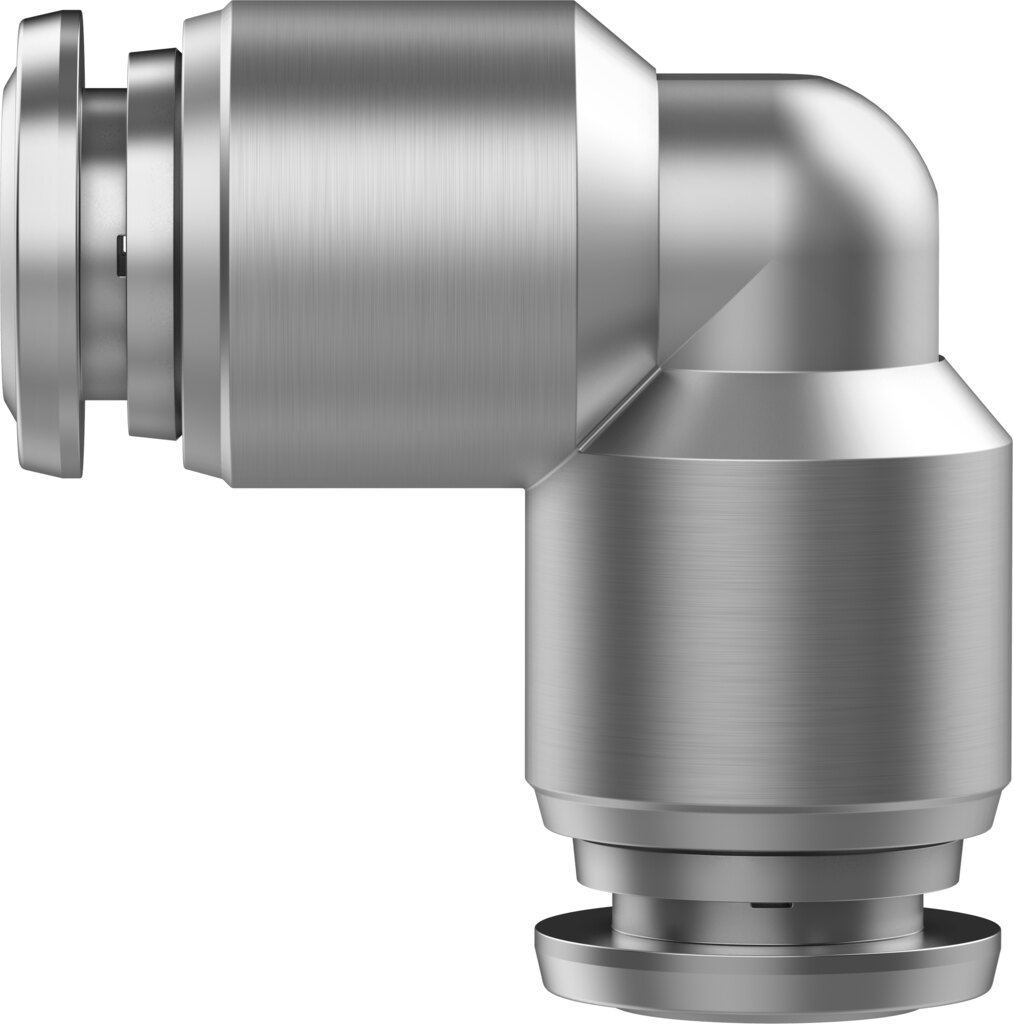

Push-in L-connector for tubing OD 6 mm, stainless steel NPQR-L-Q6-E - Festo 8085710
The push-in L-connector NPQR-L-Q6-E joins two tubes with an OD of 6 mm and changes the direction of the line. The NPQR-L-Q6-E is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in L-connector NPQR-L-Q6-E joins two tubes with an OD of 6 mm and changes the direction of the line. The NPQR-L-Q6-E is rated for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.
Benefits
- From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
- Housing made of high-alloy stainless steelcorrosion resistance class CRC 4
- Tubing seal made of FPM (fluoro rubber)
- LABS (PWIS) conformity to VDMA24364-B2-L
- Cleanroom suitable class 4 to ISO 14644-1
- Battery production reduced Cu/Zn/Ni content to F1a
Applications
NPQR-L-Q6-E is meant for routing tubing round corners and in tight spaces. Approved medium for the NPQR-L-Q6-E: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.
Technical data
| Feature | Value |
|---|---|
| Type | NPQR-L-Q6-E |
| Festo part number | 8085710 |
| Size | Standard |
| Nominal width | 5 mm |
| Tubing insertion depth | 13.1 mm |
| Mounting position | Any |
| Design | L-shape |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.95 to 16 bar |
| Note on operating pressure | Water: max. 7 bar at 0 to 80 °C |
| Certificate issuing body | NSF C0556009 |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free) |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 4 - very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Class 4 to ISO 14644-1 |
| Food suitability | See declaration of conformity, NSF/ANSI 169 |
| Ambient temperature | -20 to 150 °C |
| Product weight | 14.9 g |
| Pneumatic connection 1 | For tubing OD 6 mm |
| Pneumatic connection 2 | For tubing OD 6 mm |
| Release ring colour | Silver |
| Material note | RoHS compliant |
| Housing material | High-alloy stainless steel |
| Retaining ring material | High-alloy stainless steel |
| Release ring material | High-alloy stainless steel |
| Tubing seal material | FPM |
| Tubing clamp segment material | High-alloy stainless steel |
| Support ring material | PPSU |
| Weight | 0.017 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQR-L-Q6-E |
| EAN | 4052568454982 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Bauform | L-Form |
| For hose OD [mm] | 6 |
| Nominal size DN [mm] | 5 |
| Size BG | Standard |
| Seal material | FPM |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -20-150 °C |
| Temperature (max.) | 150 |
