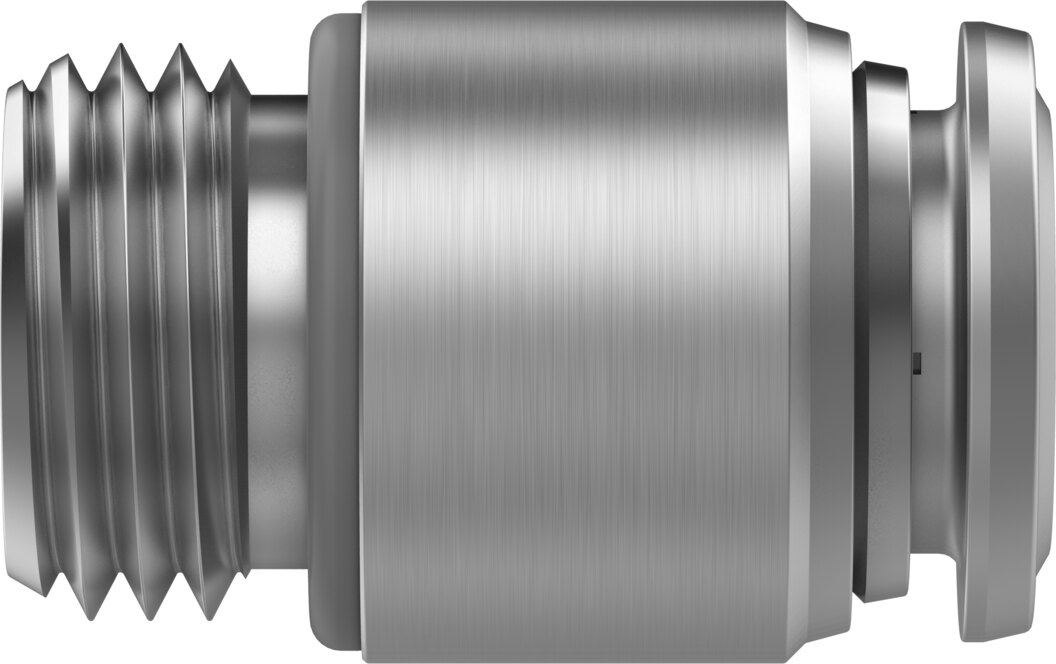

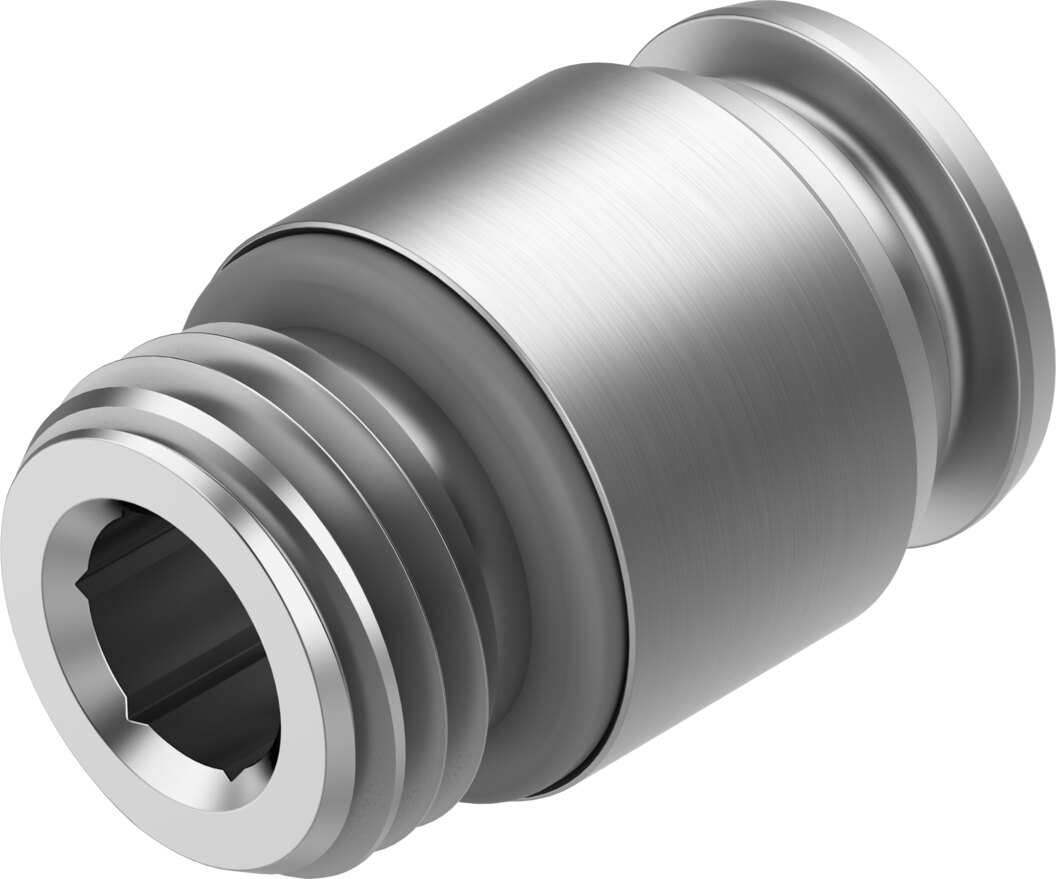

Straight push-in fitting G1/4 to tubing OD 8 mm, stainless steel NPQR-DK-G14-Q8 - Festo 8085665

Festo ✓ Original product Brand new

The straight push-in fitting NPQR-DK-G14-Q8 connects tubing with an OD of 8 mm directly to a G1/4 port. Operating pressure -0.95 to 16 bar, ambient -20 to 150 °C. NSF/ANSI 169 listed for the food sector and also usable with water.

Net
€17.77
excl. VAT
Item FES-8085665
Manufacturer no. NPQR-DK-G14-Q8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The straight push-in fitting NPQR-DK-G14-Q8 connects tubing with an OD of 8 mm directly to a G1/4 port. Operating pressure -0.95 to 16 bar, ambient -20 to 150 °C.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Housing made of high-alloy stainless steelcorrosion resistance class CRC 4
  • Tubing seal made of FPM (fluoro rubber)
  • Sealing ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364-B2-L
  • Cleanroom suitable class 4 to ISO 14644-1

Applications

Typical locations for the NPQR-DK-G14-Q8 are valves, cylinders and service units with a G1/4 port. Approved medium for the NPQR-DK-G14-Q8: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-DK-G14-Q8
Festo part number8085665
SizeStandard
Nominal width6.3 mm
Tubing insertion depth16.8 mm
Seal type on screw-in studSealing ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Nominal tightening torque7.5 Nm
Tolerance of nominal tightening torque± 20 %
Product weight14.4 g
Mounting typeInternal hex A/F 6
Pneumatic connection 1Male thread G1/4
Pneumatic connection 2For tubing OD 8 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.017 kg
ManufacturerFesto
Hersteller-NrNPQR-DK-G14-Q8
EAN4052568451073
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadG 1/4
For hose OD [mm]8
Nominal size DN [mm]6,3
Size BGStandard
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]6
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
