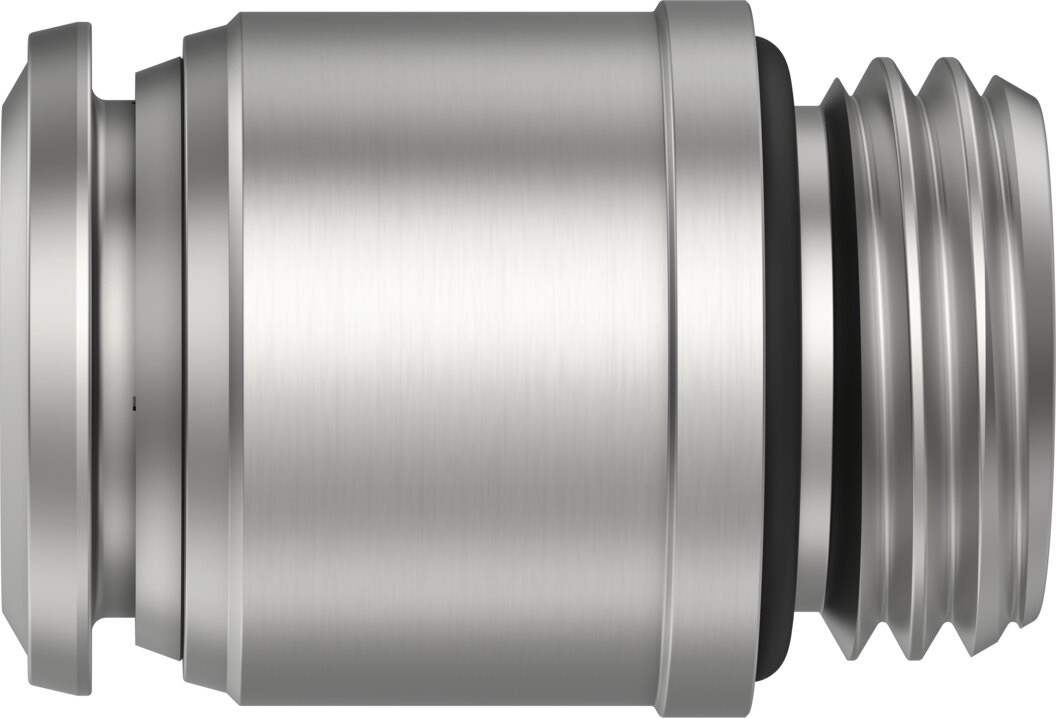

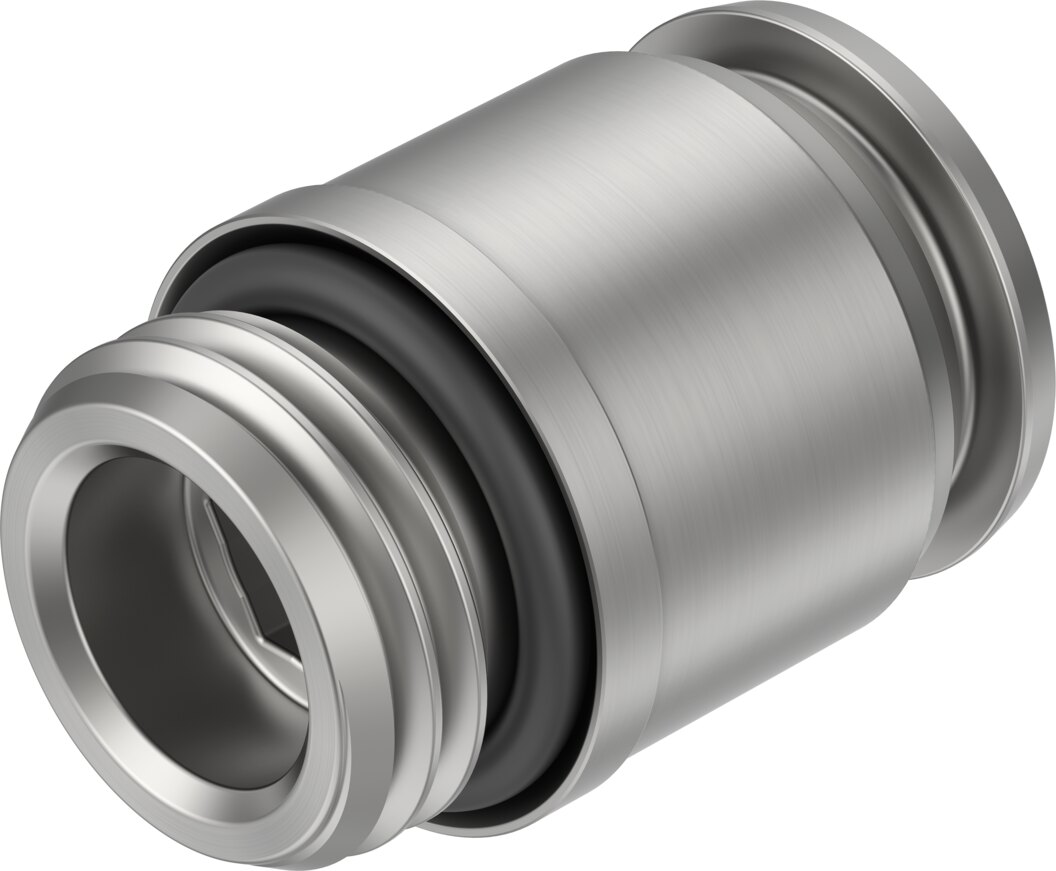

Straight push-in fitting G1/2 to tubing OD 16 mm, stainless steel NPQR-DK-G12-Q16 - Festo 8085671

Festo ✓ Original product Brand new

NPQR-DK-G12-Q16 is the straight transition from a G1/2 thread to tubing with an OD of 16 mm. Operating limits: -0.95 to 12 bar and -5 to 150 °C. NSF/ANSI 169 listed for the food sector and also usable with water.

Net
€54.68
excl. VAT
Item FES-8085671
Manufacturer no. NPQR-DK-G12-Q16
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

NPQR-DK-G12-Q16 is the straight transition from a G1/2 thread to tubing with an OD of 16 mm. Operating limits: -0.95 to 12 bar and -5 to 150 °C.

Benefits

  • From vacuum up to 12 bar operating pressure -0.95 to 12 bar across the full temperature range
  • Tubing seal made of FPM (fluoro rubber)
  • Sealing ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364-B2-L
  • Cleanroom suitable class 4 to ISO 14644-1
  • Battery production reduced Cu/Zn/Ni content to F1a

Applications

The NPQR-DK-G12-Q16 connects tubing lines to valves, actuators and manifolds with a G1/2 thread. Approved medium for the NPQR-DK-G12-Q16: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-DK-G12-Q16
Festo part number8085671
SizeStandard
Nominal width12.6 mm
Tubing insertion depth23.5 mm
Seal type on screw-in studSealing ring
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 12 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-5 to 150 °C
Note on ambient temperatureWith PUN-H: -20 to 60 °C
Nominal tightening torque9 Nm
Tolerance of nominal tightening torque± 20 %
Product weight53 g
Mounting typeInternal hex A/F 12
Pneumatic connection 1Male thread G1/2
Pneumatic connection 2For tubing OD 16 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.055 kg
ManufacturerFesto
Hersteller-NrNPQR-DK-G12-Q16
EAN4052568553241
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
ThreadG 1/2
For hose OD [mm]16
Size BGStandard
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]12
Betriebsdruck max [bar]12
Temperature (max.)150
