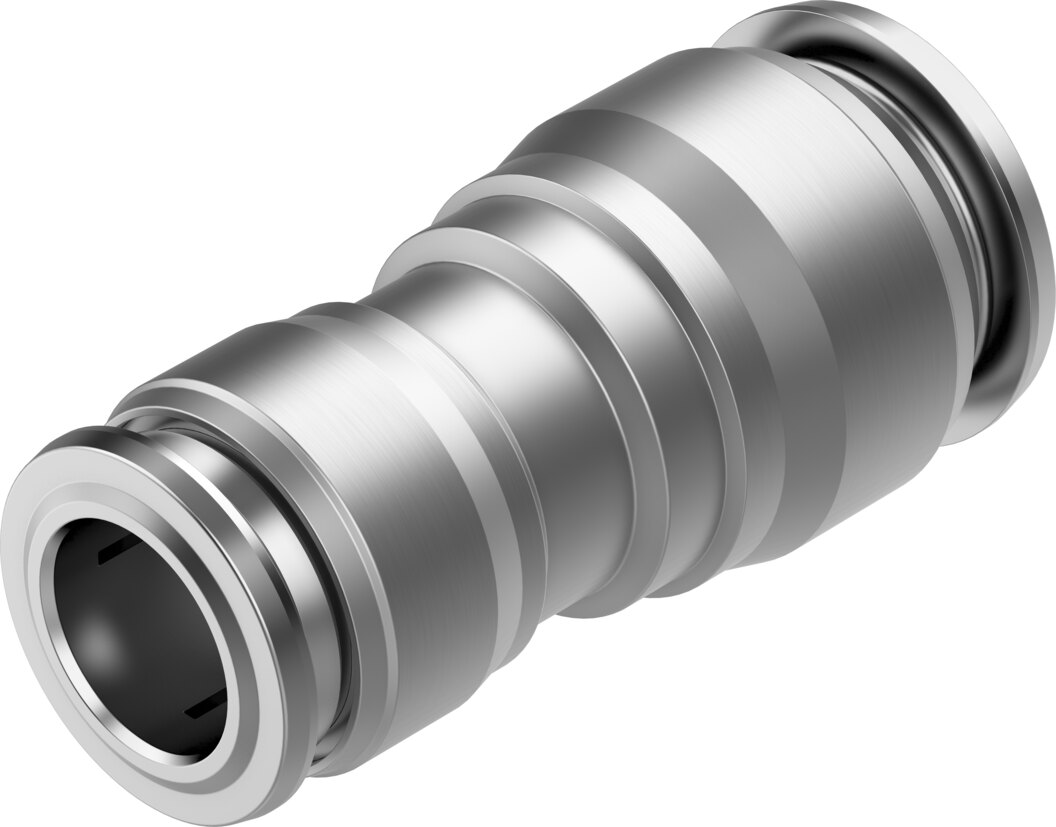

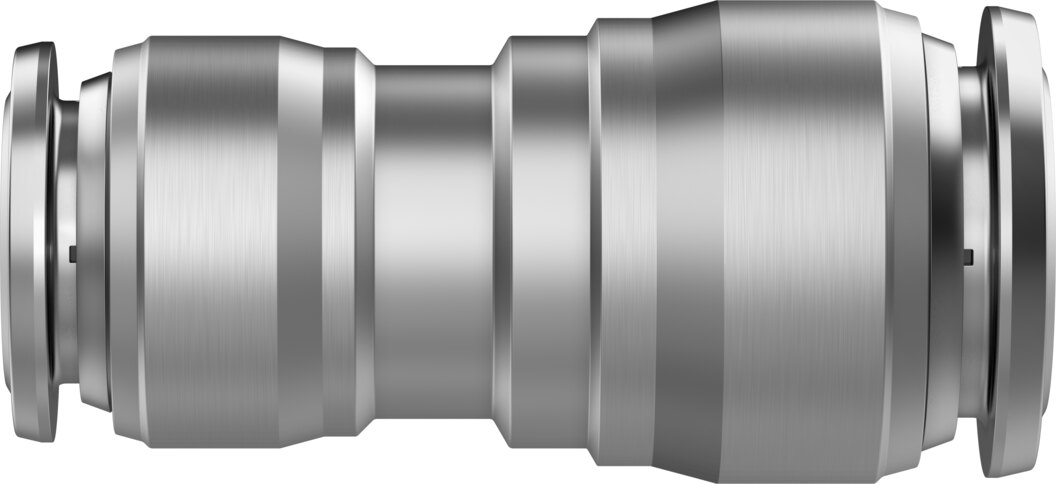

Straight push-in connector for tubing OD 12 mm to 10 mm, stainless steel NPQR-D-Q12-Q10 - Festo 8085707

Festo ✓ Original product Brand new

With NPQR-D-Q12-Q10, a tubing line changes from an OD of 12 mm to an OD of 10 mm without an adapter. The NPQR-D-Q12-Q10 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature. Cleanroom suitable to class 4 of ISO 14644-1 and LABS (PWIS) compliant.

Net
€54.65
excl. VAT
Item FES-8085707
Manufacturer no. NPQR-D-Q12-Q10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With NPQR-D-Q12-Q10, a tubing line changes from an OD of 12 mm to an OD of 10 mm without an adapter. The NPQR-D-Q12-Q10 is specified for -0.95 to 16 bar operating pressure and -20 to 150 °C ambient temperature.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Nominal width 9 mm
  • Also for water max. 7 bar at 0 to 80 °C
  • Ambient temperature -20 to 150 °C
  • Push-pull principle push the tube in, press the silver release ring to remove it
  • Housing made of high-alloy stainless steelcorrosion resistance class CRC 4

Applications

NPQR-D-Q12-Q10 is used to extend, repair and reduce tubing lines in machine building. The NPQR-D-Q12-Q10 works with compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-D-Q12-Q10
Festo part number8085707
SizeStandard
Nominal width9 mm
Tubing insertion depth19.6 to 22.4 mm
Note on tubing insertion depthØ10 depth 19.6 mm, Ø12 depth 22.4 mm
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 4 to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Product weight39.6 g
Pneumatic connection 1For tubing OD 12 mm
Pneumatic connection 2For tubing OD 10 mm
Release ring colourSilver
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Retaining ring materialHigh-alloy stainless steel
Release ring materialHigh-alloy stainless steel
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPPSU
Weight0.04 kg
ManufacturerFesto
Hersteller-NrNPQR-D-Q12-Q10
EAN4052568454968
Zolltarifnummer73072980
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
Bauformgerade Form
Nominal size DN [mm]9
Size BGStandard
Seal materialFPM
MediumCompressed air
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
