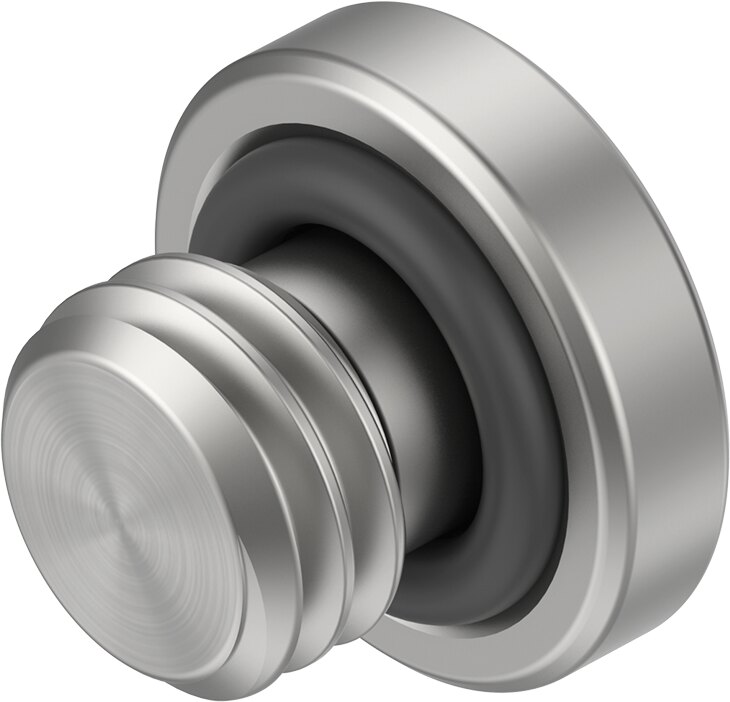

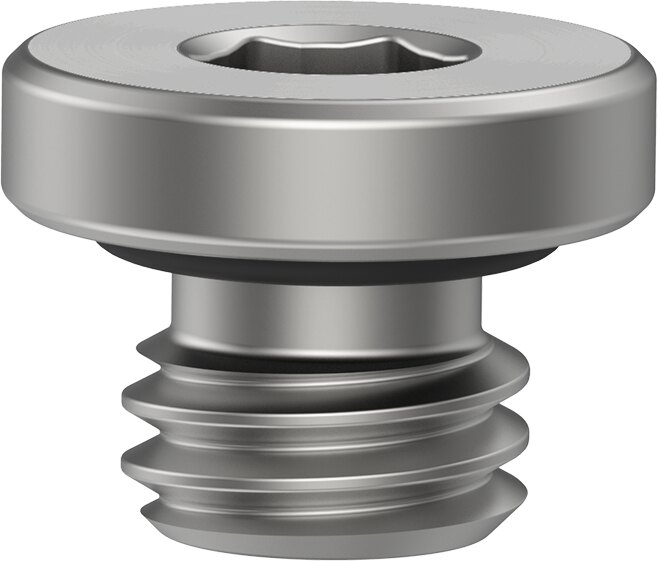

Plug screw with male thread M5, stainless steel NPQR-BK-M5 - Festo 8104803

Festo ✓ Original product Brand new

The plug screw NPQR-BK-M5 tightly seals an unused M5 threaded port. Operating pressure -0.95 to 16 bar, ambient -20 to 150 °C. The housing is made of high-alloy stainless steel, corrosion resistance class CRC 4.

Net
€7.35
excl. VAT
Item FES-8104803
Manufacturer no. NPQR-BK-M5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The plug screw NPQR-BK-M5 tightly seals an unused M5 threaded port. Operating pressure -0.95 to 16 bar, ambient -20 to 150 °C.

Benefits

  • From vacuum up to 16 bar operating pressure -0.95 to 16 bar across the full temperature range
  • Ambient temperature -20 to 150 °C
  • Housing made of high-alloy stainless steelcorrosion resistance class CRC 4
  • Sealing ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364-B2-L
  • Battery production reduced Cu/Zn/Ni content to F1a

Applications

NPQR-BK-M5 closes spare M5 ports on valves, manifolds and actuators. Approved medium for the NPQR-BK-M5: compressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free), lubricated operation possible.

Technical data

FeatureValue
TypeNPQR-BK-M5
Festo part number8104803
SizeStandard
Seal type on screw-in studSealing ring
Mounting positionAny
DesignPlug screw
Operating pressure, full temperature range-0.95 to 16 bar
Note on operating pressureWater: max. 7 bar at 0 to 80 °C
Certificate issuing bodyNSF C0556009
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-], water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14Statically installed element, no meaningful rating possible to ISO 14644-1
Food suitabilitySee declaration of conformity, NSF/ANSI 169
Ambient temperature-20 to 150 °C
Nominal tightening torque1 Nm
Tolerance of nominal tightening torque± 20 %
Product weight3.2 g
Pneumatic connection 1Male thread M5
Material noteRoHS compliant
Housing materialHigh-alloy stainless steel
Thread seal materialFPM
Weight0.004 kg
ManufacturerFesto
Hersteller-NrNPQR-BK-M5
EAN4052568553432
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
ThreadM5
Size BGStandard
MediumCompressed air
Thread typeExternal thread
Betriebsdruck max [bar]16
Temperaturbereich-20-150 °C
Temperature (max.)150
