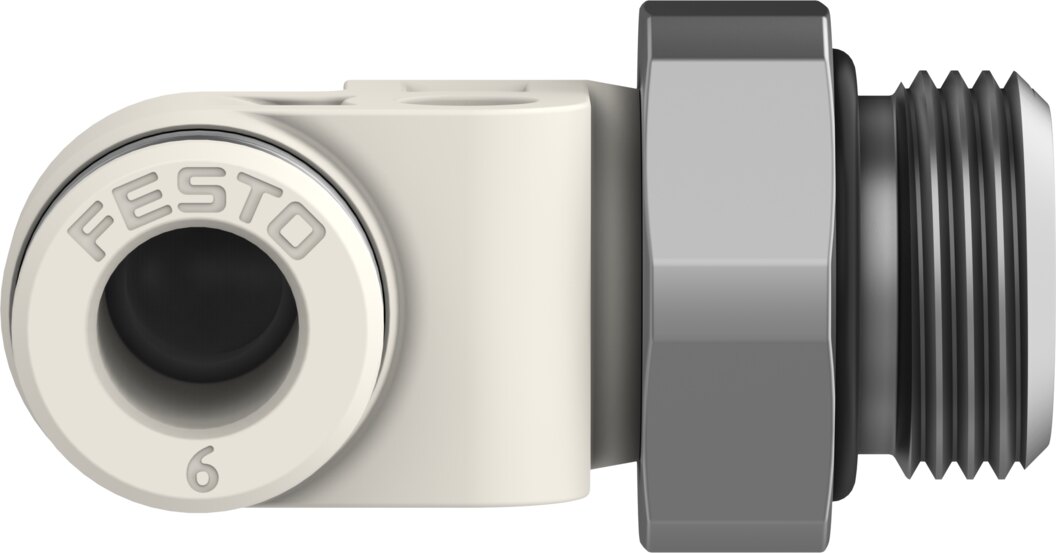

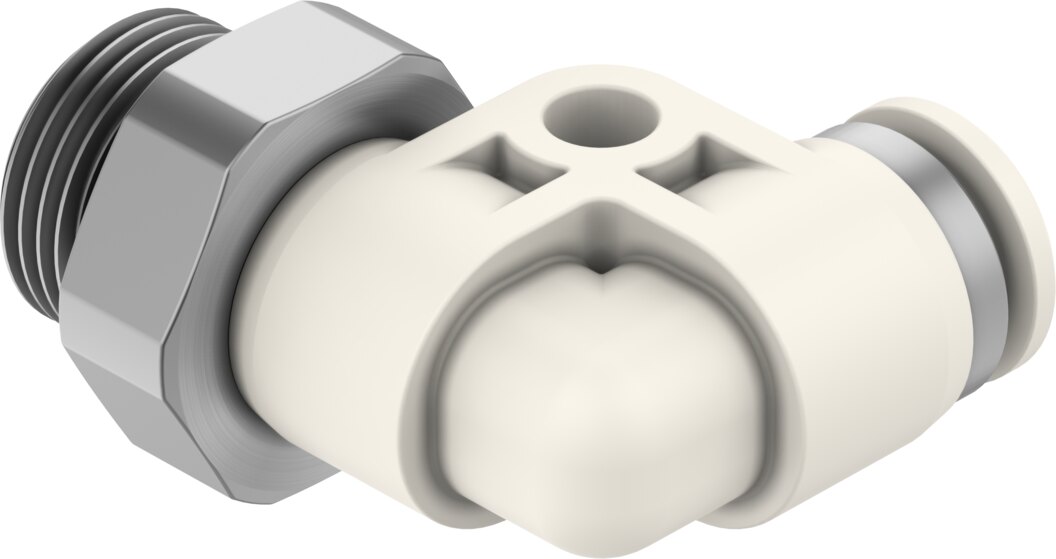

Push-in L-fitting G1/4 to tubing OD 6 mm, PVDF NPQO-L-G14-Q6-P10 - Festo 8203307

Festo ✓ Original product Brand new

The push-in L-fitting NPQO-L-G14-Q6-P10 routes tubing with an OD of 6 mm away from the G1/4 thread at an angle. Operating limits: -0.9 to 3 bar and 0 to 60 °C. Suitable for oxygen to ASTM G 93, ISO 15001.

Net
€19.10
excl. VAT
Item FES-8203307
Manufacturer no. NPQO-L-G14-Q6-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in L-fitting NPQO-L-G14-Q6-P10 routes tubing with an OD of 6 mm away from the G1/4 thread at an angle. Operating limits: -0.9 to 3 bar and 0 to 60 °C.

Benefits

  • From vacuum up to 3 bar operating pressure -0.9 to 3 bar across the full temperature range
  • O-ring on the screw-in stud made of FPM
  • LABS (PWIS) conformity to VDMA24364 zone III
  • Suitable for oxygen to ASTM G 93, ISO 15001
  • Biocompatible to ISO 18562
  • Nominal width 4 mm

Applications

The NPQO-L-G14-Q6-P10 connects tubing lines to valves, actuators and manifolds with a G1/4 thread. Approved medium for the NPQO-L-G14-Q6-P10: compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..

Technical data

FeatureValue
TypeNPQO-L-G14-Q6-P10
Festo part number8203307
Nominal width4 mm
Tubing insertion depth15.3 mm
Seal type on screw-in studO-ring
Mounting positionAny
DesignL-shape
ConstructionPush-pull principle
VariantsWith mounting holes
Operating pressure, full temperature range-0.9 to 3 bar
Temperature-dependent operating pressure-0.9 to 16 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Food suitabilitySee extended material information
Medium temperature0 to 120 °C
Ambient temperature0 to 60 °C
Biocompatibility to standardISO 18562
Oxygen suitability to standardASTM G 93, ISO 15001
Max. hydrocarbon contamination level550 mg/m²
Max. tightening torque9 Nm
Nominal tightening torque8 Nm
Tolerance of nominal tightening torque± 10 %
Product weight25.67 g
Pneumatic connection 1Male thread G1/4
Pneumatic connection 2For tubing OD 6 mm
Release ring colourWhite
Screw-in stud materialHigh-alloy stainless steel
Material noteRoHS compliant
Housing materialPVDF
Thread seal materialFPM
Release ring materialPVDF
O-ring materialFPM
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPVDF
Weight0.026 kg
ManufacturerFesto
Hersteller-NrNPQO-L-G14-Q6-P10
EAN4052568659394
Zolltarifnummer73072910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPVDF
BauformL-Form
ThreadG 1/4
For hose OD [mm]6
Nominal size DN [mm]4
Seal materialFPM
MediumCompressed air
Thread typeExternal thread
Medientemperatur [°C]0 bis 120
Betriebsdruck max [bar]3
Temperaturbereich0-60 °C
Temperature (max.)60
