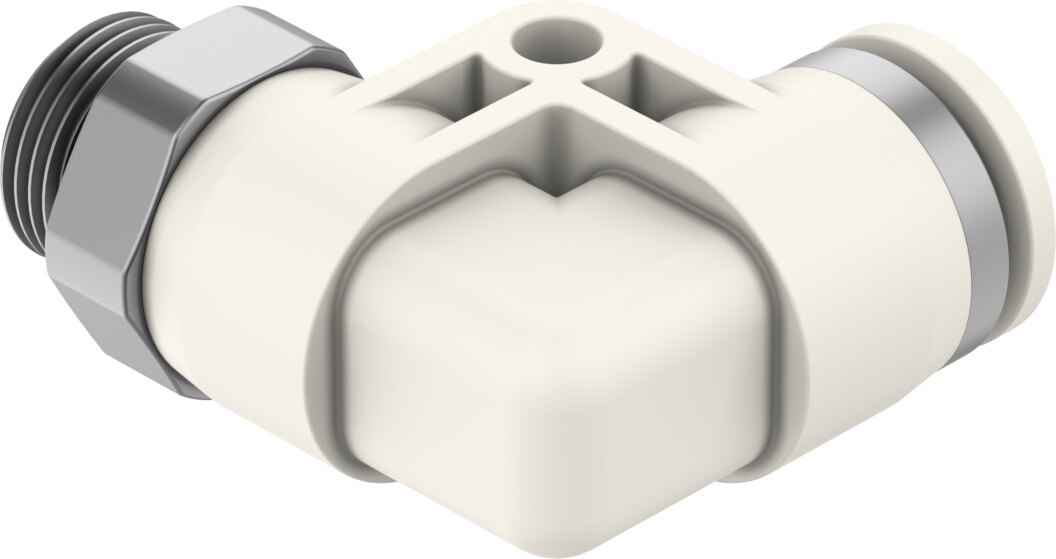

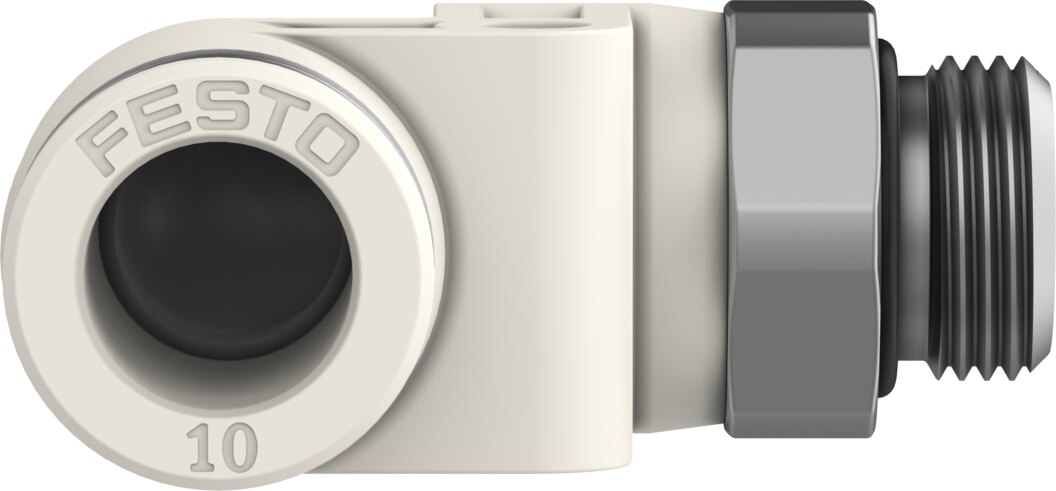

Push-in L-fitting G1/4 to tubing OD 10 mm, PVDF NPQO-L-G14-Q10-P5 - Festo 8203309
Where space next to the port is tight, the push-in L-fitting NPQO-L-G14-Q10-P5 connects tubing with an OD of 10 mm to the G1/4 thread at an angle. The NPQO-L-G14-Q10-P5 is rated for -0.9 to 3 bar operating pressure and 0 to 60 °C ambient temperature.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where space next to the port is tight, the push-in L-fitting NPQO-L-G14-Q10-P5 connects tubing with an OD of 10 mm to the G1/4 thread at an angle. The NPQO-L-G14-Q10-P5 is rated for -0.9 to 3 bar operating pressure and 0 to 60 °C ambient temperature.
Benefits
- From vacuum up to 3 bar operating pressure -0.9 to 3 bar across the full temperature range
- Housing made of PVDFcorrosion resistance class CRC 2
- Tubing seal made of FPM (fluoro rubber)
- O-ring on the screw-in stud made of FPM
- LABS (PWIS) conformity to VDMA24364 zone III
- Suitable for oxygen to ASTM G 93, ISO 15001
Applications
The NPQO-L-G14-Q10-P5 connects tubing lines to valves, actuators and manifolds with a G1/4 thread. Approved medium for the NPQO-L-G14-Q10-P5: compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..
Technical data
| Feature | Value |
|---|---|
| Type | NPQO-L-G14-Q10-P5 |
| Festo part number | 8203309 |
| Nominal width | 8 mm |
| Tubing insertion depth | 19.8 mm |
| Seal type on screw-in stud | O-ring |
| Mounting position | Any |
| Design | L-shape |
| Construction | Push-pull principle |
| Variants | With mounting holes |
| Operating pressure, full temperature range | -0.9 to 3 bar |
| Temperature-dependent operating pressure | -0.9 to 12 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Food suitability | See extended material information |
| Medium temperature | 0 to 120 °C |
| Ambient temperature | 0 to 60 °C |
| Biocompatibility to standard | ISO 18562 |
| Oxygen suitability to standard | ASTM G 93, ISO 15001 |
| Max. hydrocarbon contamination level | 550 mg/m² |
| Max. tightening torque | 9 Nm |
| Nominal tightening torque | 8 Nm |
| Tolerance of nominal tightening torque | ± 10 % |
| Product weight | 33.09 g |
| Pneumatic connection 1 | Male thread G1/4 |
| Pneumatic connection 2 | For tubing OD 10 mm |
| Release ring colour | White |
| Screw-in stud material | High-alloy stainless steel |
| Material note | RoHS compliant |
| Housing material | PVDF |
| Thread seal material | FPM |
| Release ring material | PVDF |
| O-ring material | FPM |
| Tubing seal material | FPM |
| Tubing clamp segment material | High-alloy stainless steel |
| Support ring material | PVDF |
| Weight | 0.035 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQO-L-G14-Q10-P5 |
| EAN | 4052568659417 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PVDF |
| Bauform | L-Form |
| Thread | G 1/4 |
| For hose OD [mm] | 10 |
| Nominal size DN [mm] | 8 |
| Seal material | FPM |
| Medium | Compressed air |
| Thread type | External thread |
| Medientemperatur [°C] | 0 bis 120 |
| Betriebsdruck max [bar] | 3 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
