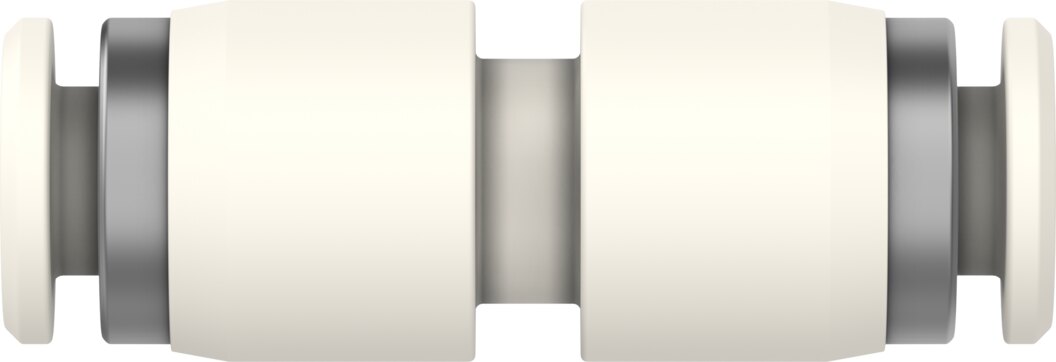

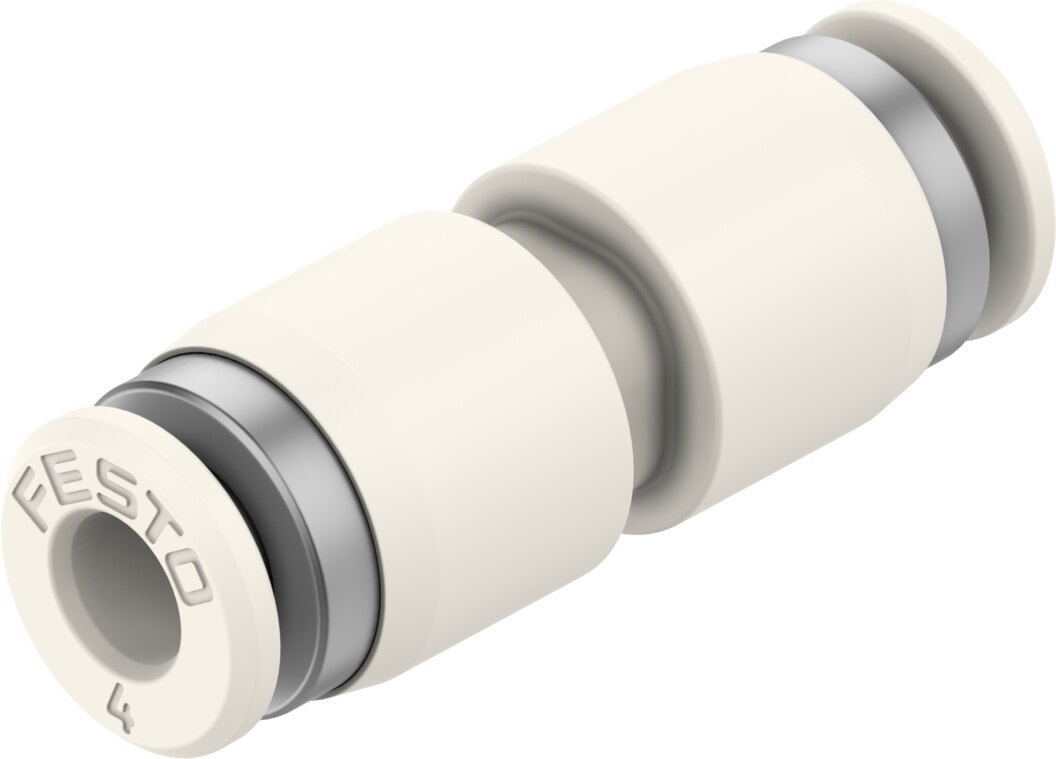

Straight push-in connector for tubing OD 4 mm, PVDF NPQO-D-Q4-E-P10 - Festo 8203312

Festo ✓ Original product Brand new

The straight push-in connector NPQO-D-Q4-E-P10 joins two tubes with an OD of 4 mm without tools. Operating limits: -0.9 to 3 bar and 0 to 60 °C. The housing is made of PVDF, corrosion resistance class CRC 2.

Net
€6.15
excl. VAT
Item FES-8203312
Manufacturer no. NPQO-D-Q4-E-P10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The straight push-in connector NPQO-D-Q4-E-P10 joins two tubes with an OD of 4 mm without tools. Operating limits: -0.9 to 3 bar and 0 to 60 °C.

Benefits

  • From vacuum up to 3 bar operating pressure -0.9 to 3 bar across the full temperature range
  • Housing made of PVDFcorrosion resistance class CRC 2
  • Tubing seal made of FPM (fluoro rubber)
  • LABS (PWIS) conformity to VDMA24364 zone III
  • Suitable for oxygen to ASTM G 93, ISO 15001
  • Biocompatible to ISO 18562

Applications

NPQO-D-Q4-E-P10 is used to extend and repair tubing lines with an OD of 4 mm. Approved medium for the NPQO-D-Q4-E-P10: compressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen..

Technical data

FeatureValue
TypeNPQO-D-Q4-E-P10
Festo part number8203312
Nominal width3 mm
Tubing insertion depth14.8 mm
Mounting positionAny
DesignStraight
ConstructionPush-pull principle
Operating pressure, full temperature range-0.9 to 3 bar
Temperature-dependent operating pressure-0.9 to 16 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4], inert gases, carbon dioxide, air, oxygen, nitrogen
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Food suitabilitySee extended material information
Medium temperature0 to 120 °C
Ambient temperature0 to 60 °C
Biocompatibility to standardISO 18562
Oxygen suitability to standardASTM G 93, ISO 15001
Max. hydrocarbon contamination level550 mg/m²
Product weight4.76 g
Pneumatic connection 1For tubing OD 4 mm
Pneumatic connection 2For tubing OD 4 mm
Release ring colourWhite
Material noteRoHS compliant
Housing materialPVDF
Release ring materialPVDF
O-ring materialFPM
Tubing seal materialFPM
Tubing clamp segment materialHigh-alloy stainless steel
Support ring materialPVDF
Weight0.006 kg
ManufacturerFesto
Hersteller-NrNPQO-D-Q4-E-P10
EAN4052568659448
Zolltarifnummer39174000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPVDF
Bauformgerade Form
For hose OD [mm]4
Nominal size DN [mm]3
Seal materialFPM
MediumCompressed air
Medientemperatur [°C]0 bis 120
Betriebsdruck max [bar]3
Temperaturbereich0-60 °C
Temperature (max.)60
